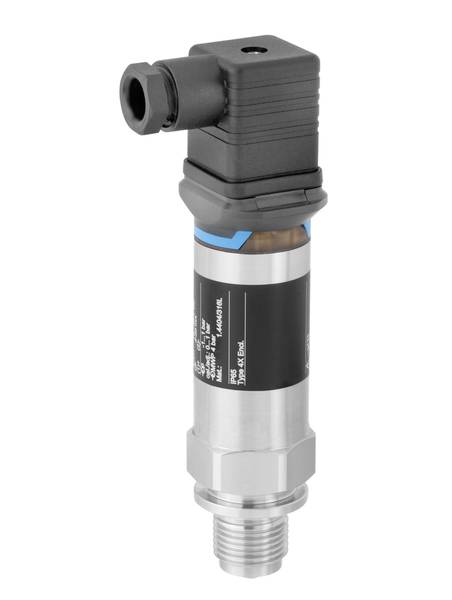

Endress+Hauser PMP11 Pressure transducer -1.0 - 25.0 bar
EAN:
Part number:
Item no:
Product type
Pressure transducer
Output
4-20 mA
Media temperature (range)
-25.0 up to 85.0 °C
Type
PMP11
Manufacturer part #
PMP11-AA1L1RBWJJ
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMP11-AA1L1RBWJJ 4-20mA plug M12, IP65 NEMA type 4X ENCL. 25bar/2.5MPa/375psi relative, overload: 10
- Approval: Ex-free range
- Output 4 to 20 mA
- Electrical connection: Connector M12, IP65 NEMA type 4X Encl.
- Sensor range: 25bar/2.5MPa/375psi relative, overload:100bar/10MPa/1500psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1/2 DIN3852, form E,316L, flush-mounted
Technical specifications
- Product type
Pressure transducer
- Output
4-20 mA
- Media temperature (range)
-25.0 up to 85.0 °C
- Type
PMP11
- Manufacturer part #
PMP11-AA1L1RBWJJ
- Max. media temperature
85.0 °C
- Media temperature (min.)
-25.0 °C
- Air pressure reading range (max.)
25.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988901 Endress+Hauser PMP11 Pressure transducer -1.0 - 25.0 bar
User & Safety Instructions 2988901 Endress+Hauser PMP11 Pressure transducer -1.0 - 25.0 bar
Description
The Cerabar PMP11 is a very compact pressure transmitter with piezoresistive sensor that can measure overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust with an accuracy of 0.5%. The PMP11 is designed to withstand the harsh conditions in the process industry with protection classes up to IP 68 and high-quality materials such as 316L. It can be used for standard applications in the process industry.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
