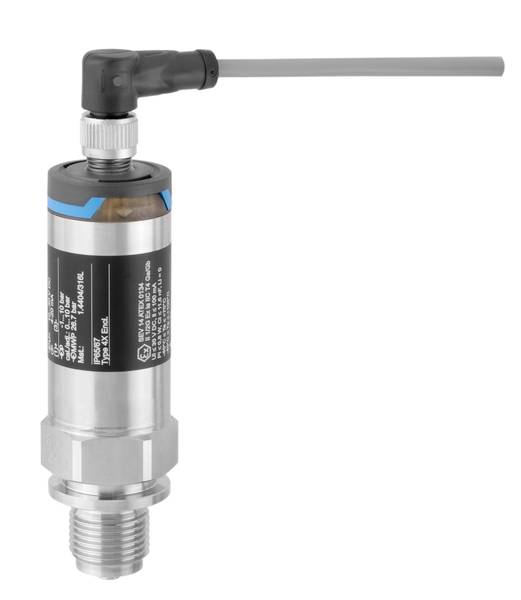

Endress+Hauser PMP21 Pressure transducer -1 - 2 bar
EAN:
Part number:
Item no:
Product type
Pressure transducer
Output
4-20 mA
Media temperature (range)
-40 up to 100 °C
Type
PMP21
Manufacturer part #
PMP21-BA1M1KBWTJ
Number
Total (€ 365.55 / piece)
€ 365.55
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMP21-BA1M1KBWTJ 4-20mA plug M12, IP65/67 NEMA type 4X ENCL. 2bar/200kPa/30psi relative, overload: 1
- Approval: ATEX II 1/2G Ex ia IIC T4 Ga/GB
- Output 4 to 20 mA
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 2bar/200kPa/30psi relative, overload:10bar/1MPa/150psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1/4 EN837, 316L
Technical specifications
- Product type
Pressure transducer
- Output
4-20 mA
- Media temperature (range)
-40 up to 100 °C
- Type
PMP21
- Manufacturer part #
PMP21-BA1M1KBWTJ
- Max. media temperature
100 °C
- Media temperature (min.)
-40 °C
- Air pressure reading range (max.)
2 bar
- Air pressure reading range (min.)
-1 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988949 Endress+Hauser PMP21 Pressure transducer -1 - 2 bar
User & Safety Instructions 2988949 Endress+Hauser PMP21 Pressure transducer -1 - 2 bar
Description
The Cerabar PMP21 is a very compact pressure transmitter with piezoresistive sensor that can measure absolute or overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust with an accuracy of 0.3%. The PMP21 is designed to withstand the harsh conditions in the process industry, with a degree of protection up to IP 68 and high-quality materials such as 316L.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
