Endress+Hauser PMP23 Pressure transducer -0.4 - 0.4 bar
EAN:
Part number:
Item no:
Product type
Pressure transducer
Output
4-20 mA
Media temperature (range)
-10.0 up to 100.0 °C
Type
PMP23
Manufacturer part #
PMP23-AA1M1FB3CJ
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMP23-AA1FB3CJ 4-20mA plug M12, IP65/67 NEMA type 4X ENCL. 400 mbar/40 kPa/6 psi relative, overload:
- Approval: Ex-free range
- Output 4 to 20 mA
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 400mbar/40kPa/6psi relative, overload:1.6bar/160kPa/24psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A
Technical specifications
- Product type
Pressure transducer
- Output
4-20 mA
- Media temperature (range)
-10.0 up to 100.0 °C
- Type
PMP23
- Manufacturer part #
PMP23-AA1M1FB3CJ
- Max. media temperature
100.0 °C
- Media temperature (min.)
-10.0 °C
- Air pressure reading range (max.)
0.4 bar
- Air pressure reading range (min.)
-0.4 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988958 Endress+Hauser PMP23 Pressure transducer -0.4 - 0.4 bar
User & Safety Instructions 2988958 Endress+Hauser PMP23 Pressure transducer -0.4 - 0.4 bar
Description

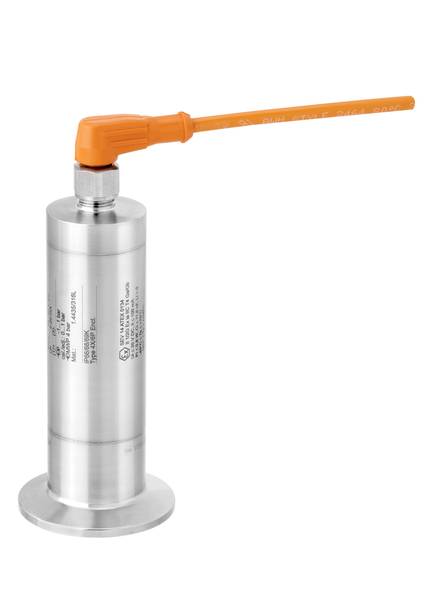

The Cerabar PMP23 is a very compact pressure transmitter for measuring absolute and overpressure in gases, vapors, liquids and dusts for hygienic applications. The PMP23 offers various EHEDG and 3 A certified hygienic process connections, FDA compliant materials, EG1935/2004 compliance, IP69 degree of protection, optional IO-Link and Ex certificates. The device can be supplied with customer-specific measuring ranges up to 40 bar.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
