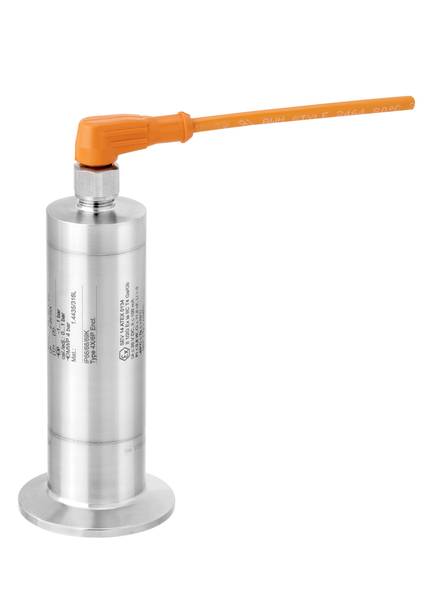

Endress+Hauser PMP23 Pressure transducer -1.0 - 1.0 bar G1
EAN:
Part number:
Item no:
Product type
Pressure transducer
Output
4-20 mA
Media temperature (range)
-10.0 up to 100.0 °C
Type
PMP23
Manufacturer part #
PMP23-AA1U1HBWQJ
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMP23-AA1U1HBWQJ 4-20mA solenoid connector ISO4400 M16, IP65 NEMA type 4X Encl. 1bar/100kPa/15psi relative,
- Approval: Ex-free range
- Output 4 to 20 mA
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor range: 1bar/100kPa/15psi relative, overload:4bar/400kPa/60psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1 sealing metal cone 316L, flush-mounted, adapter
Technical specifications
- Product type
Pressure transducer
- Output
4-20 mA
- Media temperature (range)
-10.0 up to 100.0 °C
- Type
PMP23
- Manufacturer part #
PMP23-AA1U1HBWQJ
- External thread
G1
- Max. media temperature
100.0 °C
- Media temperature (min.)
-10.0 °C
- Air pressure reading range (max.)
1.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988953 Endress+Hauser PMP23 Pressure transducer -1.0 - 1.0 bar G1
User & Safety Instructions 2988953 Endress+Hauser PMP23 Pressure transducer -1.0 - 1.0 bar G1
Description
The Cerabar PMP23 is a very compact pressure transmitter for measuring absolute and overpressure in gases, vapors, liquids and dusts for hygienic applications. The PMP23 offers various EHEDG and 3 A certified hygienic process connections, FDA compliant materials, EG1935/2004 compliance, IP69 degree of protection, optional IO-Link and Ex certificates. The device can be supplied with customer-specific measuring ranges up to 40 bar.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
