Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
Part number:
Item no:
Product type
Pressure transducer
Connector
M12
Model
Relative pressure
Pressure reading range (max.)
1 bar
Type
PMP43
Datasheet (PDF)
Number
Total (€ 1,100.00 / piece)
€ 1,100.00
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter PMP43-AAKFN6A3HABI1WWJA3 1bar, touch control + Bluetooth 4-20mA/IO-Link
- Compact dimensions
- Long-term stability 0.1% of URL/year
- Hygienic approvals (CoC ASME-BPE; 3A; EHEDG)
Technical specifications
- Sensor range: 1bar/100kPa/15psi
- Display; operation: Colour display with Touch Control + Bluetooth
- Output 4-20mA/IO-Link
- PROCESS CONNECTION: G1/2 EN837, 316L
- Print type: Relative
- Application: Process temperature max. 100oC/212oF
- Electrical connection: Connector M12, IP66/68/69 NEMA type 4X/6P
- Housing; material: Compact; 316L
- Approval: Ex-free range
- Product type
Pressure transducer
- Type
PMP43
- Connector
M12
- Model
Relative pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
IO-Link
- Pressure reading range (max.)
1 bar
- Pressure reading range
1 bar (max)
- Max. temperature
100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
Datasheet 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
Datasheet 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
User & Safety Instructions
User & Safety Instructions 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
User & Safety Instructions 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
User & Safety Instructions 3527358 Endress+Hauser Pressure transducer 1 pc(s) PMP43 1 bar (max) M12
Description

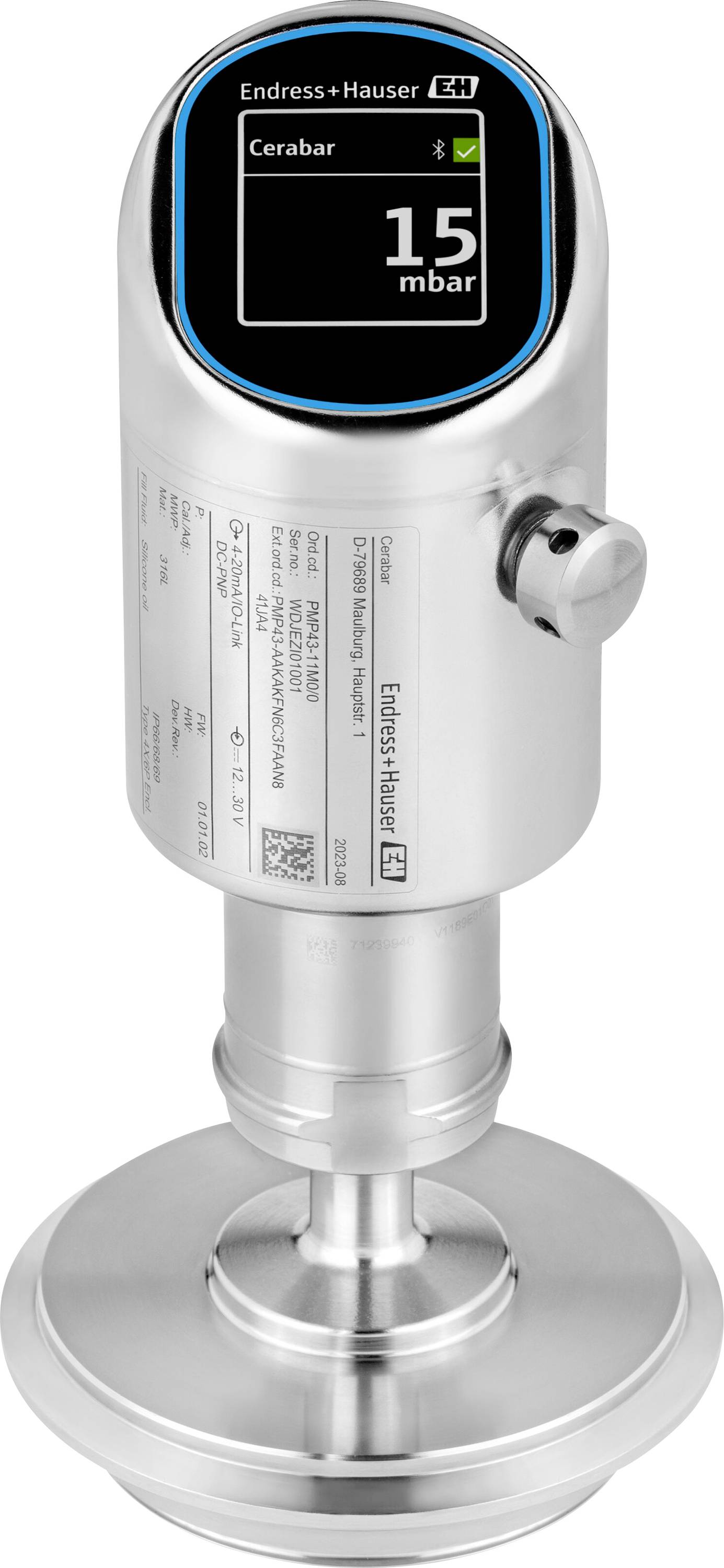

The Cerabar PMP43 is a compact pressure transmitter designed for hygienic applications where high reliability is required in confined spaces. It effectively measures and monitors absolute and over pressure from 400mbar to 100bar. The PMP43 is designed for process temperatures up to 200°C and has a degree of protection IP69.
