Buy Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar

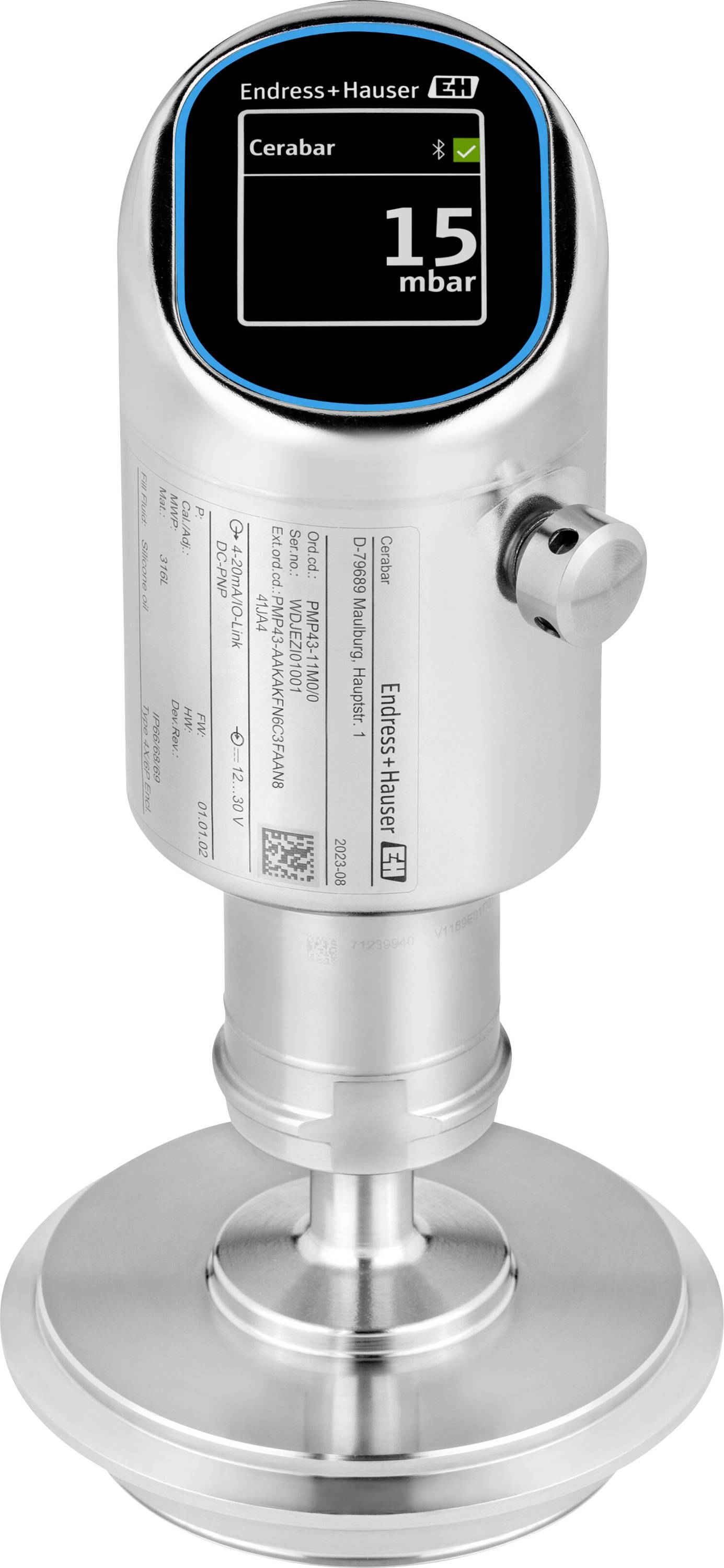

'Endress+Hauser 15 mbar pressure sensor with a digital display reading.'

Product type

Pressure transducer

Model

Relative pressure

Pressure reading range (max.)

10 bar

Type

PMP43

Outputs

IO link

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,100.00 / piece)

€ 1,100.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter PMP43-AAKFN6A3PABI2WJA3 10bar, touch control + Bluetooth 4-20mA/IO-Link

Compact dimensions
Long-term stability 0.1% of URL/year
Hygienic approvals (CoC ASME-BPE; 3A; EHEDG)

Technical specifications

Sensor range: 10bar/1MPa/150psi
Display; operation: Colour display with Touch Control + Bluetooth
Output 4-20mA/IO-Link
Process connection: M20x1.5, drilling. 3mm, 316L
Print type: Relative
Application: Process temperature max. 100oC/212oF
Electrical connection: Connector M12, IP66/68/69 NEMA type 4X/6P
Housing; material: Compact; 316L
Approval: Ex-free range

Product type: Pressure transducer

Type: PMP43

Model: Relative pressure

Outputs: IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Interfaces: IO-Link

Pressure reading range (min.): 400 mbar

Pressure reading range (max.): 10 bar

Pressure reading range: 400 mbar up to 10 bar

Max. temperature: 100 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3527356 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar

Description

The Cerabar PMP43 is a compact pressure transmitter designed for hygienic applications where high reliability is required in confined spaces. It effectively measures and monitors absolute and over pressure from 400mbar to 100bar. The PMP43 is designed for process temperatures up to 200°C and has a degree of protection IP69.

This text is machine translated.
