Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
Part number:
Item no:
Packaging type
Piece
Product type
Pressure transducer
Connector
ISO 4400 square connector
Model
Positive pressure
Pressure reading range (max.)
10 bar
Datasheet (PDF)
Number
Total (€ 1,100.00 / piece)
€ 1,100.00
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter PMP43-AAKFN6A3PABI1WBJA3 10bar, touch control + Bluetooth 4-20mA/IO-Link
- Compact dimensions
- Long-term stability 0.1% of URL/year
- Hygienic approvals (CoC ASME-BPE; 3A; EHEDG)
Technical specifications
- Sensor range: 10bar/1MPa/150psi relative, overload: 40bar/4MPa/600psi
- Output 4 to 20 mA
- Process connection: Thread ISO228 G1/4 EN837, 316L
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Calibration; unit: Customer-specific; see additional spec.
- Packaging type
Piece
- Product type
Pressure transducer
- Type
PMP43
- Connector
ISO 4400 square connector
- Model
Positive pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
Analogue amperage
- Pressure reading range (min.)
400 mbar
- Pressure reading range (max.)
10 bar
- Pressure reading range
400 mbar up to 10 bar
- Max. temperature
200 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
Datasheet 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
Datasheet 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
User & Safety Instructions
User & Safety Instructions 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
User & Safety Instructions 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
User & Safety Instructions 3527352 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 10 bar ISO 4400 square connector Piece
Description

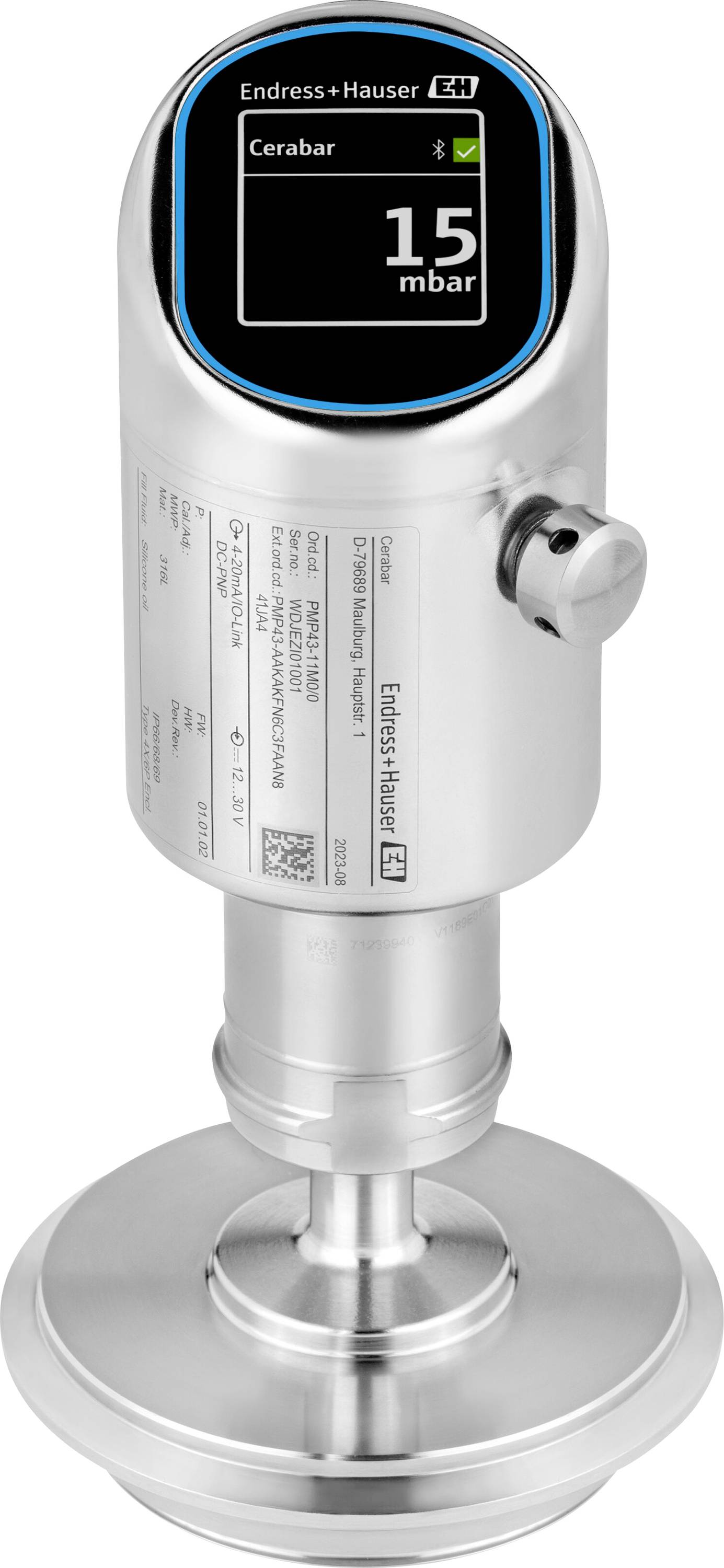

The Cerabar PMP43 is a compact pressure transmitter designed for hygienic applications where high reliability is required in confined spaces. It effectively measures and monitors absolute and over pressure from 400mbar to 100bar. The PMP43 is designed for process temperatures up to 200°C and has a degree of protection IP69.
