Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
Part number:
Item no:
Product type
Pressure transducer
Model
Relative pressure
Pressure reading range (max.)
100 bar
Type
PMP43
Outputs
Current (analogue)
Datasheet (PDF)
Number
Total (€ 1,100.00 / piece)
€ 1,100.00
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter PMP43-AAKFN6A3FABI2WJA3 400mbar Touch control + Bluetooth 4-20mA/IO-Link
- Compact dimensions
- Long-term stability 0.1% of URL/year
- Hygienic approvals (CoC ASME-BPE; 3A; EHEDG)
Technical specifications
- Sensor range: 400mbar/40kPa/6psi
- Display; operation: Colour display with Touch Control + Bluetooth
- Output 4-20mA/IO-Link
- Process connection: M20x1.5, drilling. 3mm, 316L
- Print type: Relative
- Application: Process temperature max. 100oC/212oF
- Electrical connection: Connector M12, IP66/68/69 NEMA type 4X/6P
- Housing; material: Compact; 316L
- Approval: Ex-free range
- Product type
Pressure transducer
- Type
PMP43
- Model
Relative pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
Bluetooth®
- Pressure reading range (min.)
400 mbar
- Pressure reading range (max.)
100 bar
- Pressure reading range
400 mbar up to 100 bar
- Max. temperature
100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
Datasheet 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
Datasheet 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
User & Safety Instructions
User & Safety Instructions 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
User & Safety Instructions 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
User & Safety Instructions 3527372 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar
Description

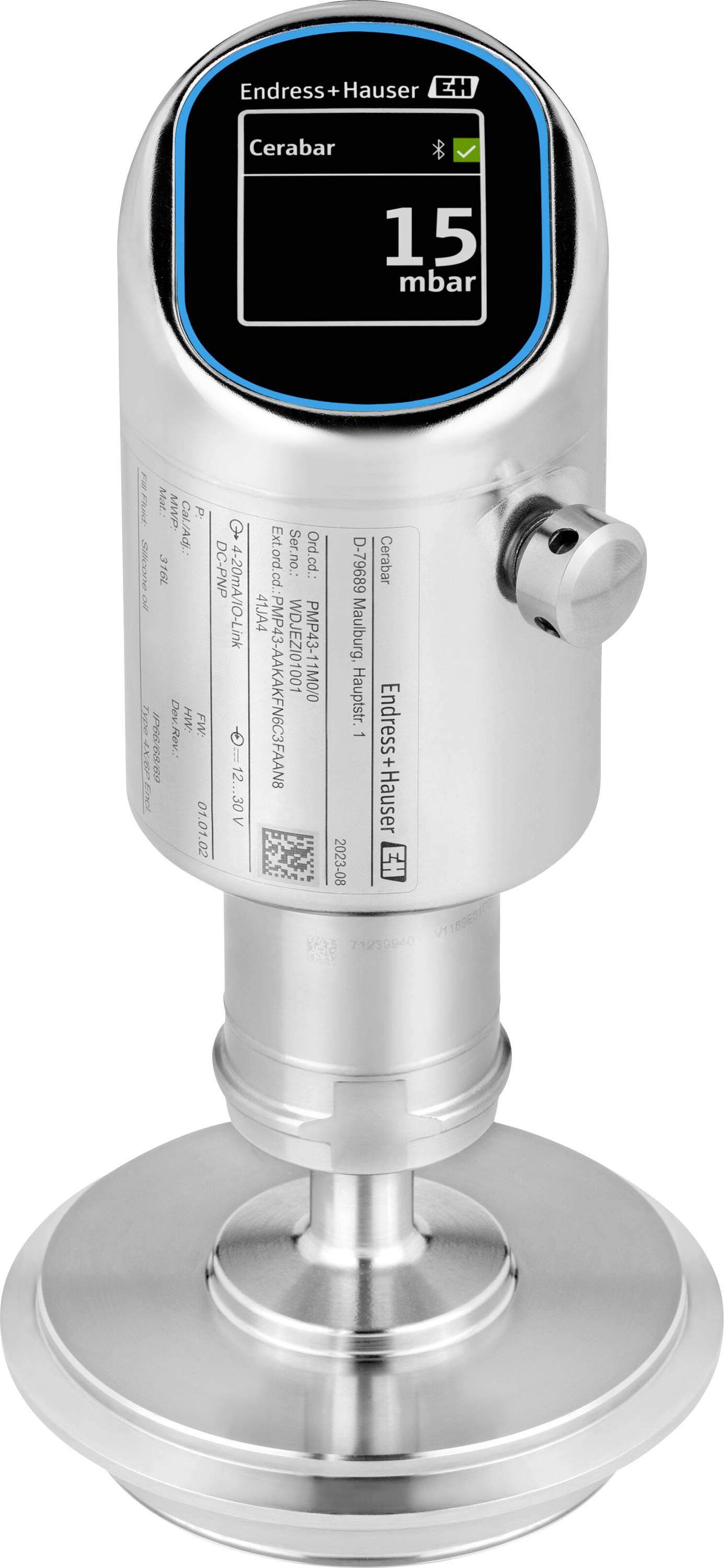

The Cerabar PMP43 is a compact pressure transmitter designed for hygienic applications where high reliability is required in confined spaces. It effectively measures and monitors absolute and over pressure from 400mbar to 100bar. The PMP43 is designed for process temperatures up to 200°C and has a degree of protection IP69.
