Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
Part number:
Item no:
Product type
Pressure transducer
Connector
M12
Pressure reading range (max.)
100 bar
Type
PMP43
Output signal (min.)
4 mA
Datasheet (PDF)
Number
Total (€ 1,100.00 / piece)
€ 1,100.00
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter PMP43-AAKFN6A3SABI1WBJA3 40bar touch control + Bluetooth 4-20mA/IO-Link
- Compact dimensions
- Long-term stability 0.1% of URL/year
- Hygienic approvals (CoC ASME-BPE; 3A; EHEDG)
Technical specifications
- Sensor range: 400mbar/40kPa/6psi
- Display; operation: Colour display with Touch Control + Bluetooth
- Output 4-20mA/IO-Link
- Process connection: G1/2, 316L, flush-mounted
- Print type: Relative
- Application: Process temperature max. 100oC/212oF
- Electrical connection: Connector M12, IP66/68/69 NEMA type 4X/6P
- Housing; material: Compact; 316L
- Approval: Ex-free range
- Product type
Pressure transducer
- Type
PMP43
- Connector
M12
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Pressure reading range (min.)
400 mbar
- Pressure reading range (max.)
100 bar
- Pressure reading range
400 mbar up to 100 bar
- Max. temperature
100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
Datasheet 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
Datasheet 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
User & Safety Instructions
User & Safety Instructions 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
User & Safety Instructions 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
User & Safety Instructions 3527373 Endress+Hauser Pressure transducer 1 pc(s) PMP43 400 mbar up to 100 bar M12
Description

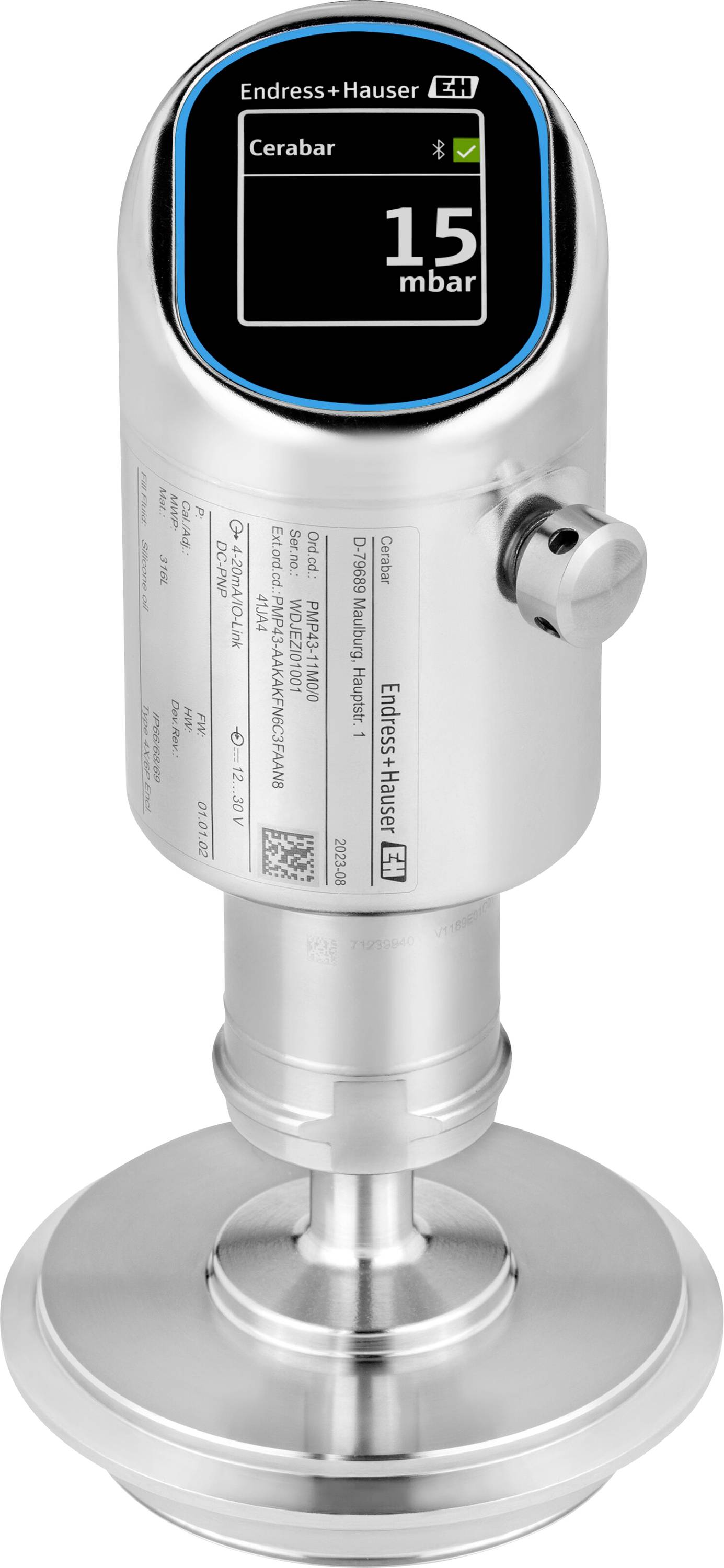

The Cerabar PMP43 is a compact pressure transmitter designed for hygienic applications where high reliability is required in confined spaces. It effectively measures and monitors absolute and over pressure from 400mbar to 100bar. The PMP43 is designed for process temperatures up to 200°C and has a degree of protection IP69.
