Endress+Hauser PTC31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
EAN:
Part number:
Item no:
Product type
Pushbutton
Media temperature (range)
-20.0 up to 100.0 °C
Type
PTC31B
Manufacturer part #
PTC31B-AA4M1PGBWTJA
Operating voltage
10 - 30 V DC
Number
Total (€ 343.70 / piece)
€ 343.70
plus VAT.
14-day return policy included
Highlights & Details
Pressure switch Ceraphant PTC31B, PTP31B/33B PTC31B-AA4M11PGBWTJA 10bar/1MPa/150psi relative, overload: 40bar/4MPa/600psi PNP, 3-conductor connector M12, IP65/
- Approval: Ex-free range
- Output PNP, 3-wire
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 10bar/1MPa/150psi relative, overload:40bar/4MPa/600psi
- Reference accuracy: Standard 0.5%
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1/4 EN837, 316L
- Seal: FKM
Technical specifications
- Product type
Pushbutton
- Media temperature (range)
-20.0 up to 100.0 °C
- Type
PTC31B
- Manufacturer part #
PTC31B-AA4M1PGBWTJA
- Operating voltage
10 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. media temperature
100.0 °C
- Media temperature (min.)
-20.0 °C
- Air pressure reading range (max.)
10.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989004 Endress+Hauser PTC31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
User & Safety Instructions 2989004 Endress+Hauser PTC31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
Description

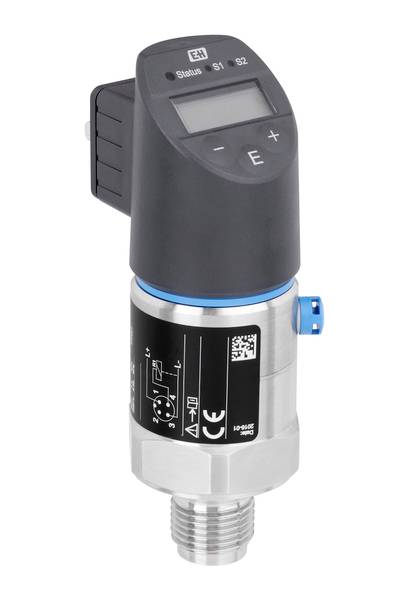

The Ceraphant PTC31B is a pressure switch with ceramic, vacuum-tight measuring cell for the safe measurement and monitoring of absolute and over pressure. This pressure switch has a compact design, is extremely stable and is resistant to high vacuum up to 0bar ABS. The IO-Link capability enables simple integration and parameterization of the device.
This text is machine translated.
This text is machine translated.
Features
- Easy function control and local information thanks to LEDs and digital display
- High process availability for vacuum and abrasive media applications
- IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.
