Endress+Hauser PTP33B Pushbutton 0.0 - 10.0 bar 10 - 30 V DC
EAN:
Part number:
Item no:
Product type
Pushbutton
Output
4-20 mA
Media temperature (range)
-10.0 up to 100.0 °C
Type
PTP33B
Manufacturer part #
PTP33B-AA7M2PGB1GJ
Number
Total (€ 474.79 / piece)
€ 474.79
plus VAT.
14-day return policy included
Highlights & Details
Push switch Ceraphant PTC31B, PTP31B/33B-AA7M2PGB1GJ 10bar/1MPa/150psi ABS, overload: 40bar/4MPa/600psi PNP + 4-20mA, IO-Link, 4-wire plug
- Approval: Ex-free range
- Output: PNP + 4-20mA, IO-Link, 4-wire
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 10bar/1MPa/150psi ABS, overload:40bar/4MPa/600psi
- Reference accuracy: Standard 0.5%
- Calibration; unit: Sensor range; mbar/bar
- PROCESS CONNECTION: DIN11851 DN25 PN40, 316L, 3A, EHEDG
Technical specifications
- Product type
Pushbutton
- Output
4-20 mA
- Media temperature (range)
-10.0 up to 100.0 °C
- Type
PTP33B
- Manufacturer part #
PTP33B-AA7M2PGB1GJ
- Operating voltage
10 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. media temperature
100.0 °C
- Media temperature (min.)
-10.0 °C
- Air pressure reading range (max.)
10.0 bar
- Air pressure reading range (min.)
0.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989128 Endress+Hauser PTP33B Pushbutton 0.0 - 10.0 bar 10 - 30 V DC
User & Safety Instructions 2989128 Endress+Hauser PTP33B Pushbutton 0.0 - 10.0 bar 10 - 30 V DC
Description

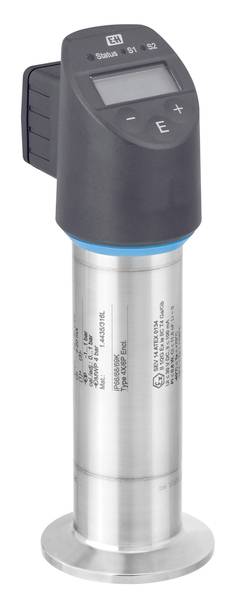

The Ceraphant PTP33B is a pressure switch with metal membrane for a safe measurement and monitoring of absolute and over pressure. The pressure switch in a compact design is extremely stable and overload protected. The PTP33B with stainless steel housing is 3-A and EHEDG approved. The IO-Link capability enables simple integration and parameterization of the device.
This text is machine translated.
This text is machine translated.
Features
- no problem
- And information on site thanks to LEDs and digital display
- Suitable for CIP/SIP cleaning
- IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.
