Endress+Hauser PTP33B Pushbutton -1.0 - 40.0 bar 10 - 30 V DC
EAN:
Part number:
Item no:
Product type
Pushbutton
Output
4-20 mA
Media temperature (range)
-10.0 up to 100.0 °C
Type
PTP33B
Manufacturer part #
PTP33B-GR7M1SGBWSJ
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
14-day return policy included
Highlights & Details
Pressure switch Ceraphant PTC31B, PTP31B/33B PTP33B-GR7M1SGBWSJ 40bar/4MPa/600psi relative, overload: 160bar/16MPa/2400psi PNP + 4-20mA, IO-Link, 4-line
- Approval: Ex-free area + EAC marking
- Output: PNP + 4-20mA, IO-Link, 4-wire
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 40bar/4MPa/600psi relative, overload:160bar/16MPa/2400psi
- Reference accuracy: Standard 0.5%
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1 seal O-ring 316L, flush-mounted, adapter, 3A, EHEDG
Technical specifications
- Product type
Pushbutton
- Output
4-20 mA
- Media temperature (range)
-10.0 up to 100.0 °C
- Type
PTP33B
- Manufacturer part #
PTP33B-GR7M1SGBWSJ
- Operating voltage
10 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. media temperature
100.0 °C
- Media temperature (min.)
-10.0 °C
- Air pressure reading range (max.)
40.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989135 Endress+Hauser PTP33B Pushbutton -1.0 - 40.0 bar 10 - 30 V DC
User & Safety Instructions 2989135 Endress+Hauser PTP33B Pushbutton -1.0 - 40.0 bar 10 - 30 V DC
Description

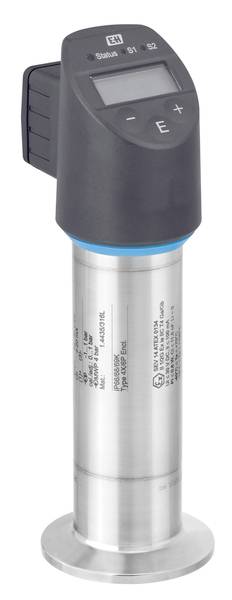

The Ceraphant PTP33B is a pressure switch with metal membrane for a safe measurement and monitoring of absolute and over pressure. The pressure switch in a compact design is extremely stable and overload protected. The PTP33B with stainless steel housing is 3-A and EHEDG approved. The IO-Link capability enables simple integration and parameterization of the device.
This text is machine translated.
This text is machine translated.
Features
- no problem
- And information on site thanks to LEDs and digital display
- Suitable for CIP/SIP cleaning
- IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.
