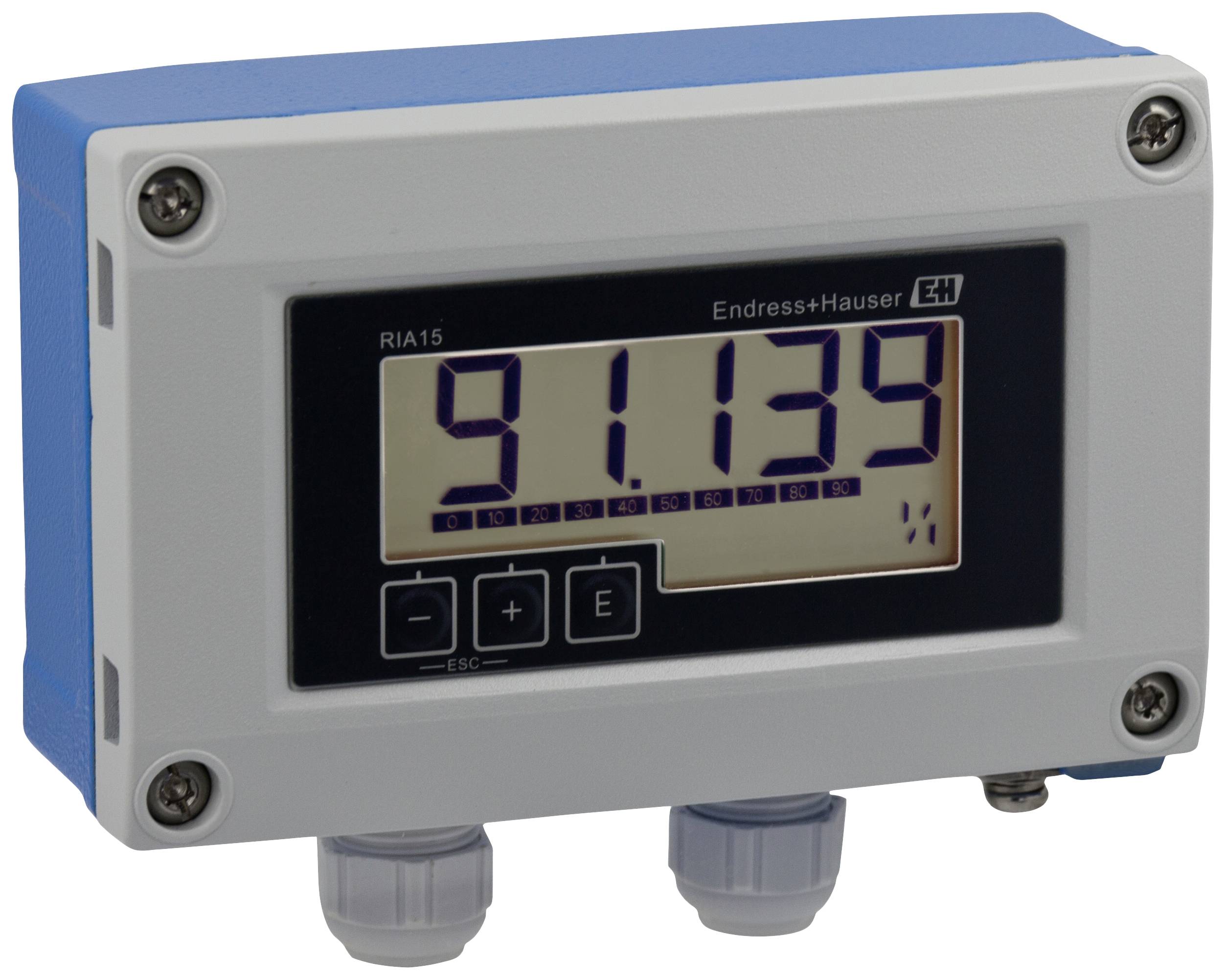

Endress+Hauser RIA15-AAB1 RIA15 Display 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Loop-fed display for 4-20 mA
- Material housing: Aluminium
- LCD display 17 mm
- Input type: Analogue input 4-20 mA
- Housing design: Field housing
- Approval: Non-explosive area
Technical specifications
- Product type
Display
- Compatible with
Endress+Hauser
- Width
131 mm
- Height
81.50 mm
- Depth
55.50 mm
- Type
RIA15
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886356 Endress+Hauser RIA15-AAB1 RIA15 Display 1 pc(s)
User & Safety Instructions 2886356 Endress+Hauser RIA15-AAB1 RIA15 Display 1 pc(s)
Description

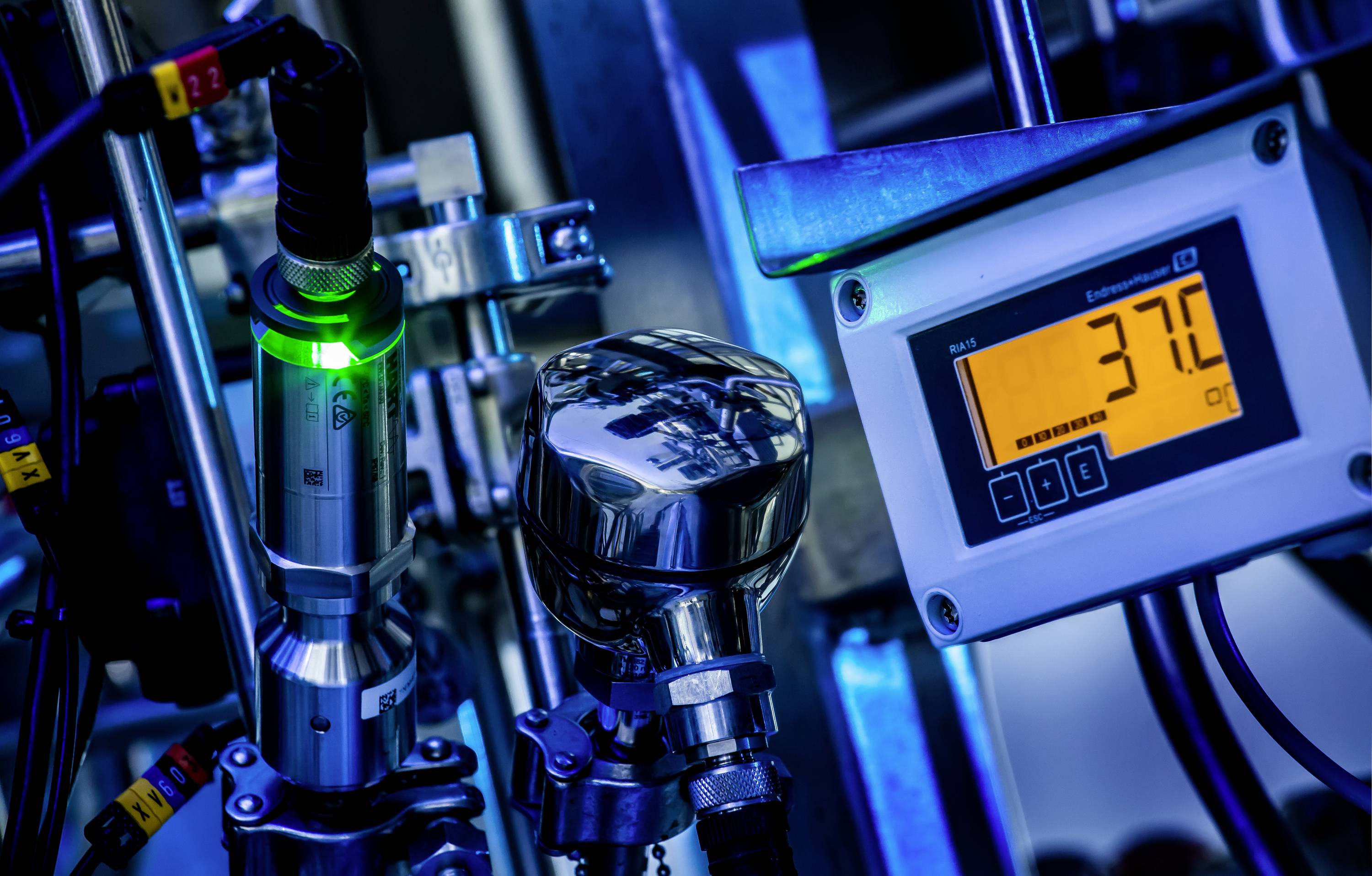

The loop-fed RIA15 process indicator displays 4 to 20 mA measured values or optionally up to four HART® process variables of a sensor in all sectors. The RIA15 has a 5 digit measuring value display with 17 mm digit height with dimension, bar graph and switchable background lighting and can be used as an on-site display in the control panel installation housing or in the field housing.
This text is machine translated.
This text is machine translated.
Features
- Simple configuration and parameter assignment on site with 3 buttons on front.
- No external power supply required, the device is supplied directly from the current loop.
- Perfect solution for measurement points that are difficult to access, especially in case of long wiring distances/ voltage drop < 1V
- Queries up to 4 different measured values in an ongoing process and displays them (via HART protocol).
