1/3
Endress+Hauser RN42 RN42-AA1AU 1 pc(s)
EAN:
Part number:
Item no:
Type
RN42
Connection
Screw terminal
Output (current)
20 mA
Input signal (current)
20 mA
Content
1 pc(s)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
14-day return policy included
Highlights & Details
Feeding isolator
- Approval: Non-explosive area
- Electrical connection: Screw terminals
- Channel 1 channel
Technical specifications
- POWER SUPPLY 24 - 230 V AC/DC
- Type
RN42
- Connection
Screw terminal
- Output (current)
20 mA
- Input signal (current)
20 mA
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886370 Endress+Hauser RN42 RN42-AA1AU 1 pc(s)
User & Safety Instructions 2886370 Endress+Hauser RN42 RN42-AA1AU 1 pc(s)
Description

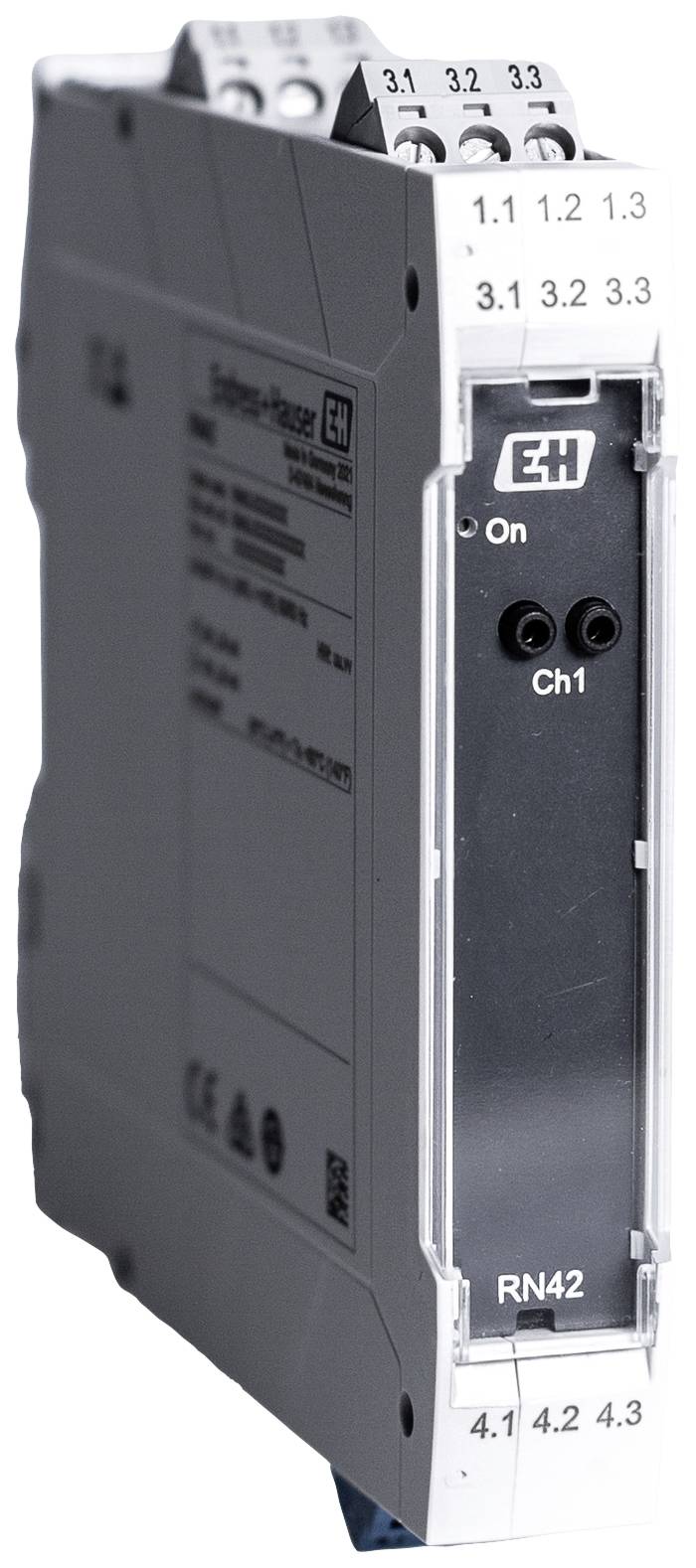

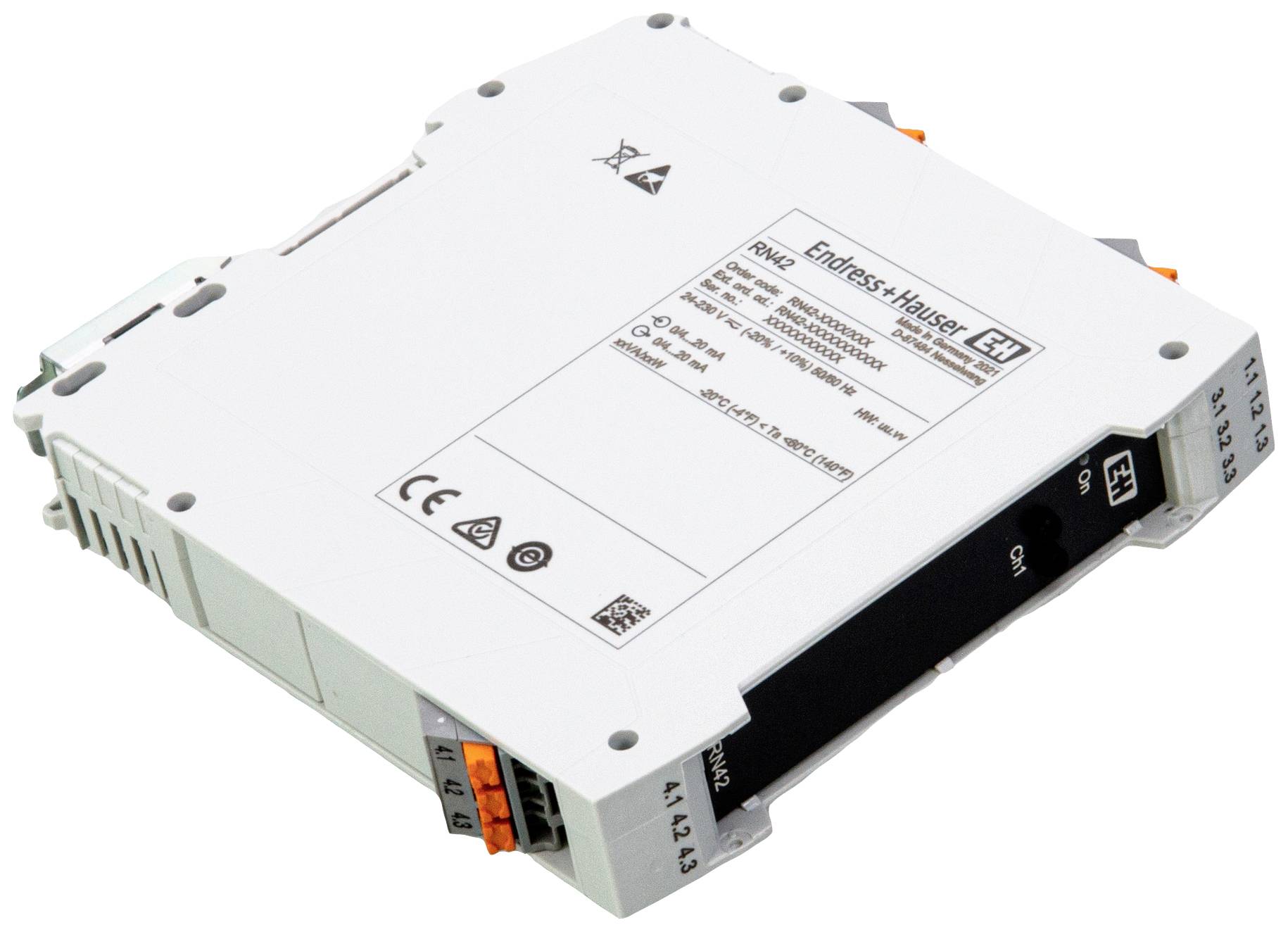

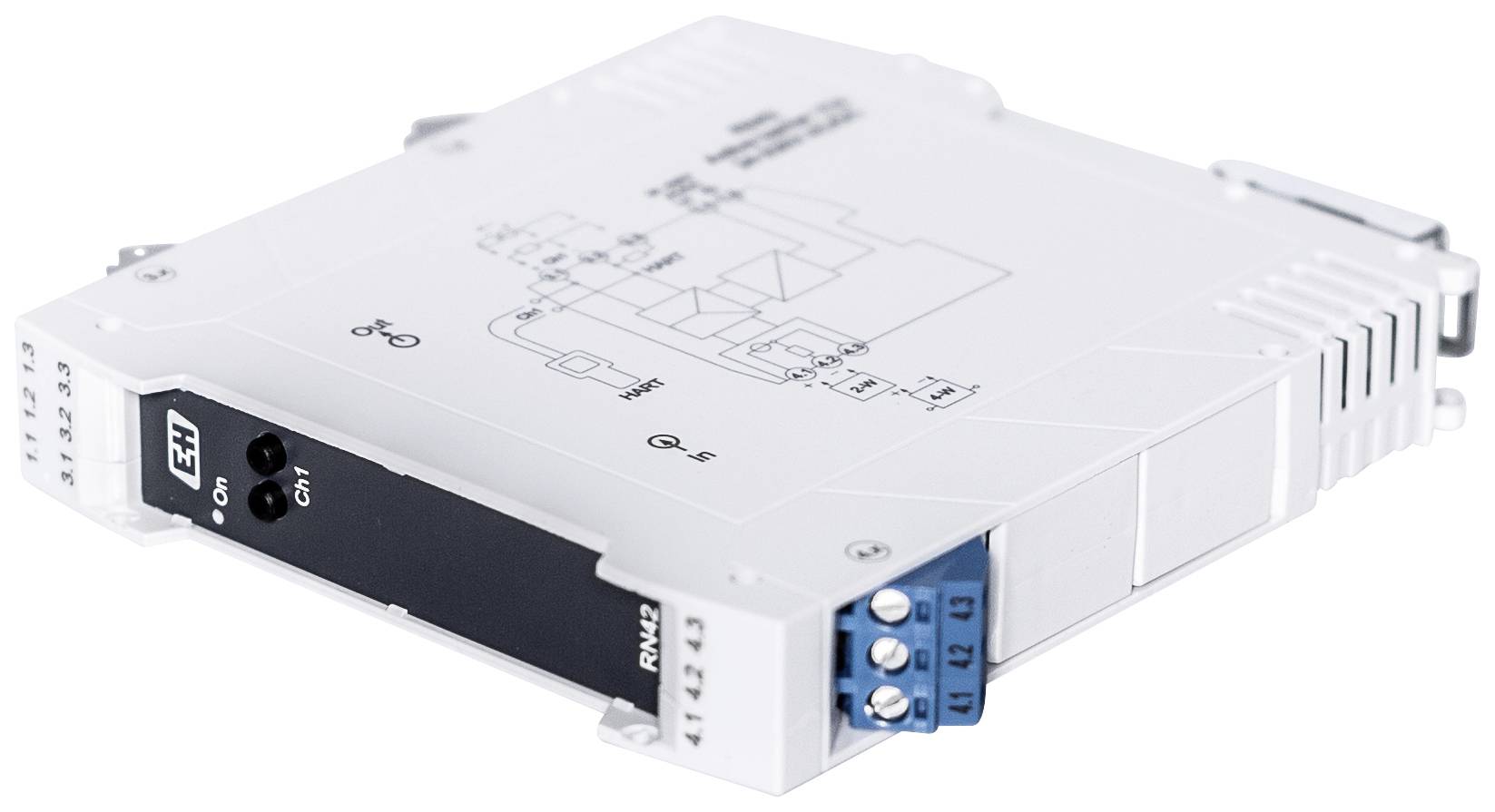

The RN42 is a 1-channel active barrier with a wide-range power supply unit for safe isolation of 4 to 20 mA standard signal circuits, HART-transparent. The device has an active / passive current input, to which a 2- or 4-conductor-transmitter can be directly connected The output of the device can be operated actively or passively. The current signal is then available at pluggable screw-in or optional push-in terminals for the PLC/controller or for further instrumentation.
This text is machine translated.
This text is machine translated.
Features
- Active barrier, wide-range power supply
- 1-channel
- Compact casing
- Quick and easy wiring
