Endress+Hauser RSG35
EAN:
Part number:
Item no:
Number
Total (€ 1,457.98 / piece)
€ 1,457.98
plus VAT.
14-day return policy included
Highlights & Details
Graphic data manager screen recorder RSG35-B1B 4x universal 100-230VAC (+/-10%) RS232/485 + Ethernet RJ45 + USB
- Signal input 4x universal
- Power supply 100-230VAC (+/-10%)
- RS232/485 + Ethernet RJ45 + USB
Technical specifications
- Type
RSG35
- Display technology
LCD
- Max. operating voltage
250 V AC
- Min. operating voltage
90 V AC
- Features
Colour display
- Interfaces
USB
- Interfaces
RS485
USB
RS232C
Ethernet
RJ45 socket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989289 Endress+Hauser RSG35
User & Safety Instructions 2989289 Endress+Hauser RSG35
Description

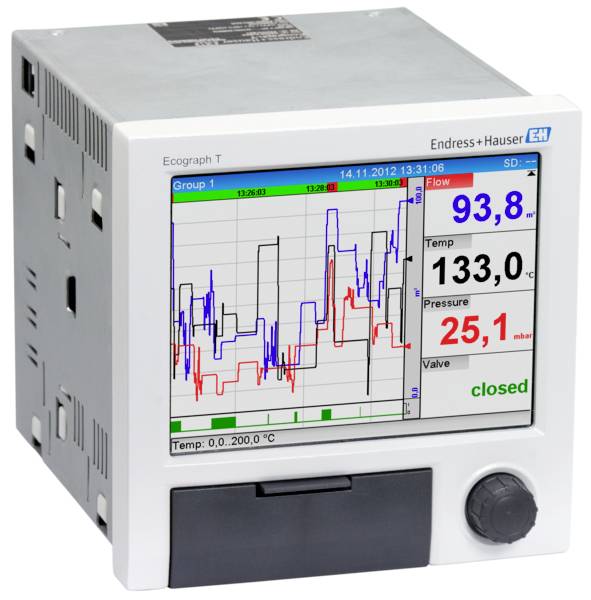

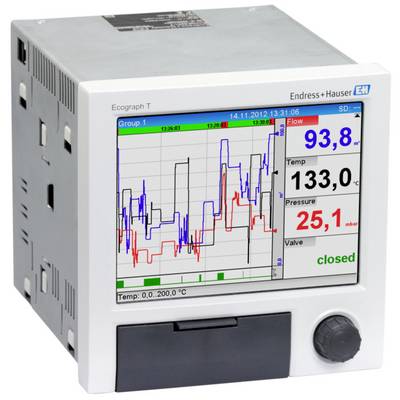

The Ecograph T RSG35 is a universal data manager that captures, displays and monitors all analogue or digital input signals. The measured values are saved safely and the limit values are monitored. On-site, the Navigator provides intuitive operation. Remote configuration and control at the PC is also possible thanks to the integrated web server - additional software does not need to be installed.
This text is machine translated.
This text is machine translated.
Features
- The data collected is stored tamper-proof in internal memory or on a separate SD card.
- Intuitive operation via the Navigator (rotary/push button) on site or user-friendly operation on the PC via the integrated web server
- Versatile with up to 12 universal inputs compatible with the most common measuring signals.
- Programmable e-mail notification in the event of alarms and violations of limit values
- 5.7" TFT monitor for displaying measured values in up to four groups, with digital, bar and curve display.
