Endress+Hauser Temperature sensor TMT182B-AAA1AABA1+B2CA
Part number:
Item no:
Product type
Temperature sensor
Type
TMT182B
Manufacturer part #
TMT182B-AAA1AABA1+B2CA
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details
Thermometer TMR35-U1BBDB1AAA 50 mm, 6mm, without clamp DN25-38, 1-1/2, 316L, 3-a, DN25-40 4-20mA; 0...+150oC
- Accurate, reliable and long-term stable temperature measurements
- Plug and Play: Pre-configured at the factory
- Programmable via the CDI-connection of the device, free software available
- Intelligent diagnostics according to NAMUR NE 107, measuring transducer and sensor monitoring
- Easy installation: New-generation screw terminals for faster wiring
Technical specifications
- Insertion length L; Dia. D; Protection tube: 50 mm (1.97"); 6mm (0.25"); without
- Process connection: Clamp > NA Connect ISO2852 DN25-38, 1-1/2, 316L, 3-A, DIN32676 DN25-40
- Output; measuring range: 4-20mA; 0...+150oC (+32...+302oF)
- Electrical connection: Connector M12, IP66/67/69K
- Approval: Ex-free range
- Product type
Temperature sensor
- Type
TMT182B
- Manufacturer part #
TMT182B-AAA1AABA1+B2CA
Documents & Downloads
Datasheet
Datasheet 3527466 Endress+Hauser Temperature sensor TMT182B-AAA1AABA1+B2CA
Datasheet 3527466 Endress+Hauser Temperature sensor TMT182B-AAA1AABA1+B2CA
User & Safety Instructions
User & Safety Instructions 3527466 Endress+Hauser Temperature sensor TMT182B-AAA1AABA1+B2CA
Description

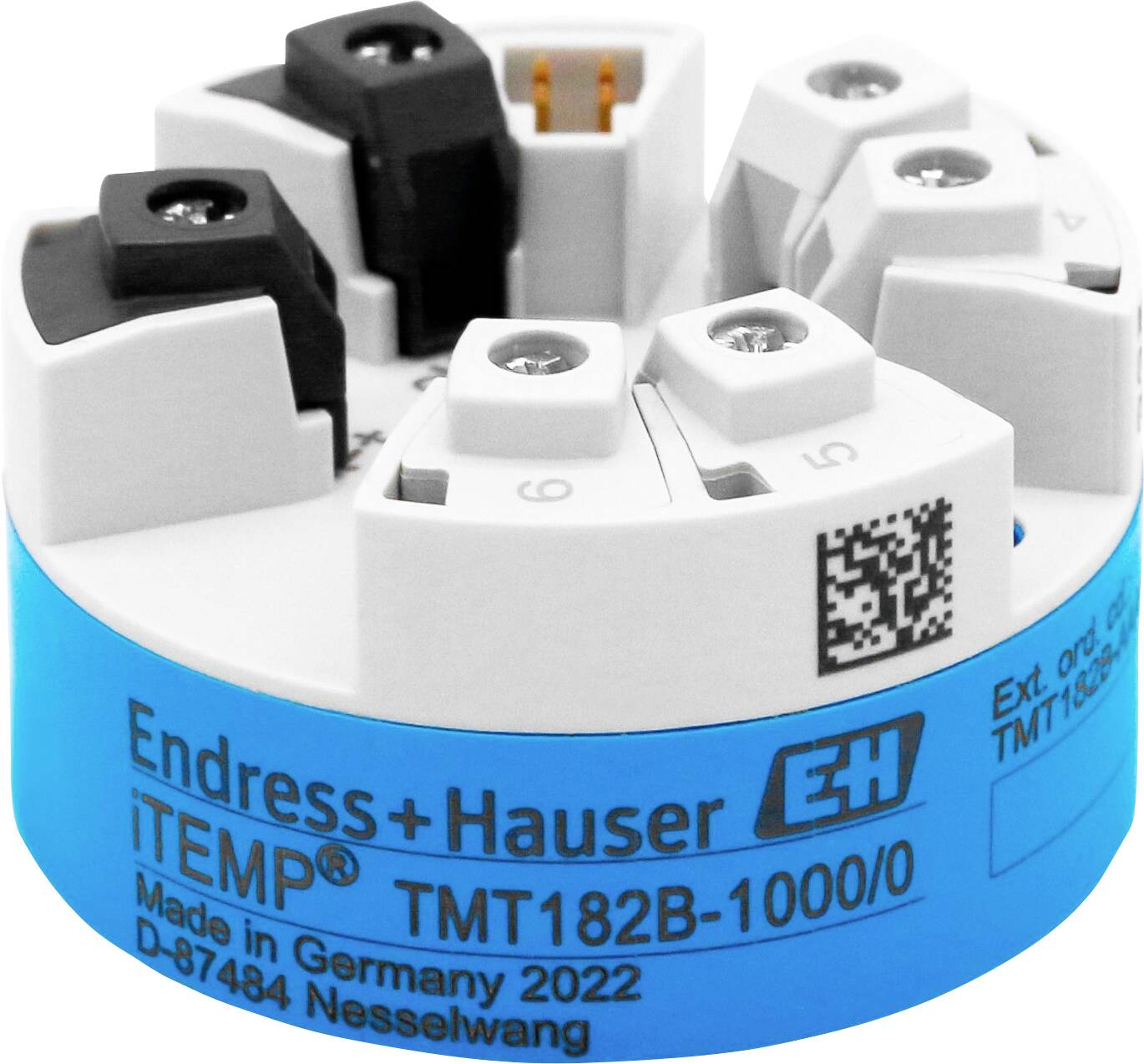

The ITemp TMT182B is a high-precision 4-20 mA and HART® temperature transmitter for non-Ex areas with universal input. The device has a measuring range from -200°C to 850°C.
