Endress+Hauser Thermometer TM311-AAC0BD2BBB4A1-ISO Sensor type Pt100 Temperature reading range-50 up to +200 °C Calibrat
Part number:
Item no:
Product type
Thermometer
Temperature reading range
-50 up to +200 °C
Sensor type
Pt100
Sensor
Tipps Sens
Type
TM311-AAC0BD2BBB4A1-ISO
Highlights & Details

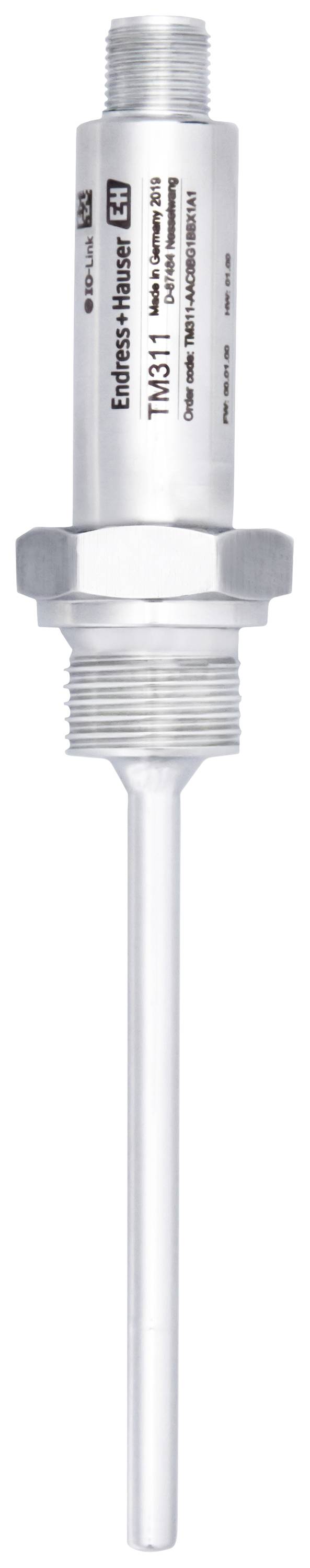

Compact thermometer TM311-AAC0BD2BBB4A1 TipSens. -50 to +200 °C IO-Link/4-20 mA
- Output: IO-Link/4-20 mA, 0 to +150 °C
- Immersion length 30 mm
- Process connection: ClampNA Connect ISO2852, DN25 - 38 (1-1.5"), Form B
- Approval: Non-explosive area
- Accuracy class A according to IEC 60751
Technical specifications
- Product type
Thermometer
- Temperature reading range
-50 up to +200 °C
- Sensor
Tipps Sens
- Sensor type
Pt100
- Type
TM311-AAC0BD2BBB4A1-ISO
- Manufacturer part #
TM311-AAC0BD2BBB4A1-ISO
- Probe length
30 mm
- Temperature reading range (max.)
+200 °C
- Temperature reading range (min.)
-50 °C
ISO standards
Description
The iTHERM CompactLine TM311 is a thermometer that enables accurate and rapid process temperature measurements in hygienic and aseptic applications. It is available with Pt100 or TipSens temperature sensors, with response times of only 1.5 s (t90) for optimal process control. The sensor is very accurate even for short immersion lengths.
This text is machine translated.
This text is machine translated.
Features
- The version with iTHERM TipSens offers best-in-class response times with a T90 time of 1.5 seconds
- The version with iTHERM TipSens ensures highly accurate measurement with short immersion lengths, for example in small pipes in the food and beverage industry
- Quick installation and easy start-up thanks to compact dimensions for installation in cramped spaces
- 4-20 mA AND IO-Link in one device. Perfect for saving costs for storage
