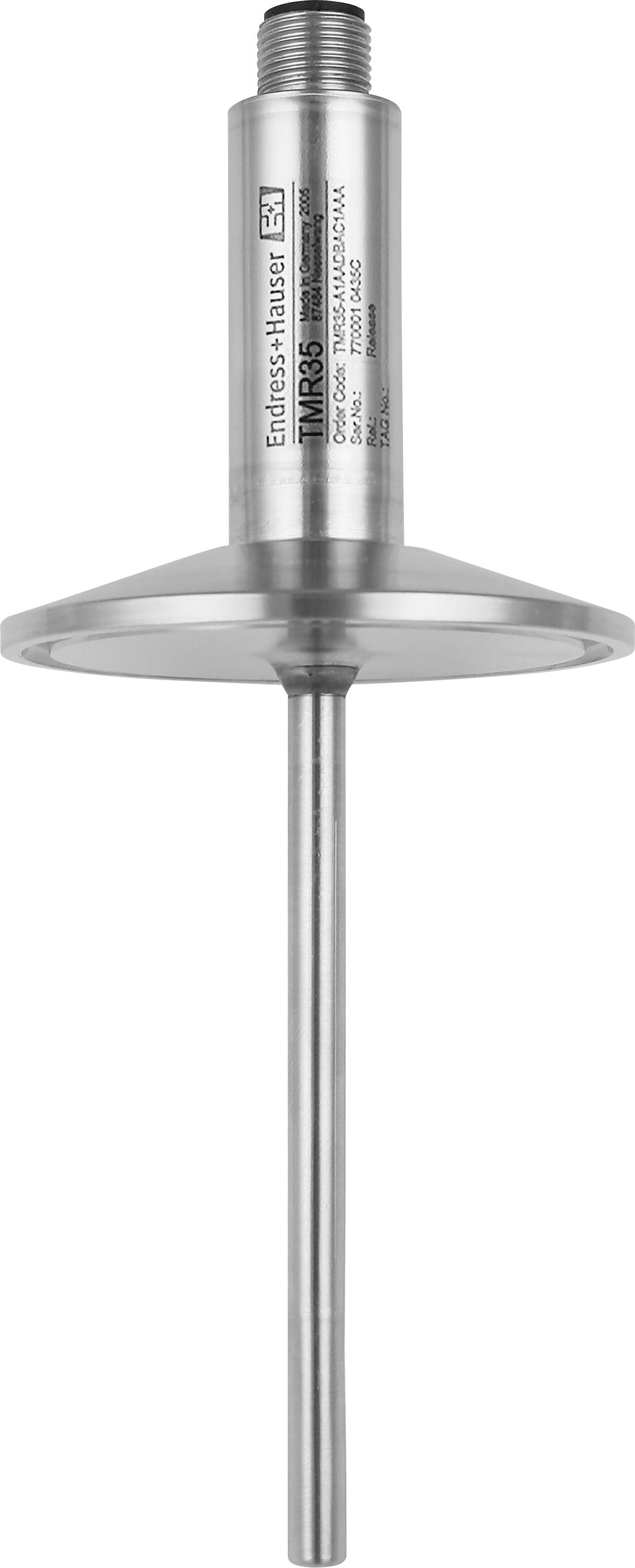

Endress+Hauser Thermometer TMR35-A1BBDBAB1AAA Temperature reading range-50 up to 200 °C
Part number:
Item no:
Product type
Thermometer
Temperature reading range
-50 up to 200 °C
Type
TMR35
Manufacturer part #
TMR35-A1BBDBAB1AAA
Temperature reading range (max.)
200 °C
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
Thermometer TMR35-A1BADBAB1AAA 50 mm, 6mm, without clamp, DN25-38, 1-1/2, 316L, 3-a, DN25-40 4-20mA; 0...+150oC
- Compact design made entirely of stainless steel
- Extremely short response time
- High accuracy even at short entry lengths
Technical specifications
- Insertion length L; Diameter D: 100 mm; 6mm (3.94"; 0.25")
- Process connection G1/4 External thread ISO228, 316L
- Output; measuring range: 4-20mA; -50...+150oC (-58...+302oF)
- Electrical connection: Connector M12, IP66/67/69K
- Approval: Ex-free range
- Product type
Thermometer
- Temperature reading range
-50 up to 200 °C
- Type
TMR35
- Manufacturer part #
TMR35-A1BBDBAB1AAA
- Temperature reading range (max.)
200 °C
- Temperature reading range (min.)
-50 °C
Documents & Downloads
Datasheet
Datasheet 3527463 Endress+Hauser Thermometer TMR35-A1BBDBAB1AAA Temperature reading range-50 up to 200 °C
Datasheet 3527463 Endress+Hauser Thermometer TMR35-A1BBDBAB1AAA Temperature reading range-50 up to 200 °C
Datasheet 3527463 Endress+Hauser Thermometer TMR35-A1BBDBAB1AAA Temperature reading range-50 up to 200 °C
User & Safety Instructions
User & Safety Instructions 3527463 Endress+Hauser Thermometer TMR35-A1BBDBAB1AAA Temperature reading range-50 up to 200 °C
Description
EasyTemp TMR35 is a compact thermometer that can be used in hygienic applications for measuring temperatures from -50 °C to +150 °C or up to +200 °C with neck pipe. A variety of hygienic process connections ensure high flexibility.
