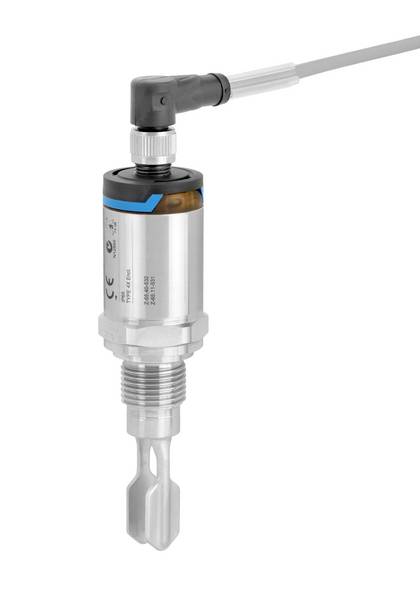

Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA4M3BAWSJ PNP
EAN:
Part number:
Item no:
Product type
Vibronic level gauge
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 247.90 / piece)
€ 247.90
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Liquiphant FTL31/33 FTL31-AA4M3BAWSJ 10-30VDC; 3-conductor PNP thread ISO228 G1, 316L, installation > accessories welding adapter connector M12, IP65/67 NEMA type 4X Encl.
- Approval: Ex-free range
- Power supply; output: 10-30VDC; 3-wire PNP
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor design: Max. Process temperature 150oC/302oF
- Sensor type: Short-pipe version 316L Ra<3.2um/126uin
- Process connection: Thread ISO228 G1, 316L, mounting > accessories welded adapter
Technical specifications
- Product type
Vibronic level gauge
- Type
FTL31
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Non-corrosive steel
- Model
Capacitive
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP65
IP67
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988541 Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA4M3BAWSJ PNP
User & Safety Instructions 2988541 Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA4M3BAWSJ PNP
Description
The Liquiphant FTL31 is a vibrato limit switch for liquids. The device is used for overfill protection or as dry-run protection for pumps in cleaning systems. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The optional IO-Link capability enables a simple and time-saving configuration.
This text is machine translated.
This text is machine translated.
Features
- The FTL31 operates in areas where other measurement principles are not suitable due to conductivity, adhesion, turbulence, flow conditions or air bubbles
- The smallest vibration sensor on the market
