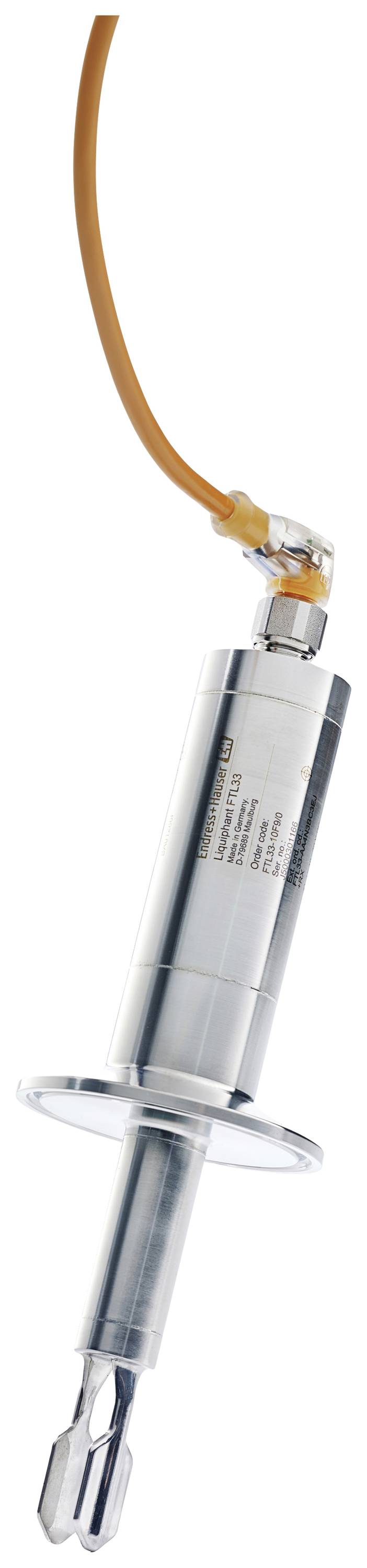

Endress+Hauser Vibronic point level switch FTL33 FTL33-AA4M3AB3CJ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Vibronic point level switch
Packaging type
Piece
Type
FTL33
Outputs
PNP
IP rating
IP65/67
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Vibrant liquid level switch LiquiPant FTL33-AA4M3ABW5J 10-30 V/DC; 3-wire PNP plug M12, IP65/67 NEMA type 4X ENCL.
- Output type: Binary output (open collector, electronic)
- Supply mode 3 wire
- Type of connection: Triple terminal
- Nominal diameter: DN 25-38 (1-1/2")
- Power supply output 10-30 V/DC; 3-wire PNP
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
Technical specifications
- Medium density min.: >0.7 g/cm³
- Packaging type
Piece
- Product type
Vibronic point level switch
- Type
FTL33
- Outputs
PNP
IP65/67
- Content
1 pc(s)
- RoHS-compliant
Yes
- Switching voltage
30 V DC
- Max. temperature
+150 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886155 Endress+Hauser Vibronic point level switch FTL33 FTL33-AA4M3AB3CJ 1 pc(s)
User & Safety Instructions 2886155 Endress+Hauser Vibronic point level switch FTL33 FTL33-AA4M3AB3CJ 1 pc(s)
Description
The Liquiphant FTL33 is a vibrato limit switch for liquids in hygienic applications. The FTL33 has been specially developed for applications in the food and beverage industry and is used for over-fill protection or as dry-run protection for pumps. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The IO-Link capability enables a simple and time-saving configuration.
