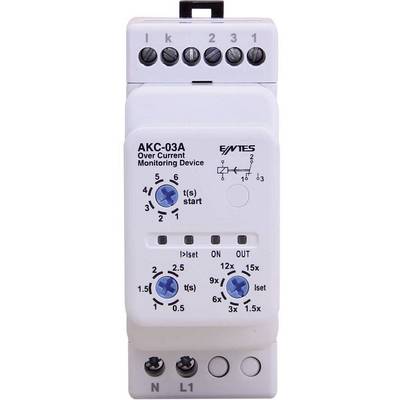

ENTES AKC-03A current monitoring relay 101345
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Monitoring relay
Functions
Current
Contact type
1 change-over
Switching current (max.)
8 A
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 84.03
-16 %
€ 70.58
plus VAT.
Only 4 Piece(s) available
Highlights & Details
AKC-03A current monitoring relay with CT-25 current transformer
- Operating voltage 230 V/AC
- Setting range 1.5 to 60 A (with converter)
- Overcurrent protection
- Switch-on delay, switch-off delay
- 1 8A relay output
Technical specifications
- Power supply: 1-phase, 2-conductors
- Mounting: DIN rail
- Connection: Screw clamps
- Packaging type
Piece
- Product type
Monitoring relay
- Type
AKC-03A
- Functions
Current
- Operating voltage
230 V AC
- Amperage adjustment range (min.)
1.5 A
- Amperage adjustment range (max.)
60 A
- Adjustment range (amperage)
1.5 - 60 A
- Contact type
1 change-over
- Switching current (max.)
8 A
- Connection
Screw terminal
- Min. temperature
-5 °C
- Max. temperature
+55 °C
- Width
35 mm
- Height
90 mm
- Depth
58 mm
- Dim
(W x H x D) 35 x 90 x 58 mm
- Content
1 pc(s)
- Type
Current monitoring relay
- Adjustment range
1.5 – 60 A
- Type
AKC-03A
- Temperature range
-5 – + 55 °C °C
- Operating voltage
(±10 %) 230 V/AC
Documents & Downloads
Datasheet
Datasheet 507161 ENTES AKC-03A current monitoring relay 101345
User & Safety Instructions
User & Safety Instructions 507161 ENTES AKC-03A current monitoring relay 101345
Description
The current monitoring relay monitors the current of the motor or of the monitored device and switches off if the measured current exceeds the set range.
Features
- Overcurrent protection
- Switch-on delay
- Switch-off delay
