Buy ENTES EMM Digital rack-mount meter

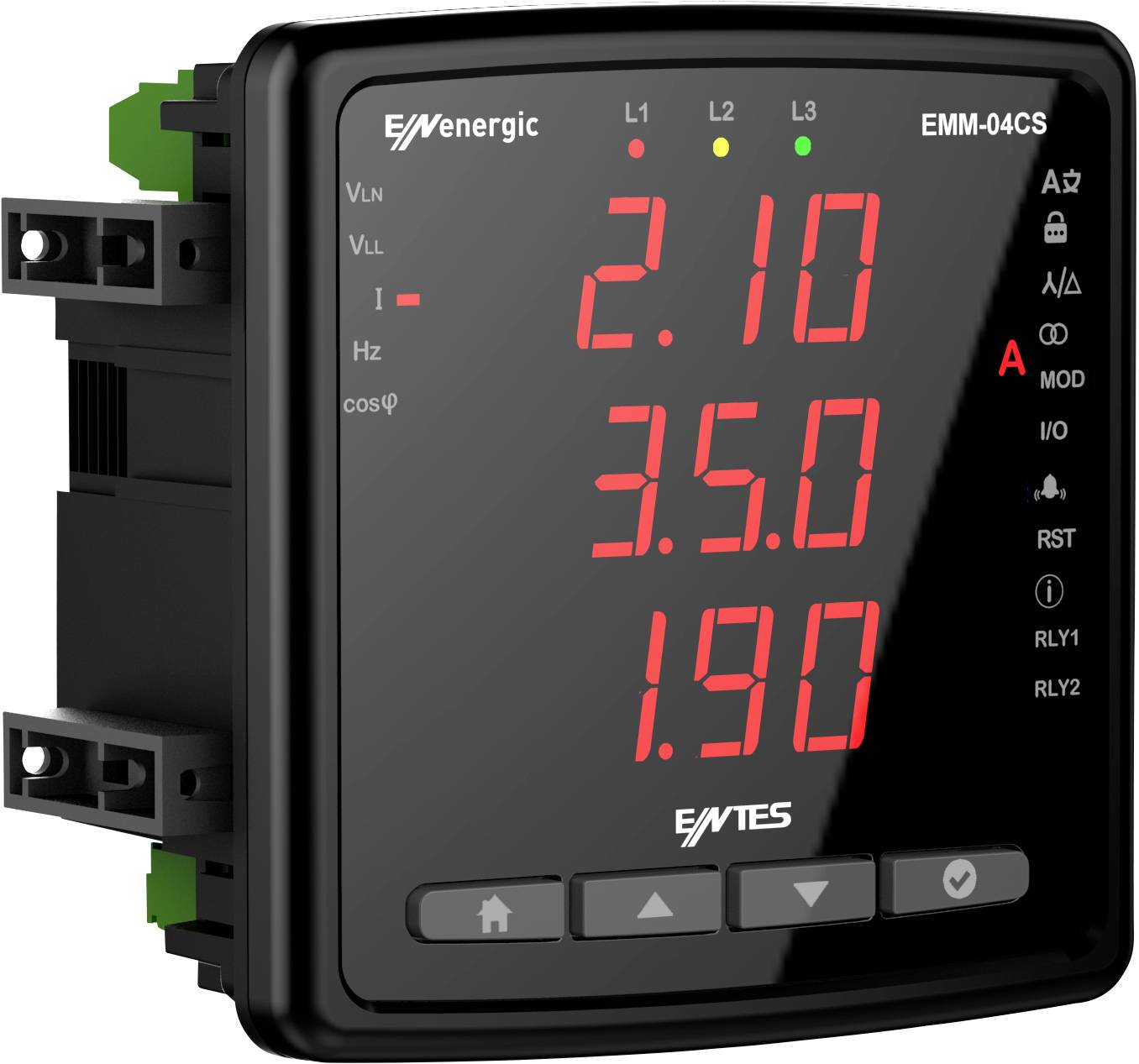

Electronic measuring device with display showing values: 2.10, 3.50, 1.90 in red. Buttons are located underneath, symbol 'A' is illuminated.

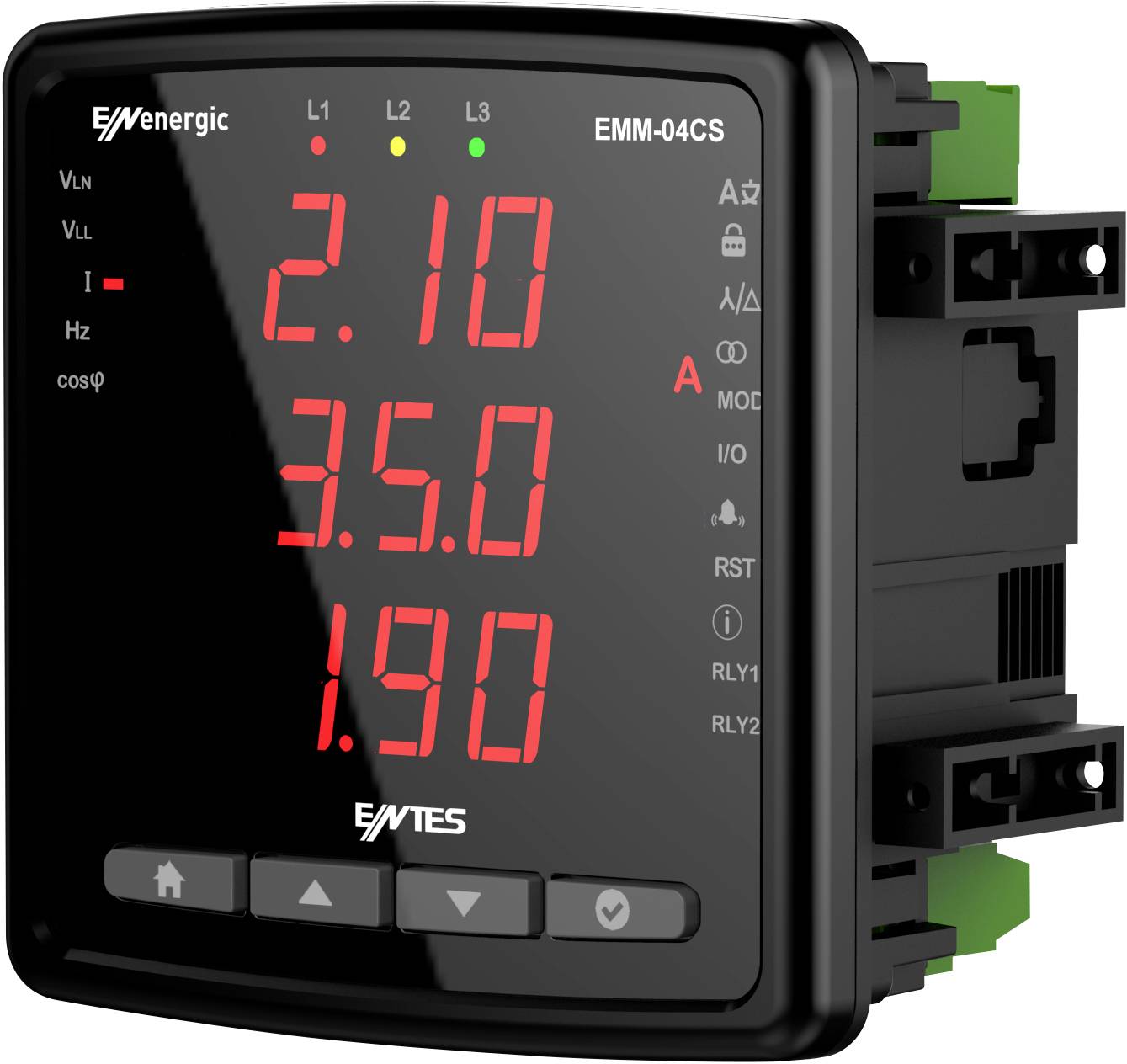

Measuring device with digital display shows three digital values: '2.10', '3.50' and '1.90'. Symbols for voltage and frequency on the left.

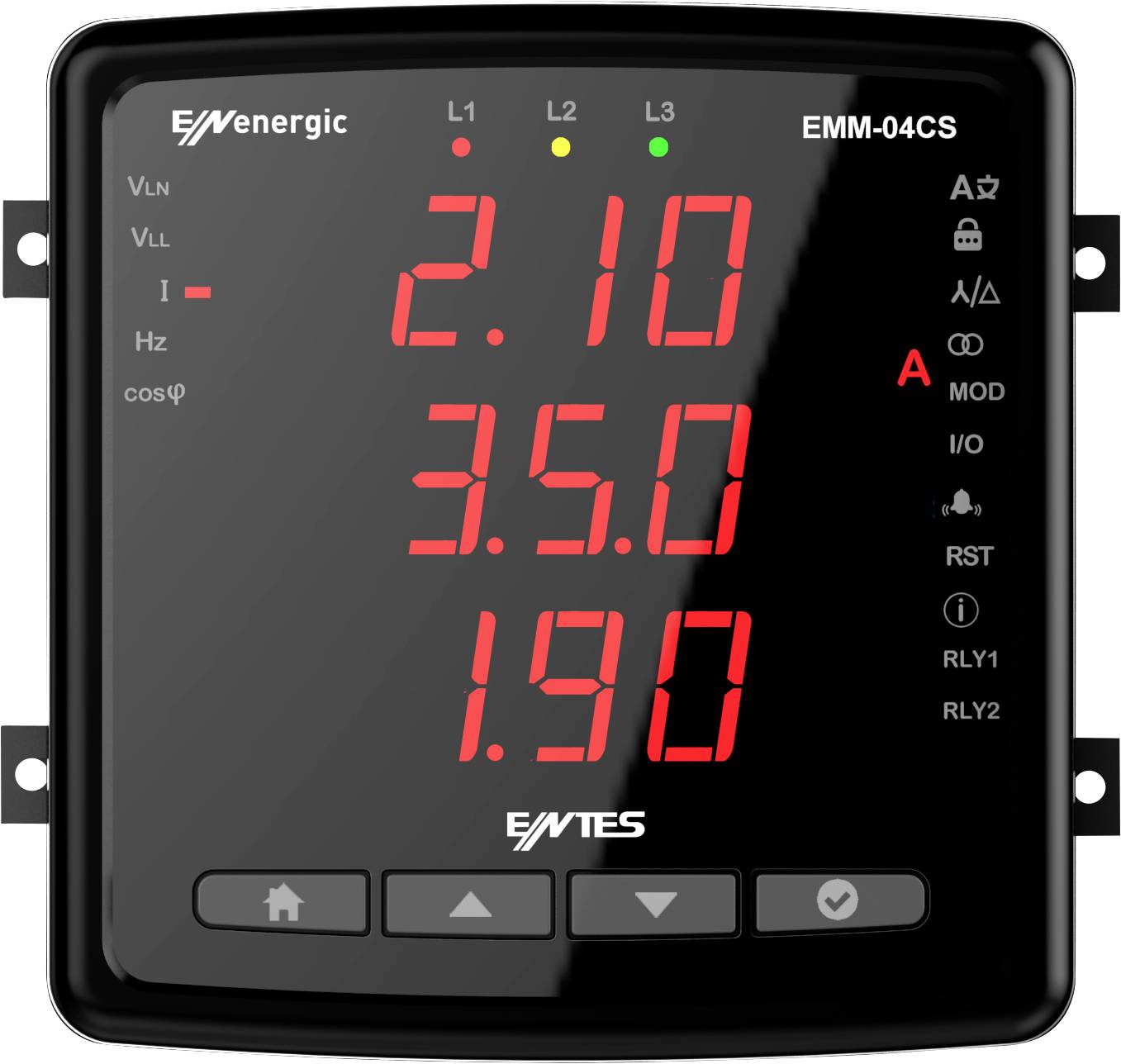

A digital measuring device displays voltages: '2.10', '3.50', '1.90' on a display. Control buttons are located at the bottom.

1/3

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wide supply voltage range
Slim design for narrow control cabinets
3-phase voltage measurement
3-phase current measurement
Notification
Operating hours timer
2x relay output
RS485 Modbus interface

Technical specifications

Product type: Digital rack-mount meter

Reading type: AC voltage
AC current
cos phi
Frequency

Type: EMM

Reading range (max.): 480 V
5 A

Display technology: LED

Recess width: 92 mm

Recess height: 92 mm

Dim: (L x W x H) 45 x 96 x 96 mm

Display lighting: red

Recess depth: 45 mm

Width: 96 mm

Height: 96 mm

Length: 45 mm

Frame width: 9.60 cm

Frame height: 9.60 cm

Interfaces: RS485

Documents & Downloads

Datasheet

Datasheet 2251909 ENTES EMM Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 2251909 ENTES EMM Digital rack-mount meter

Description

With a depth of only 45 mm and a special connection structure, the EMM series enables easy installation, especially in narrow control cabinets. The specially developed "Ghost Display" technology offers a clear and easy-to-read display. The design concept of the new generation with 4 keys offers the user a simple operation. The EMM series guarantees high measurement accuracy for basic electrical parameters such as current, voltage and frequency.
