ENTES EPM-07S-96 Network diagnostics 1-phase, 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
14-day return policy included
Highlights & Details

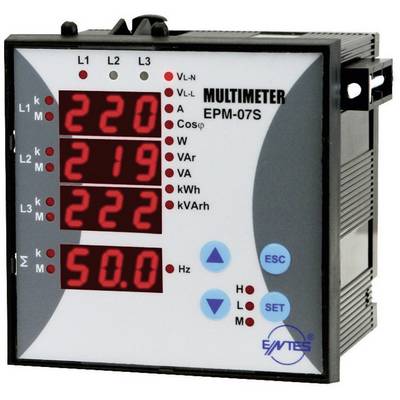

EPM-07 S-96 network analyzer instrument
- 22 different parameters
- 6 different methods for energy calculation
- 2 energy counter
- 2 digital inputs
- 2 pulse outputs
- Max./Min. Values
- Max. Required
- RS-485 interface
- Password protection
Technical specifications
- Protection class IP40 (front).
- Measurement function: Voltage AC, current AC, frequency, voltage, current, cos phi, reactive power, power.
- Product type
Network diagnostics
- Display (details)
LED red with digit height 10 mm
Manufacturer's standards (no certificate)
- Power supply (details)
230 V AC ±10% or 45-265 V AC/DC
- Dim
(L x W x H) 80 x 96 x 96 mm
- Weight
0.6 kg
- Measurement type
1-phase
3-phase
- Width
96 mm
- Height
96 mm
- Length
80 mm
- Interfaces
RS485
- Display technology
LCD
- Recess width
90 mm
- Display lighting
red
- Display (counts)
999
- Reading range (min.)
10 V AC
0 A/AC
Documents & Downloads
Datasheet
Datasheet 103324 ENTES EPM-07S-96 Network diagnostics 1-phase, 3-phase
User & Safety Instructions
User & Safety Instructions 103324 ENTES EPM-07S-96 Network diagnostics 1-phase, 3-phase
Description
EPM-07 S-96 is a processor-based network analyzer which up to 22 different parameters of an electrical network can display. The measured parameters are in 4 separate is displayed.
The following parameters can be displayed:
Phase-neutral voltage
Phase-phase voltage
Average Phase-neutral voltage
Average Phase-phase voltage
Phase currents
Neutral Current
Total power
Power factor
Cos phi
Frequency
(Active power:
Reactive power
Apparent Power
Total active power
Total reactive power
Imported active energy
Exported active energy
Capacitive reactive energy
Inductive reactive energy
Total Apparent Power
Max./Min. Values
Max. Required
EPM-07 S-96 has 2 digital inputs to the status of connected devices, such as battery, thermostat, power switch or pumps to monitor. The digital inputs in energy meter menu is enabled, the energy meter monitored.
EPM-07 S-96 has 2 programmable pulse outputs, which pulses depending on the set parameters on the energy counters.
Min and Max. Values can for VLN, VLL, A, W, Var, VA, BL, SVAr SVA and demand values for A, W, Var, VA, BL, SVA, SVAr.
This text is machine translated.
The following parameters can be displayed:
Phase-neutral voltage
Phase-phase voltage
Average Phase-neutral voltage
Average Phase-phase voltage
Phase currents
Neutral Current
Total power
Power factor
Cos phi
Frequency
(Active power:
Reactive power
Apparent Power
Total active power
Total reactive power
Imported active energy
Exported active energy
Capacitive reactive energy
Inductive reactive energy
Total Apparent Power
Max./Min. Values
Max. Required
EPM-07 S-96 has 2 digital inputs to the status of connected devices, such as battery, thermostat, power switch or pumps to monitor. The digital inputs in energy meter menu is enabled, the energy meter monitored.
EPM-07 S-96 has 2 programmable pulse outputs, which pulses depending on the set parameters on the energy counters.
Min and Max. Values can for VLN, VLL, A, W, Var, VA, BL, SVAr SVA and demand values for A, W, Var, VA, BL, SVA, SVAr.
This text is machine translated.
Features
- 2 digital inputs
- Pulse output for energy
- Dual Energy Measurement
- 6 different methods for energy calculation
- Transformer ratio: 0.1-4000.0 PROGRAMMABLE
- Contact output.
