ENTES EPM-4A-96
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 3 Piece(s) available
Highlights & Details

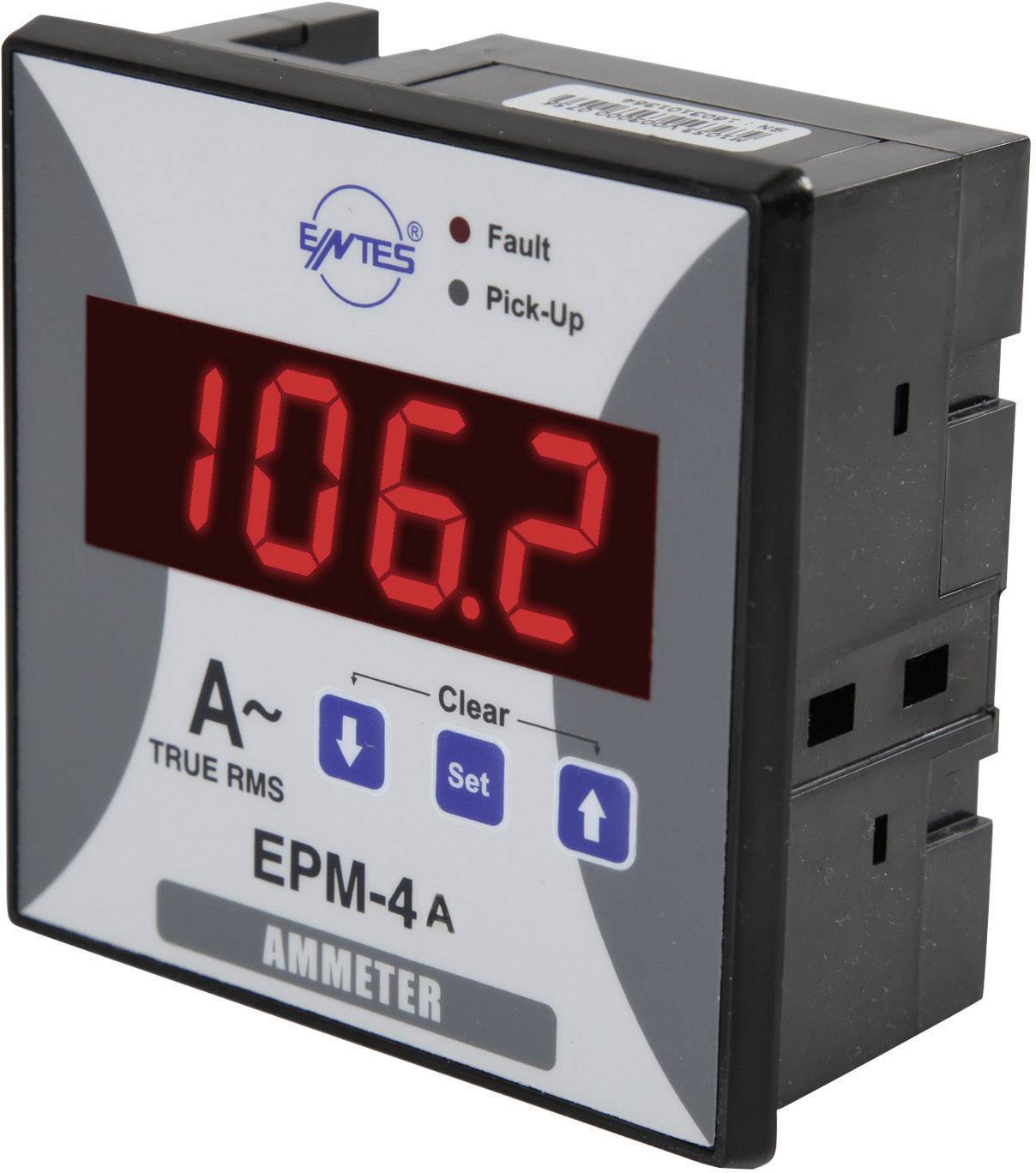

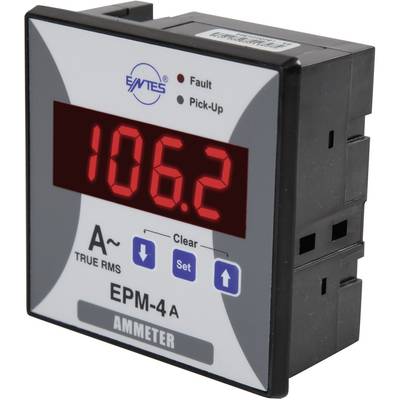

Programmable 1-phase AC current measuring device EPM-4A-96
- Operating voltage 230 V/AC
- Measurement range 50 mA - 10 kA
- Demand values
- Hysteresis function
- Adjustable limits
Technical specifications
- Reading type
AC current
Amperage
- Reading range (min.)
50 mA
- Type
EPM-4A-96
- Display technology
LCD
- Recess width
90 mm
- Display (counts)
9999
- Operating voltage
230 V AC
- Dim
(W x H x D) 96 x 96 x 46 mm
- Display lighting
red
- Width
96 mm
- Height
96 mm
- Frame width
96 mm
- Frame height
96 cm
- Depth
46 mm
- Reading range (min.)
0 A/AC
- Power supply (details)
230 V/AC
Documents & Downloads
Datasheet
Datasheet 103285 ENTES EPM-4A-96
User & Safety Instructions
User & Safety Instructions 103285 ENTES EPM-4A-96
Description
The current measuring devices measure the effective value of EPM-4A current in 1-phase networks and save the maximum, average and currently required values. At the current measurement devices EPM-4A is a CT-25 current transformer for a measuring range from 70 mA to 210A included in the delivery. The current transformer ratio of 5/5 A to 10000/5 A and the demand time can be programd.
This text is machine translated.
This text is machine translated.
Scope of delivery
- CT-25 current transformer
- User manual.
