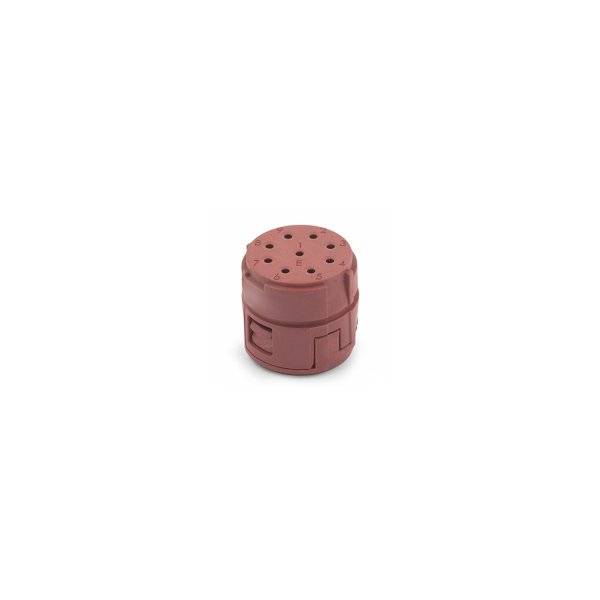

EPIC ® M23, 9-pin SIGNAL E inserts 73002730 73002730 LAPP Content: 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Connector type
Socket
Plug
Connection
Soldering
Crimp
Connector cross section
0.14 - 1 mm²
Rated voltage
150 V
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 1.17 / piece)
€ 5.87
plus VAT.
Only 1 Set(s) available
Highlights & Details
EPIC ® M23, 9-pin SIGNAL E inserts
Technical specifications
- Packaging type
Piece
- Connector type
Socket
Plug
- Connection
Soldering
Crimp
- Connector cross section
0.14 - 1 mm²
- Rated voltage
150 V
- Test current
7 A

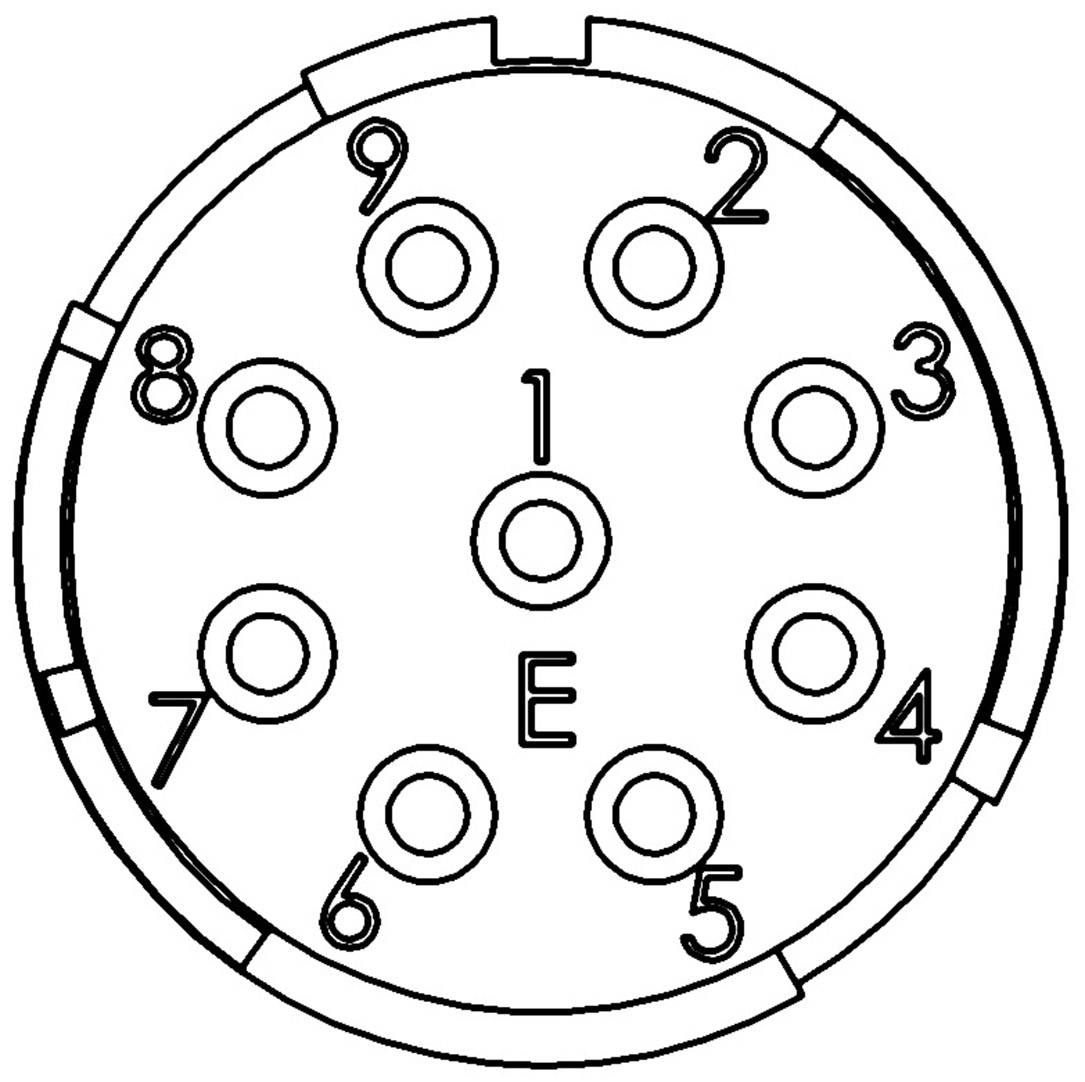

- Total no. of pins
9
- Manufacturer part #
73002730
- Industrial packaging
Yes
- Content
5 pc(s)
- Core diameter
0.08mm² - 1mm² mm²
- Number of pins
9
- RoHS-compliant
Yes
- Features
Right-hand
- Type
73002730
- Leading contact (PE)
No
- Type
E-part, right-hand
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1576228 EPIC ® M23, 9-pin SIGNAL E inserts 73002730 73002730 LAPP Content: 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1576228 EPIC ® M23, 9-pin SIGNAL E inserts 73002730 73002730 LAPP Content: 5 pc(s)
Description
Scope of delivery
- Without Contacts
- This text is machine translated.
