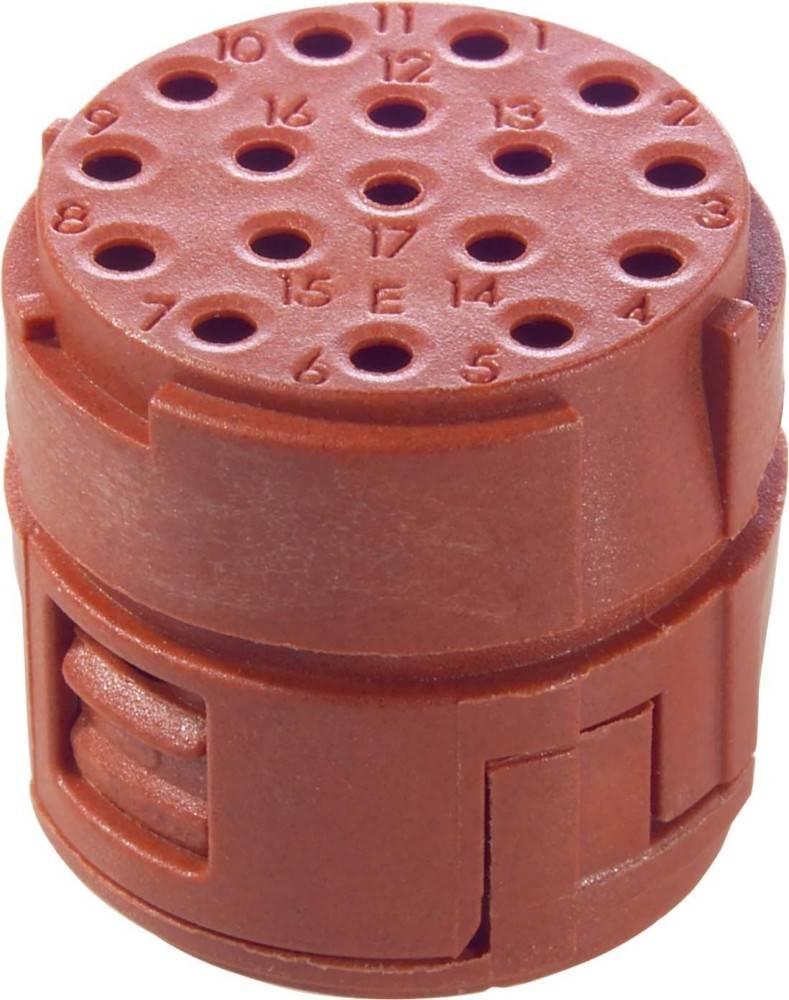

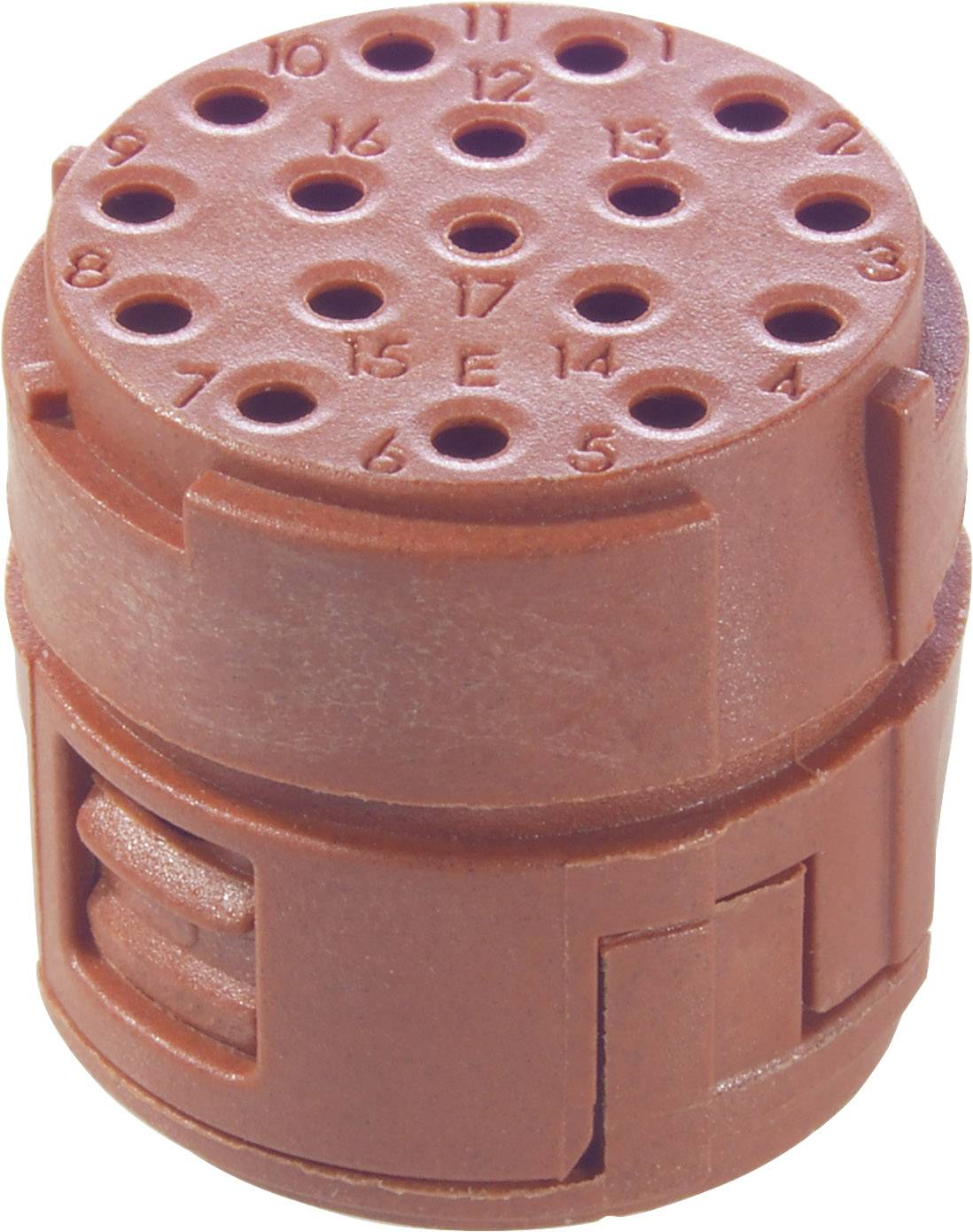

EPIC ® SIGNAL M23 E inserts, 17 pin 73008500 73008500 LAPP Content: 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Connector type
Socket
Plug
Connection
Soldering
Crimp
Connector cross section
0.14 - 1 mm²
Rated voltage
150 V
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 1.17 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
EPIC ® SIGNAL M23 E inserts, 17 pin
Technical specifications
- Packaging type
Package
- Connector type
Socket
Plug
- Connection
Soldering
Crimp
- Connector cross section
0.14 - 1 mm²
- Rated voltage
150 V
- Test current
7 A
- Case material
Thermoplastic
- Total no. of pins
17
- Manufacturer part #
73008500
- Industrial packaging
Yes
- Content
5 pc(s)
- Contact material
Brass
- Core diameter
0.08..1 mm²
- Number of pins
17
- (Ø)
23 mm
- RoHS-compliant
Yes
- Features
Right-hand
- Type
73008500
- Leading contact (PE)
No
- Type
E-part, right-hand
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1576161 EPIC ® SIGNAL M23 E inserts, 17 pin 73008500 73008500 LAPP Content: 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1576161 EPIC ® SIGNAL M23 E inserts, 17 pin 73008500 73008500 LAPP Content: 5 pc(s)
Description
Scope of delivery
- Without Contacts
- This text is machine translated.
