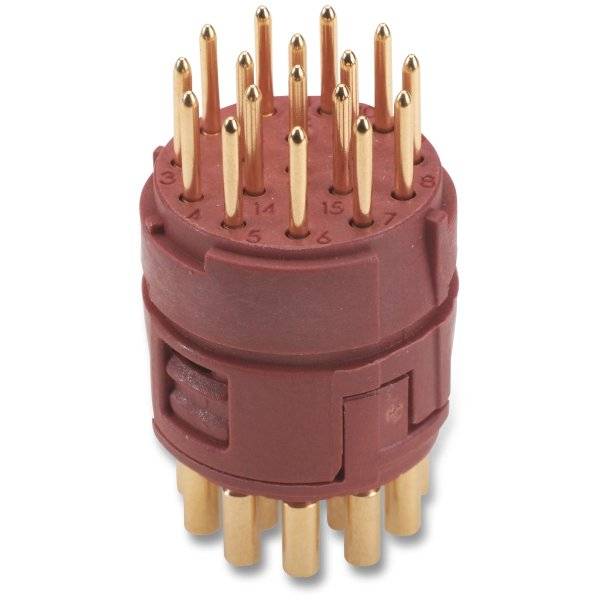

EPIC ® SIGNAL M23 P inserts, 17 pin 73028010 73028010 LAPP Content: 20 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Mounting type
Solder lug
Connector type
Plug
Connection
Soldering
Crimp
Connector cross section
0.14 - 1 mm²
Datasheet (PDF)
Total (€ 7.56 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
EPIC ® SIGNAL M23 P inserts, 17 pin
Technical specifications
- Packaging type
Piece
- Mounting type
Solder lug
- Connector type
Plug
- Connection
Soldering
Crimp
- Connector cross section
0.14 - 1 mm²
- Rated voltage
150 V
- Test current
7 A
- Total no. of pins
17
- Manufacturer part #
73028010
- Industrial packaging
Yes
- Content
20 pc(s)
- Contact material
Brass gold plated
- Core diameter
0.08mm² - 1mm² mm²
- Number of pins
17
- RoHS-compliant
Yes
- Features
Left-hand
- Type
73028010
- Leading contact (PE)
No
- Type
P-part, left-hand
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1576242 EPIC ® SIGNAL M23 P inserts, 17 pin 73028010 73028010 LAPP Content: 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1576242 EPIC ® SIGNAL M23 P inserts, 17 pin 73028010 73028010 LAPP Content: 20 pc(s)
Description
Scope of delivery
- With Contacts
- This text is machine translated.
