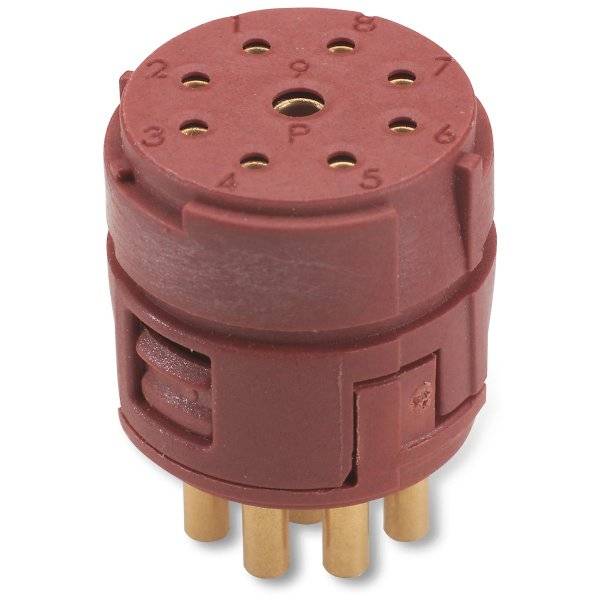

Image similar
1/2

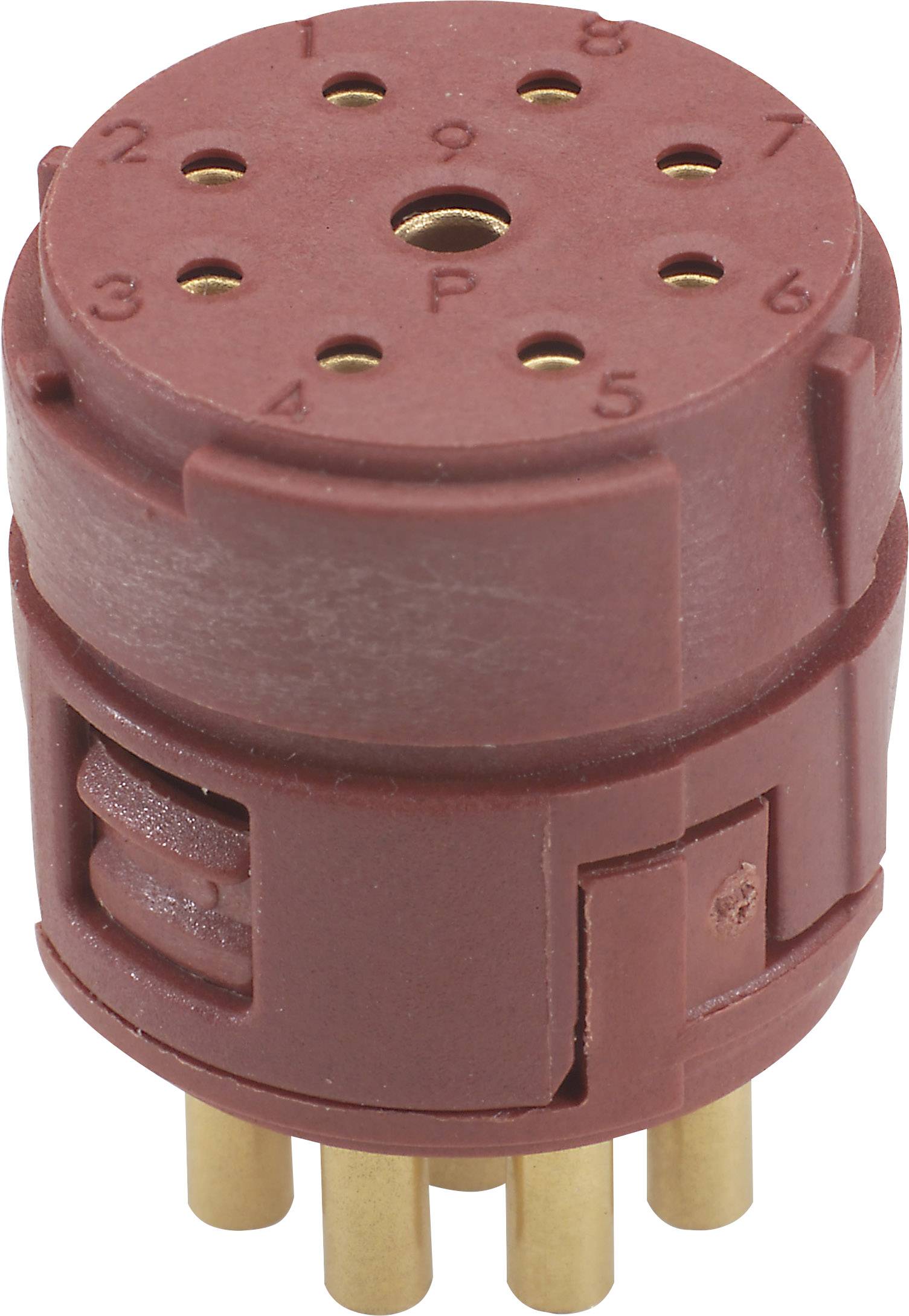

Image similar

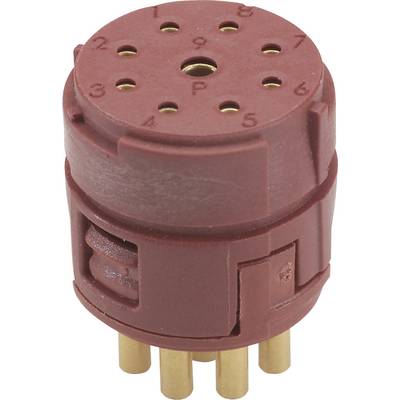

EPIC ® SIGNAL M23 P inserts, 8+1-pin 73002741 73002741 LAPP Content: 20 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Connector type
Socket
Connector cross section
0.14 - 2.50 mm²
Test current
20 A (2 mm contact)<br>7 A (1 mm contact)
Total no. of pins
8 + PE
Datasheet (PDF)
Highlights & Details
EPIC ® SIGNAL M23 P inserts, 8+1-pin
Technical specifications
- Packaging type
Piece
- Connector type
Socket
- Connector cross section
0.14 - 2.50 mm²
- Test current
20 A (2 mm contact)
7 A (1 mm contact)
- Total no. of pins
8 + PE
- Manufacturer part #
73002741
- Industrial packaging
Yes
- Content
20 pc(s)
- Contact material
Brass gold plated
- Number of pins
8
- RoHS-compliant
Yes
- Features
Left-hand
- Type
73002741
- Leading contact (PE)
Yes
- Type
P-part, left-hand
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1576223 EPIC ® SIGNAL M23 P inserts, 8+1-pin 73002741 73002741 LAPP Content: 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1576223 EPIC ® SIGNAL M23 P inserts, 8+1-pin 73002741 73002741 LAPP Content: 20 pc(s)
Description
Scope of delivery
- With Contacts
- This text is machine translated.
