Buy Equip Equip Beamer Decken-/Wandhalterung unive Projector ceiling mount Roof suspension bracket, Height-adjustable, Retra

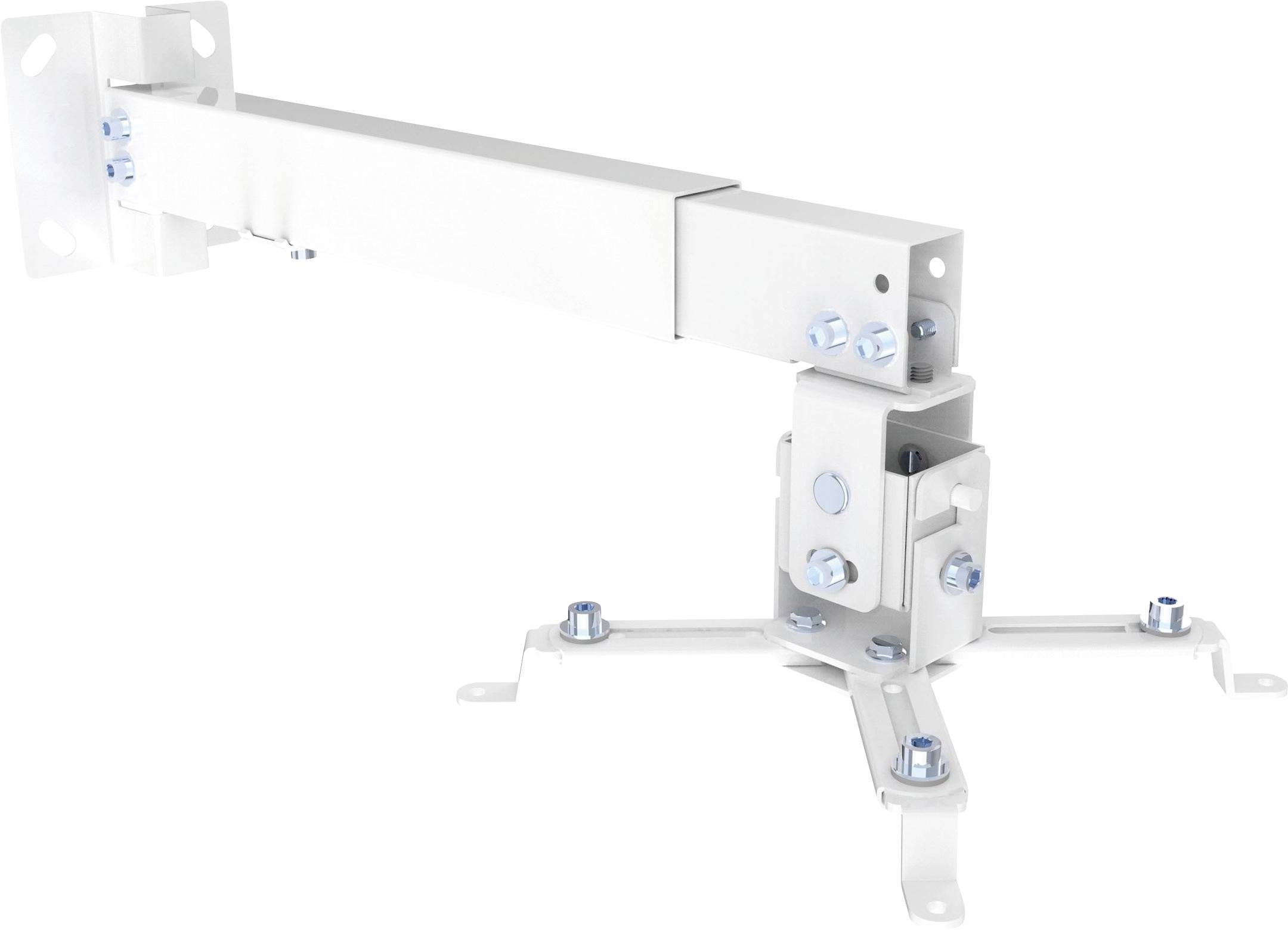

White metal wall-mounted projector or TV bracket with adjustable arm and base plate on a plain background.

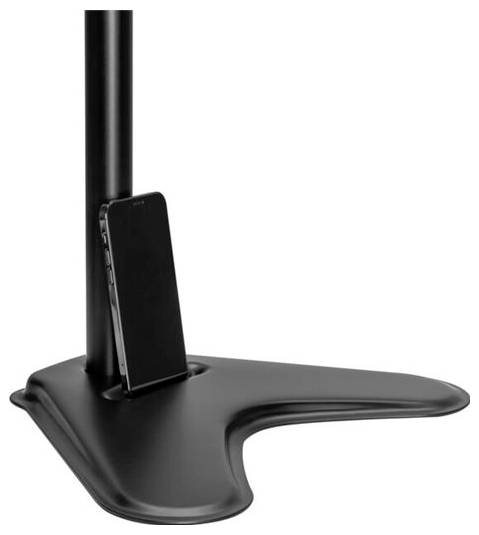

Black phone stand with a weighted base and vertical pole holding a smartphone upright.

Modern living room with gray sectional, coffee table, pendant light, and large wall-mounted bridge artwork above a recessed media panel.

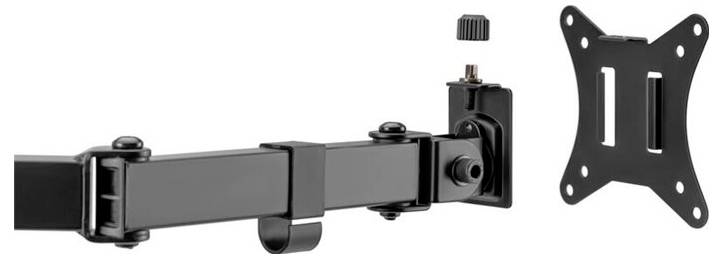

Adjustable black articulating TV wall mount arm with VESA mounting plate, shown extended beside the separate screen bracket.

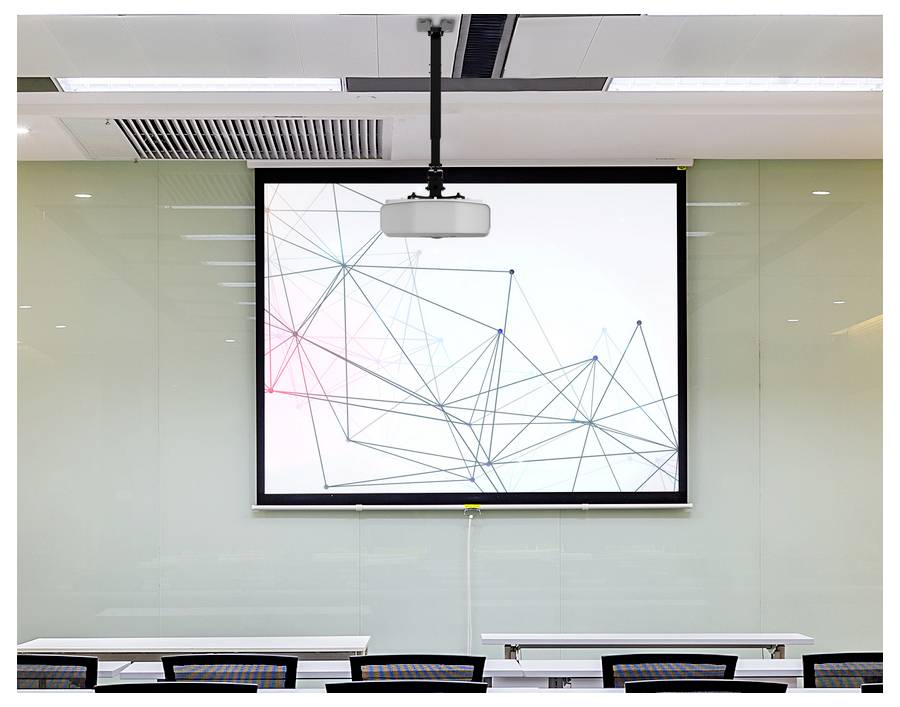

Classroom with a ceiling-mounted projector and pull-down screen displaying an abstract network-style diagram; empty desks in front.

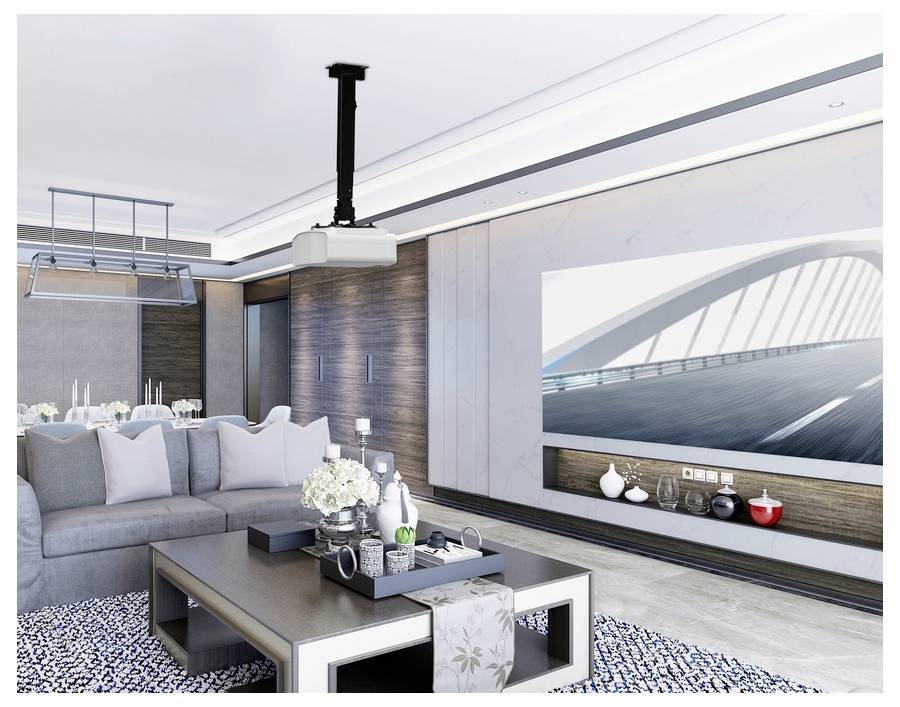

Modern living room with gray sectional sofa, coffee table, and large bridge artwork on the wall, lit by a ceiling-mounted projector.<br>

Technical diagram of a wall-mounted adjustable bracket showing size ranges: arm length min 350 mm to max 560 mm, and base diameter min 225 mm to max 315 mm with tilt angles ±15° and ±8°.<br>

Box packaging for an Equip projector ceiling wall mount bracket, shown in white with red branding and product illustration.

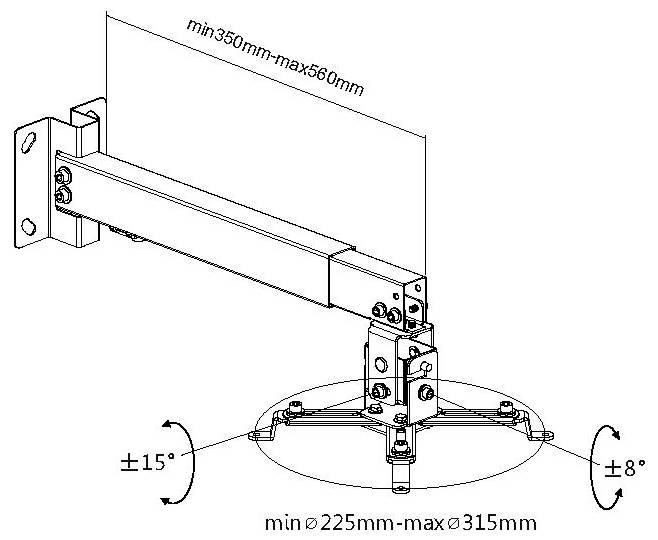

Technical diagram of a ceiling mount bracket showing adjustable arm length min 350 mm to max 560 mm, and tilt ranges of ±15° and ±8°, with base diameter min 225 mm to max 315 mm.

Box packaging for an Equip projector ceiling/wall mount bracket, shown in white with a red band and product image.

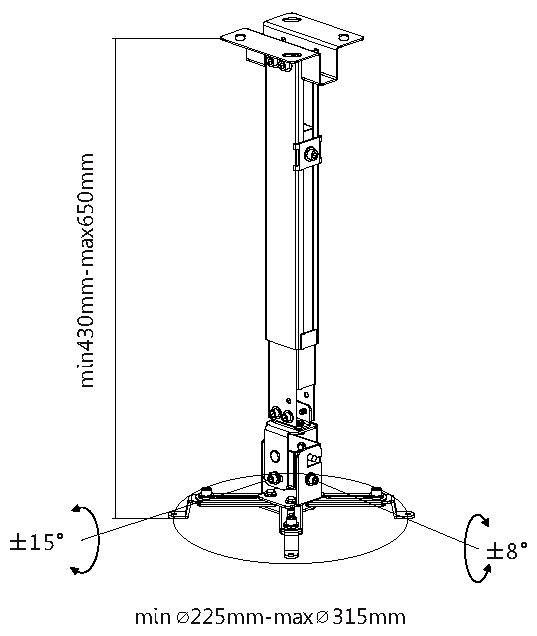

Adjustable ceiling mount diagram showing pole length from min 430 mm to max 650 mm, with tilt range ±15° and ±8° and base diameter from 225 mm to 315 mm.

White metal adjustable mounting bracket with a long horizontal arm and bolted base plate on a plain background.

1/12

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Equip projector, ceiling/wall bracket, white

Highlights & Details

Wall 20 kg White
Adjustable arm
Improved cable management
Tilt angle range -15 - 15°

Technical specifications

Swivel angle range -8 - 8 °
Tilt angle range -15 - 15°

Product type: Projector ceiling mount

Holder type: Roof suspension bracket
Height-adjustable
Retractable
Tiltable
Swivelling

Tilt range (top): -15°

Tilt range (bottom): 15°

Max. load capacity: 20 kg

Factory colour: White

Width: 203 mm

Height: 650 mm

Weight: 1.7 kg

Content: 1 pc(s)

Dim: (W x H x D) 203 x 650 x 237 mm

Depth: 237 mm

Material (details): Steel

UKCA: yes

Screws included: yes

Cable management: yes

Manual: yes

Adjustable arm: yes

Package weight: 1.62 kg

Adjustable: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3767958 Equip Equip Beamer Decken-/Wandhalterung unive Projector ceiling mount Roof suspension bracket, Height-adjustable, Retra

Description

The Equip Universal projector ceiling / wall bracket is a compact, but robust product that allows a reliable installation of your LCD / Plasma TV. Follow the video instructions to install your projector with ease.

This text is machine translated.

Features

"Height adjustment Height/length adjustment : 430-650mm
Suitable for projectors with a graduated circle diameter of 225–315 mm
Stable and light-weight steel construction
Integrated cable management system
Max. Load capacity 20kg / 44 lbs"

What kind of Projector Wall Brackets are you looking for?

Projector ceiling mount
