Buy Ergotron 45-296-026 TV wall mount 76,2 cm (30") - 139,7 cm (55") Tiltable, Swivelling, Swivelling, Height-adjustable, Re

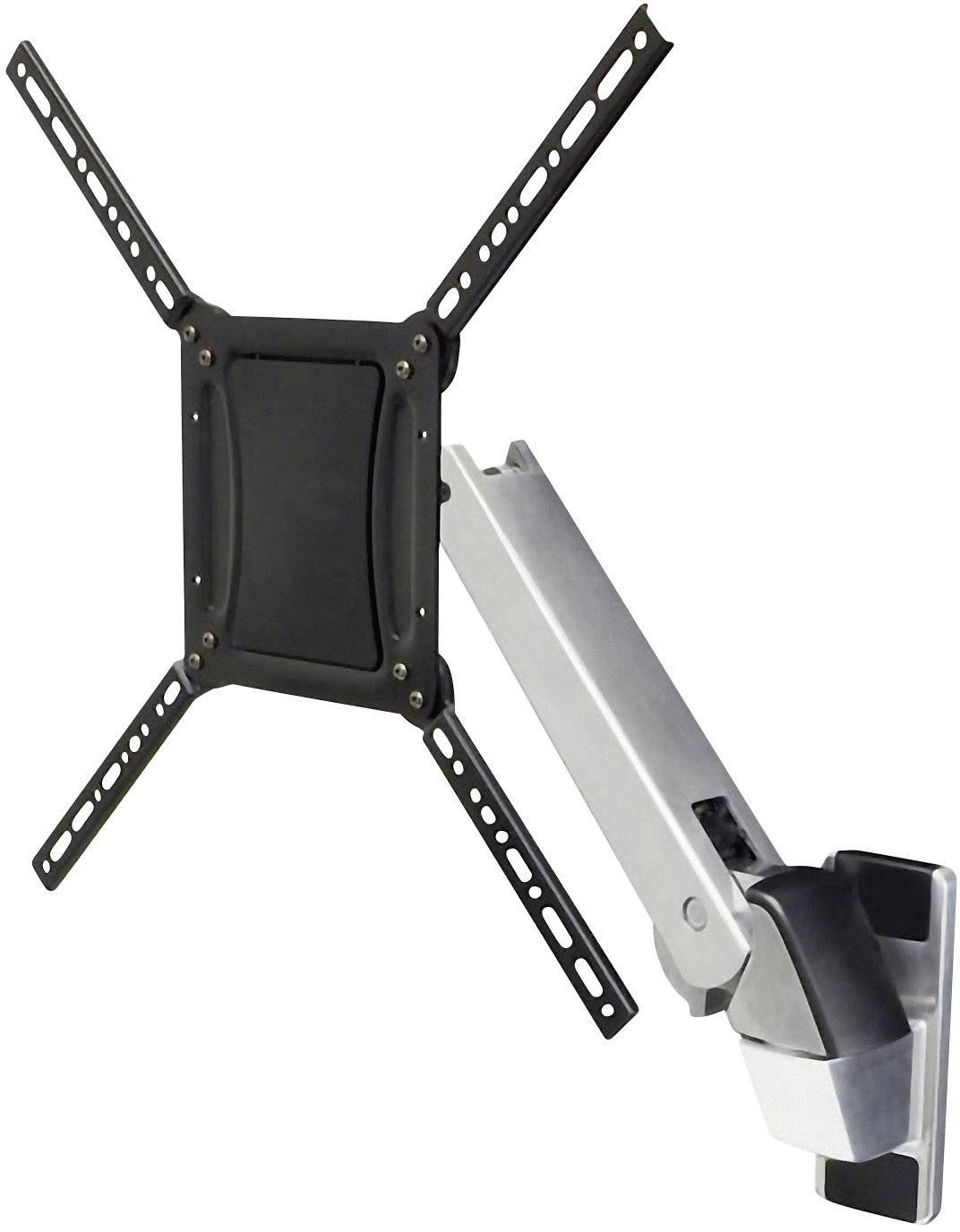

Adjustable TV wall mount in black and silver, suitable for flat screens.

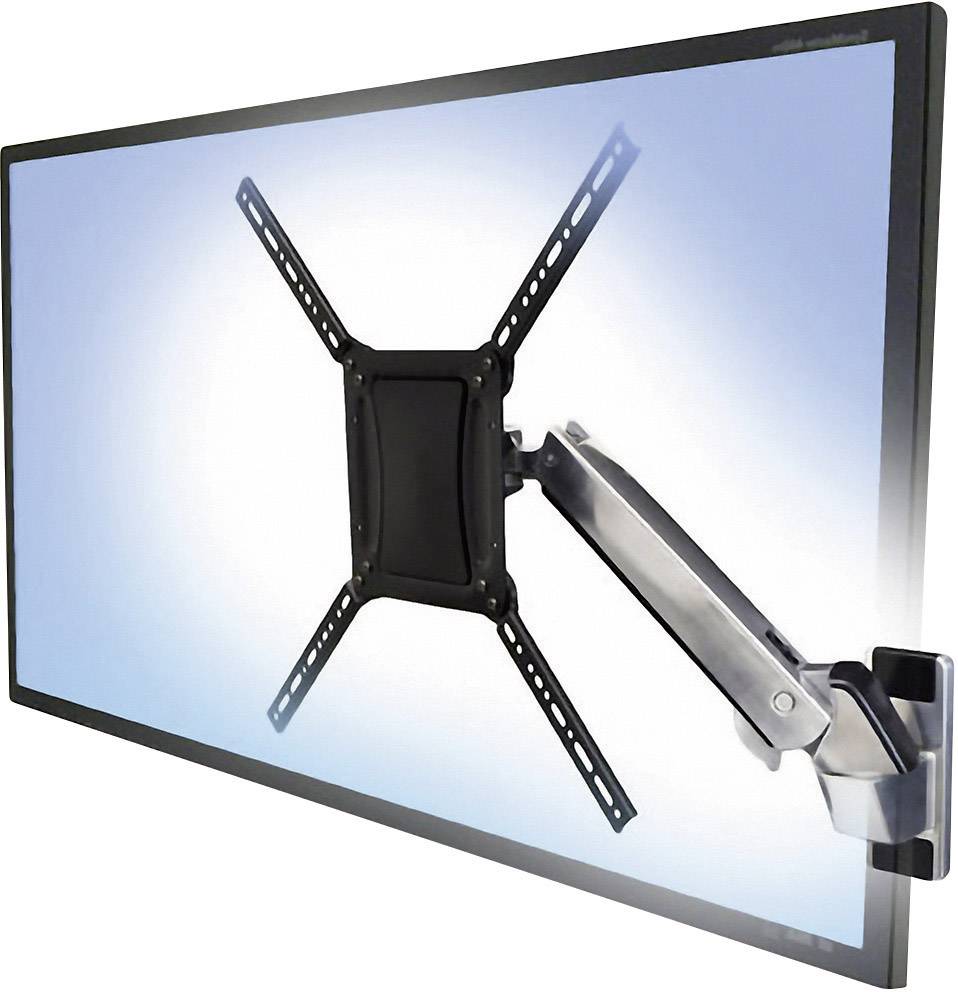

A wall mount holds a flat monitor or television. The mount is adjustable and allows flexible positioning.

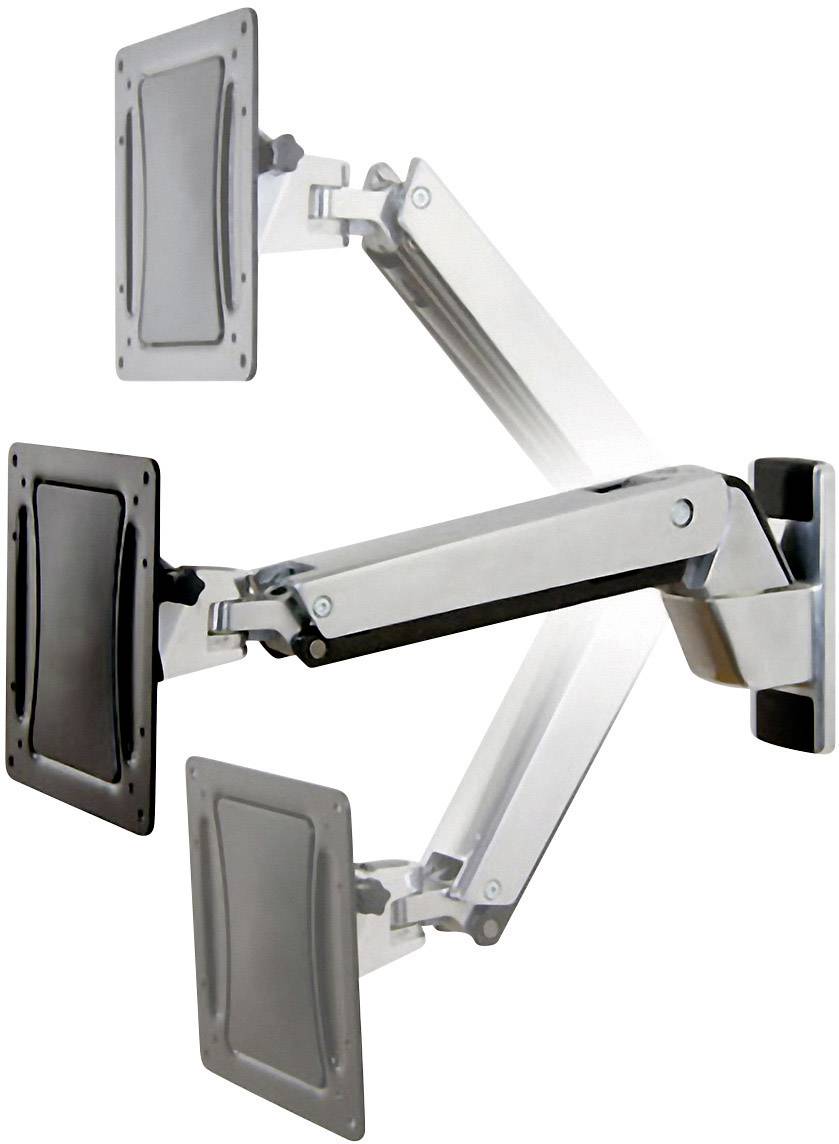

A triple metal monitor arm mounted on the wall. Each arm has a rectangular bracket for monitors.

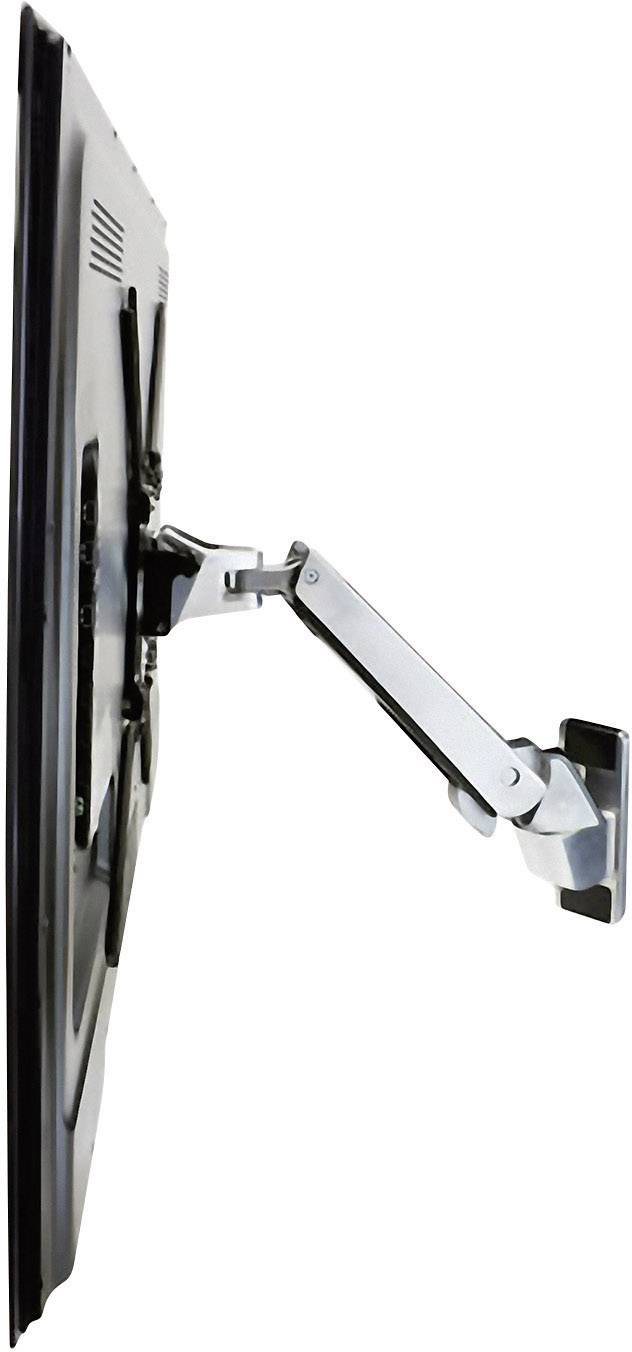

Flat television mounted sideways on a pivoting wall bracket, showing articulated arms and wall mounting.

A large screen is mounted on a pivoting wall bracket. The bracket allows flexible orientation and positioning of the screen.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ergotron Interactive Arm, HD

Highlights & Details

Holder type: Tiltable, Swivelling, Swivelling, Height-adjustable, Retractable
Supports all VESA standards up to 200 x 100 mm
Suitable for displays sized (range): 76,2 cm (30") - 139,7 cm (55")
Load capacity (max.) 18.2 kg

Technical specifications

Product type: TV wall mount

Suitable for: 76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
Show more

Suitable for: 76,2 cm (30") - 139,7 cm (55")

Holder type: Tiltable
Swivelling
Swivelling
Height-adjustable
Retractable

Features: Constant force technology

Max. load capacity: 18.2 kg

: No

: 200 x 100 mm

Rotation: 10°

Tilt range (bottom): -15°

Tilt range (top): +10°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 14 cm

Distance to wall (max.): 61 cm

Width: 0 cm

Height: 0 cm

Depth: 0 cm

Factory colour: Aluminium (polished)

Weight: 9.9 kg

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1012462 Ergotron 45-296-026 TV wall mount 76,2 cm (30") - 139,7 cm (55") Tiltable, Swivelling, Swivelling, Height-adjustable, Re

Description

Today's and tomorrow's fit the needs of the active positioning of TV sets. Swivelled to lift or turn your display in any direction! Vertical adjustment of 51 cm (20 inches) and 45 cm (17.5 inches) height adjustment on each side.
Now everyone can easily with an easy contact his television in different positions! Your screen is literally in the air and can easily be moved between standing and seat high position. Never again uncomfortable viewing angle and a stiff neck.
- Patented Constant Force technology offers a smooth, smooth adjustment
- The revolutionary design allows interaction with your TV set by the screen then moved to where you watch movies, games, exercises etc.
- Smooth, uniform vertical and horizontal movement of the television and display in any direction
- The force of gravity joint allows angle of inclination, without buttons to print or need to move lever
- Better ergonomic view of wall-mounted TV and displays

This text is machine translated.
