Ergotron HX mit VHD Pivot Monitor desk mount 1 Display(s) 144,8 cm (57") White Height-adjustable, Tiltable
EAN:
Part number:
Item no:
Ergotron HX Series HX ARM WITH VHD JOINT, TABLE MOUNTING (WHITE), FOR 1000R 57" MONITORS
Highlights & Details
- Maximum weight capacity 17 kg
- Maximum screen size: 144.8 cm (57")
- Number of display supported: 1
- Terminal mounting type: Table/bank
- Maximum VESA-bracket 100 x 100 mm
- Height adjustment Inclination adjustment
- Improved cable management Easy installation
- White
Technical specifications
- Maximum screen size: 144.8 cm (57")
- Panel-mounting interface 75 x 75.100 x 100 mm
- Table thickness (max.) 6.6 cm
- Tilt angle range 5 - 20°
- Product type
Monitor desk mount
- Suitable for
144,8 cm (57")
- Add-on displays
1 Display(s)
- Holder type
Height-adjustable
Tiltable
No
- Max. load capacity
17 kg
No
100 x 100 mm
- Rotation
20°
- Tilt range (bottom)
5°
- Tilt range (top)
20°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Factory colour
White
- Weight
10.3
- Suitable for
144,8 cm (57")
- Supported monitors
1
- UKCA
yes

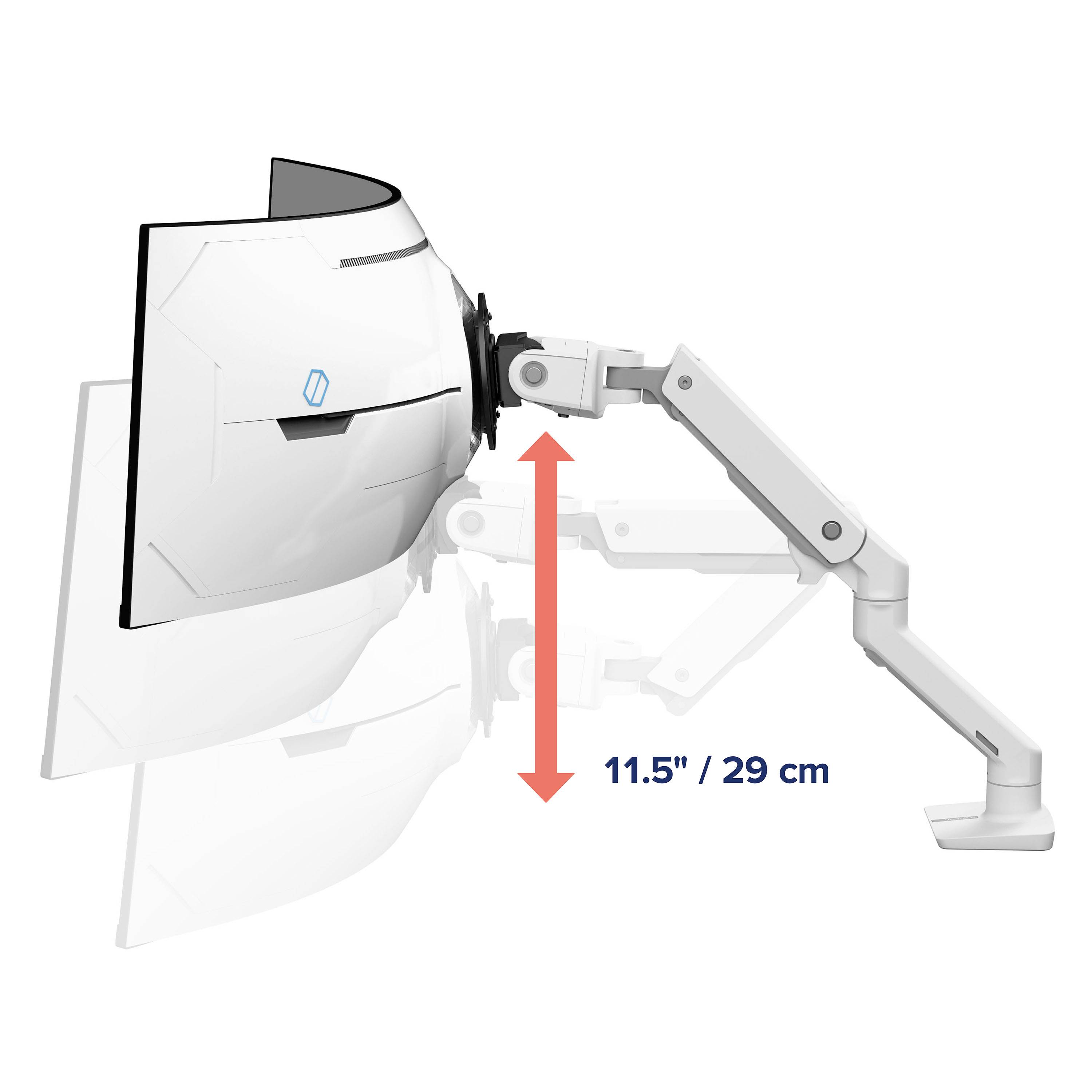

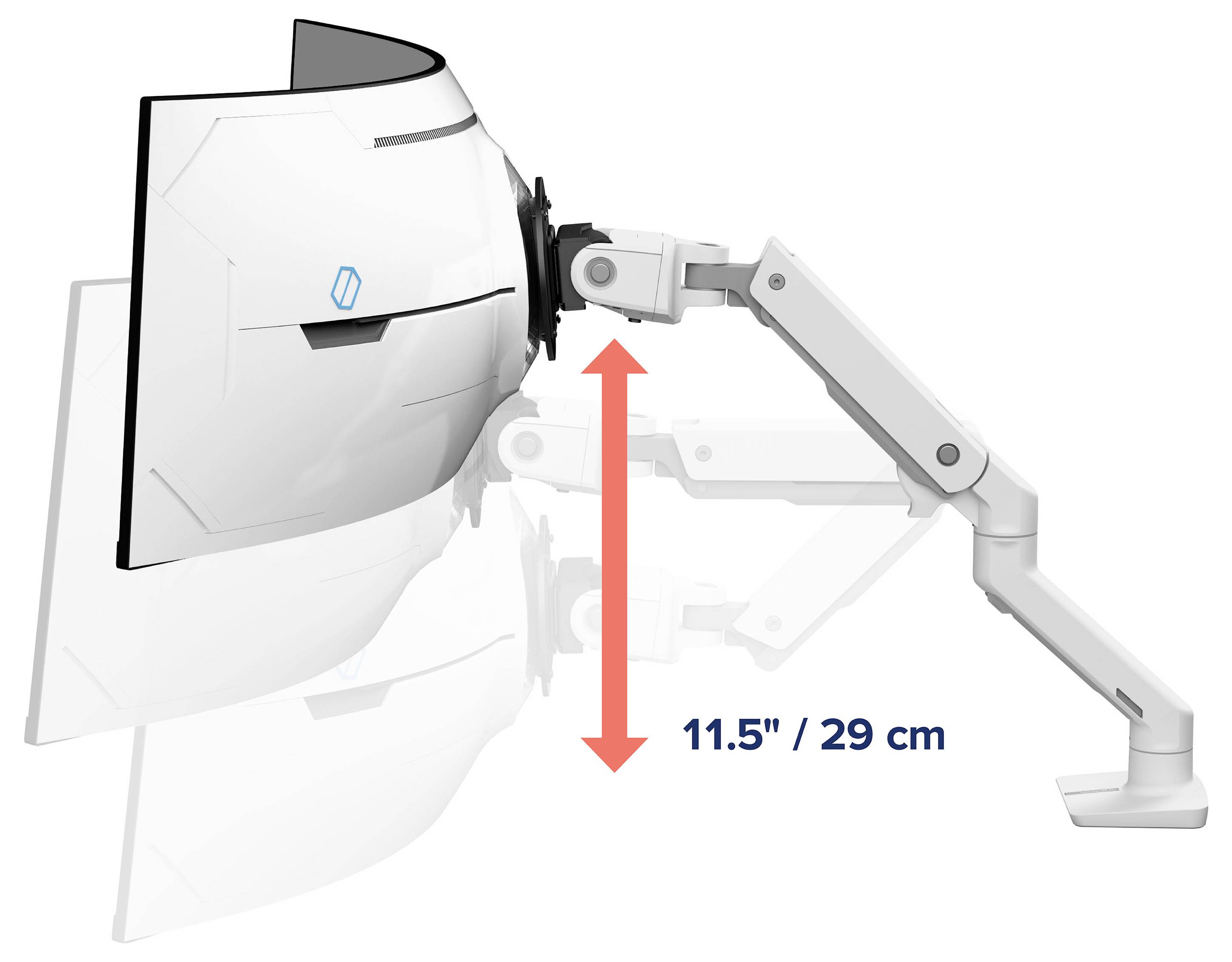

- Height adjustment range
0 - 292 mm
- Clamp included
yes
- Number of arms
1
- Height adjustment
yes
- Desk thickness (min)
1 cm
- Quantity per pack
1 Stück(e)
- VESA mount included
yes

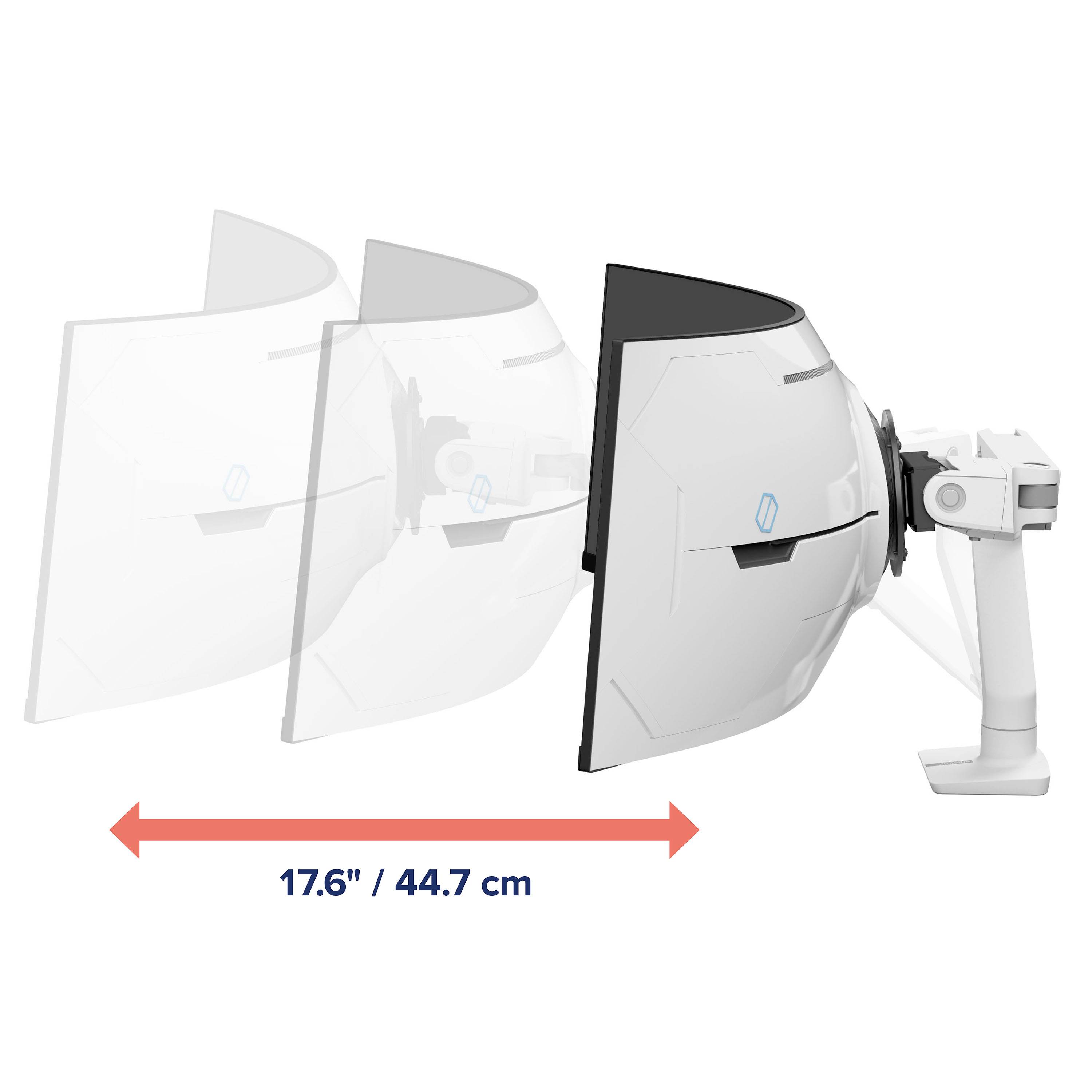

- Adjustable depth
yes
- Pan range
0 - 180°
- Cable management
yes
- Rotating
yes
- Suitable for TV
yes
- Maximum weight capacity (per display)
17 kg
- Easy to install
yes
- Maximum weight capacity (per curved/ultra-wide display)
17 kg
- Swivelling
yes
- Package weight
10.5 kg
- Mounting kit
yes
- Tilt adjustment
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3395298 Ergotron HX mit VHD Pivot Monitor desk mount 1 Display(s) 144,8 cm (57") White Height-adjustable, Tiltable
Description
Experience immersive viewing experiences and conquer your desk space. The HX monitor arm with a high-capacity monitor joint (VHD) gives gamers and people with a screen workstation the freedom to move and position ultra-wide 1000 R curved monitors with a depth of 28.7–37.5 cm (57"–13.8") and 13–17 kg (23–35 lbs), such as the Samsung® 9.1" Odyssey G9 gaming monitor.
Note: Other versions of the Samsung G9 are compatible with the standard HX arm or the HX arm with HD joint. Check the weight and curve radius of your monitor to determine which bracket is suitable.
This text is machine translated.
Note: Other versions of the Samsung G9 are compatible with the standard HX arm or the HX arm with HD joint. Check the weight and curve radius of your monitor to determine which bracket is suitable.
This text is machine translated.
Features
- Protect your investment
- Combines a stable monitor arm with an extra strong monitor joint for a secure hold
- Immersive viewing experience
- Tilts +20/-5° for relaxed working or playing
- G9 compatible
- Designed for 57″ 1000R curved monitors such as the Samsung 57″ Odyssey G9
- Decent and tidy
- The cables disappear under the arm and in the extension
- Saves space
- Replaces bulky monitor stands and positions the screen above the working area
- Easy setting
- Enables precise screen positioning with Constant Force™ technology
Scope of delivery
- HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware
