Ersa i-Con 1 komplet Soldering station Digital 80 W +150 - +450 °C
EAN:
Part number:
Item no:
Total (€ 410.92 / piece)
€ 410.92
plus VAT.
14-day return policy included
Highlights & Details

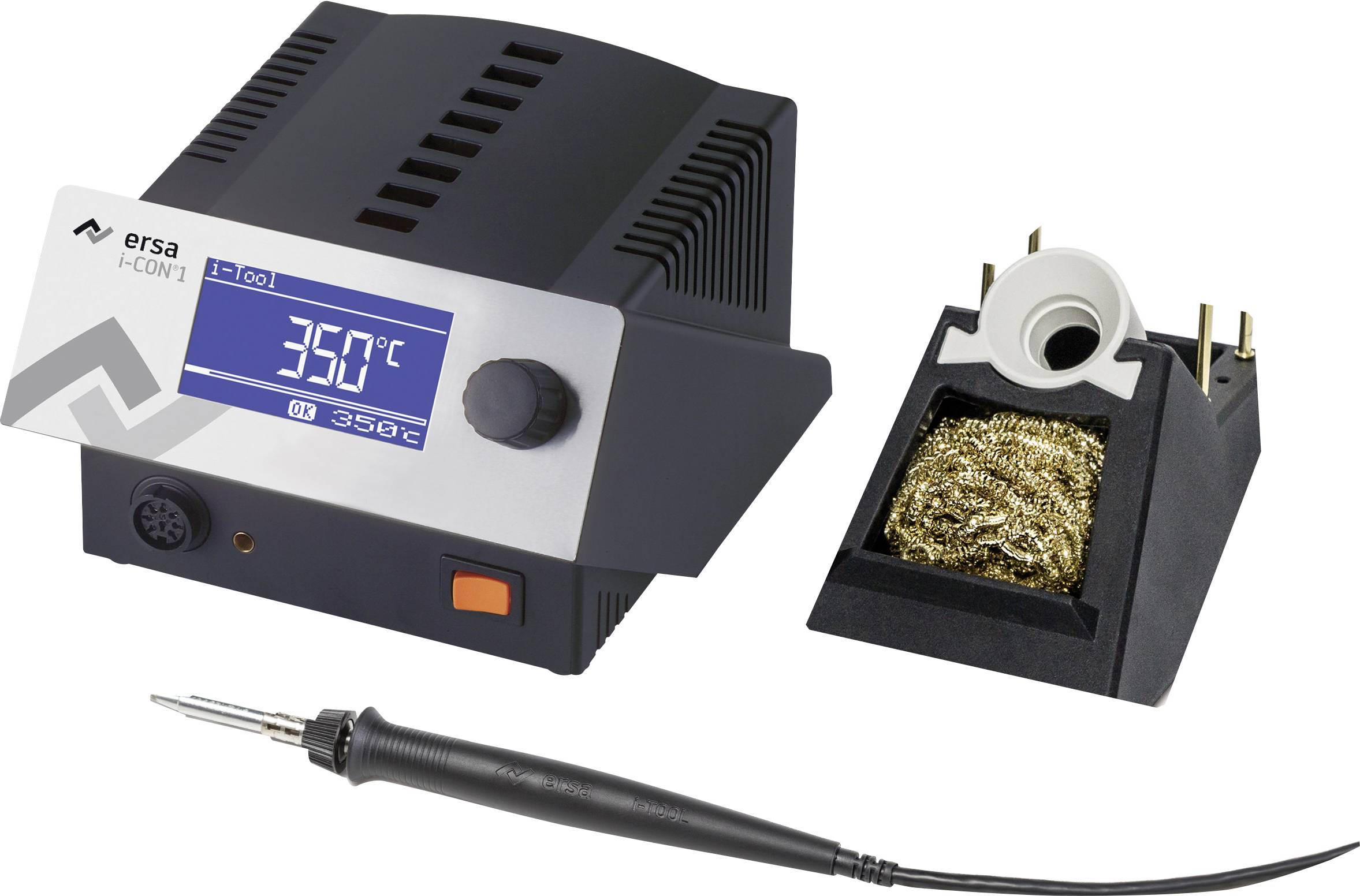

Ersa i-Con 1 komplet Soldering station Digital 80 W +150 - +450 °C
- Digital display
- Preheating time - 9s
- Temperature range - 150 - 450 °C
- 80W
Technical specifications
- Soldering iron i-Tool: Tension: 24v/DC; Achievement: 150 W
- Product type
Soldering station
- Max. power
80 W
- Power supply (LOV)
mains-powered
- Max. temperature
+450 °C
- Display
Digital
- Dim
(L x W) 300 mm x 210 mm
- Operating voltage
230 V
- Weight
3.011 kg
- Width
210 mm
- Length
300 mm
- Min. temperature
+150 °C
80 W
- Temperature range
150 - 450 °C
- Operating voltage
220 - 240 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 588307 Ersa i-Con 1 komplet Soldering station Digital 80 W +150 - +450 °C
Conformity certificate
Conformity certificate 588307 Ersa i-Con 1 komplet Soldering station Digital 80 W +150 - +450 °C
Description
Innovative solution for intelligent hand soldering.
Ersa has succeeded in designing one of the smallest, lightest and most powerful soldering irons in the world - the Ersa i-TOOL. The true value added for our customers lies not only in the fact that it will increase both the hand soldering quality and productivity, but also that it can realize a tremendous reduction in operational costs associated with manual soldering. Ersa´s new patent pending technology allows for a similar performance as compared to the soldering irons with expensive heating cartridge tips, but offers a standard low-cost, long-life exchangeable tip! The Ersa i-CON advanced digital power supply offers Ersa´s new "One Touch" easy-to-use operation with the new i-Op Control, as well numerous value added functions.\n\nThe station consists of an electronic station (0IC103A) with power cord (3K120KR053075), a soldering iron i-TOOL (0100CDJ) with an ERSADUR longlife soldering tip (0102CDLF16) and a holder (0A48).
Ersa has succeeded in designing one of the smallest, lightest and most powerful soldering irons in the world - the Ersa i-TOOL. The true value added for our customers lies not only in the fact that it will increase both the hand soldering quality and productivity, but also that it can realize a tremendous reduction in operational costs associated with manual soldering. Ersa´s new patent pending technology allows for a similar performance as compared to the soldering irons with expensive heating cartridge tips, but offers a standard low-cost, long-life exchangeable tip! The Ersa i-CON advanced digital power supply offers Ersa´s new "One Touch" easy-to-use operation with the new i-Op Control, as well numerous value added functions.\n\nThe station consists of an electronic station (0IC103A) with power cord (3K120KR053075), a soldering iron i-TOOL (0100CDJ) with an ERSADUR longlife soldering tip (0102CDLF16) and a holder (0A48).
Scope of delivery
- ERSA ELECTRONIC STATION I-CON 1
- Soldering iron i-Tool
- Tool holder 0A50.
