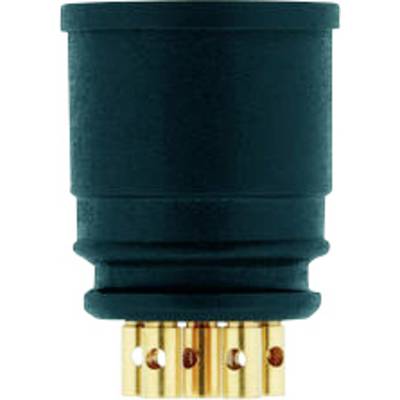

Escha 8009737 Sensor/actuator built-in connector M12 No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connection side A
M12 plug, straight
Connection side B
M12
No. of pins
8
Nominal voltage
30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Rated voltage: 30V
- Insulation resistance ≥108 Ω
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, PA GF, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Number of pins: 8
- Protection class (mounted) IP65, IP67
- Plug connector: Plug, M12
- Current load capacity per pin (at 40°C): 2.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3/2
- Coding: A
- Connection type: Solder connection
- Type
EWAS8
- Product type
Sensor/actuator built-in connector
- Connection side A
M12 plug, straight
- Connection side B
M12
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
2.0 A
- Nominal current - rounded value
2 A
- Connection
Soldering
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Min. temperature
-30 °C
- Max. temperature
90 °C
- Manufacturer part #
8009737
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553355 Escha 8009737 Sensor/actuator built-in connector M12 No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553355 Escha 8009737 Sensor/actuator built-in connector M12 No. of pins (RJ): 8 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
