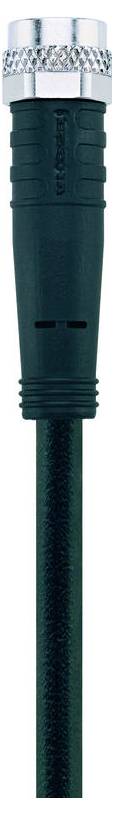

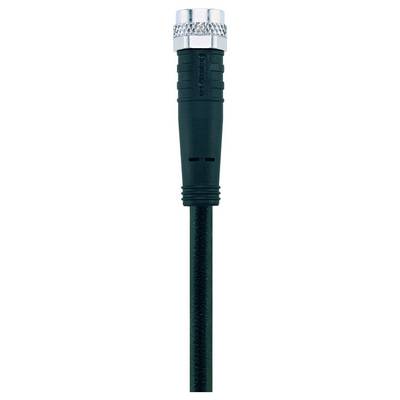

Escha 8043762 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M8 socket, straight
Connection side B
Cable, open end
No. of pins
4
Cable length
10.0 m
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Rated voltage: 60V
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, TPU, BK
- Material contacts: Metal, CuSn, gold plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-104 standard
- Pin assignment:1 BN 2 WH, 3 BU, 4 BK
- Number of pins: 4
- Protection type (mounted): IP65, IP67, IP68
- Plug connector: Socket, straight, M8
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3/2
- WIRE COLORS: BN, WH, BU, BK
- Wire cross-section 4 x 0.25 mm²
- Outer diameter of sheath: 4.30mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 32 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: 5 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-360°/m, ≥ 2 MIO. Cycles
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Metal, CuZn, nickel-plated
- Type
AL-SKP4-10/S370
- Product type
Sensor/actuator cable
- Connection side A
M8 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
10.0 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Outside Ø
4.30 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
M8 socket
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuSn, gold plated
- max. cross section
0.25 mm²
- Min. cross section
0.25 mm²
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Manufacturer part #
8043762
- Content
1 pc(s)
- Cable Ø
4.30 mm
- Cable Ø (max.)
4.30 mm
- Cable Ø range
4.30 mm (max)
Documents & Downloads
Datasheet
Datasheet 3553395 Escha 8043762 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553395 Escha 8043762 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
