Escha 8044002 Cable connection M8 2.0 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable connection
Connection side A

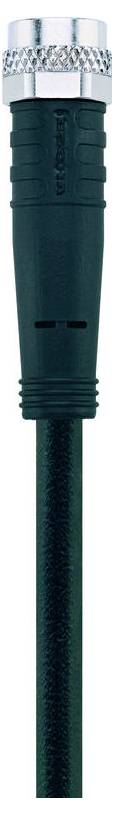

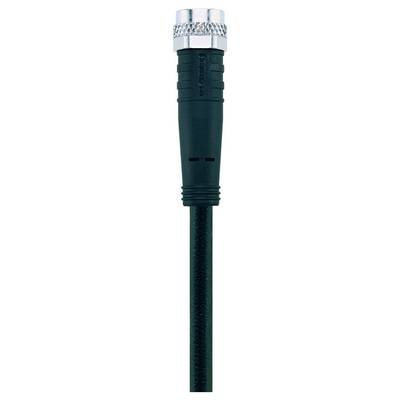

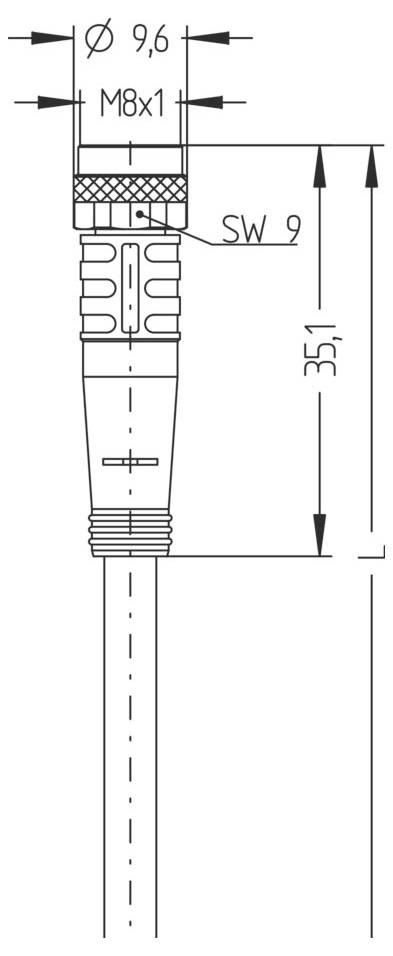

M8 socket, straight
Connection side B

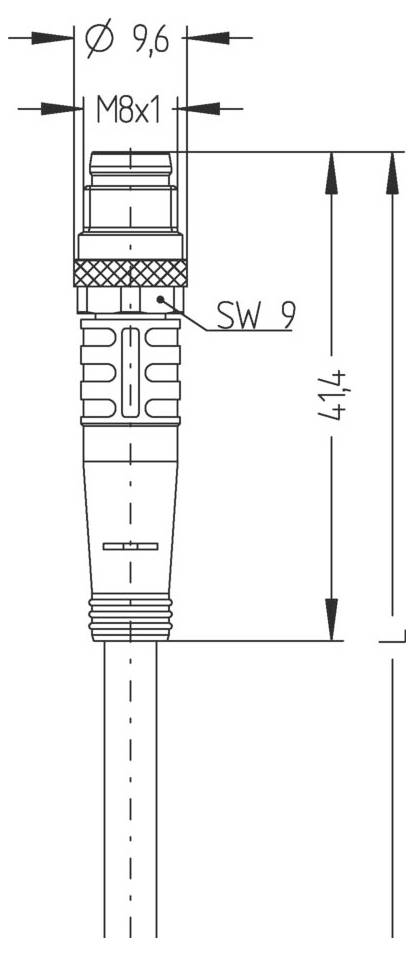

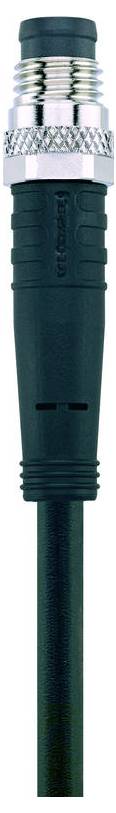

M8 plug, straight
No. of pins
3
Cable length
2.0 m
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Material seal (bush): FPM/FKM
- WIRE COLORS: BN, BU, BK
- Wire cross-section 3 x 0.25 mm²
- Outer diameter of sheath 4.00 mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 32 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: 5 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-360°/m, ≥ 2 MIO. Cycles
- Rated voltage (side A | side B): 60V
- Forward resistance (side A | side B): 5 mΩ
- Insulation resistance (side A | side B): ≥108 Ω
- Material grip body (side A | side B): Plastic, TPU, BK
- Material contacts (side A | side B): Metal, CuSn, gold plated
- Material contact carrier (page A | page B): Plastic, TPU, BK
- Material over-throw (side A | side B): Metal, CuZn, nickel-plated
- Mechanical life (page A | page B): >100 mating cycles
- Standards (page A | page B): IEC 61076-2-104
- Pin assignment (page A | page B): 1 BN, 3 BU, 4 BK
- Number of pins (page A | page B): 3
- Protection type (mounted) (side A | side B): IP65, IP67, IP68
- Connector (side A | side B): Female, straight, M8;male, straight, M8
- Current rating per pin (at 40°C) (side A | side B): 4.0 A.
- Ambient temperature (page A | page B): -30°C...+90°C.
- Pollution level (page A | page B): 3
- Type
AL-SKP3-2-AL-SSP3/S370
- Product type
Cable connection
- Connection side A
M8 socket, straight
- Connection side B
M8 plug, straight
- No. of pins
3
- Cable length
2.0 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Outside Ø
4.00 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
M8 plug
M8 socket
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuSn, gold plated
- max. cross section
0.25 mm²
- Features
UV-resistant
Oil-resistant
Twistable
Halogen-free
Silicone-free
flame-retardant
Ozone-resistant
Spark-proof
Hydrolysis-resistant
Corrosion-resistant
Show more
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Manufacturer part #
8044002
- Content
1 pc(s)
- Cable Ø
4.00 mm
- Cable Ø (max.)
4.00 mm
- Cable Ø range
4.00 mm (max)
Documents & Downloads
Datasheet
Datasheet 3553405 Escha 8044002 Cable connection M8 2.0 m No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553405 Escha 8044002 Cable connection M8 2.0 m No. of pins (RJ): 3 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
