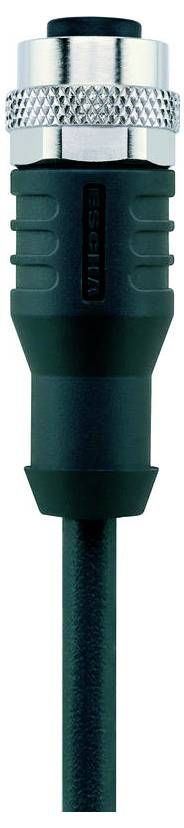

Escha 8046905 Sensor/actuator cable 10.0 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
8
Cable length
10.0 m
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Technical specifications
- Rated voltage: 30V
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, TPU, BK
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Pin assignment:1 WH, 2 bn, 3 GN, 4 ye, 5 Gy, 6 PK, 7 BU, 8 RD
- Number of pins: 8
- Protection type (mounted): IP65, IP67, IP68
- Plug connector: Socket, straight, M12
- Current load capacity per pin (at 40°C): 2.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- WIRE COLORS: WH, BN, GN, YE, GY, PK, BU, RD
- Wire cross-section 8 x 0.25 mm²
- Outer diameter of sheath 5.90 mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 32 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: ≥2 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
- Coding: A
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Metal, CuZn, nickel-plated
- Type
AL-WAK8-10/S370
- Product type
Sensor/actuator cable
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
10.0 m
- Nominal voltage
30 V
- Nominal current
2.0 A
- Nominal current - rounded value
2 A
- Coding
A
- Contact material
CuZn
- Manufacturer part #
8046905
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553424 Escha 8046905 Sensor/actuator cable 10.0 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553424 Escha 8046905 Sensor/actuator cable 10.0 m No. of pins (RJ): 8 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
