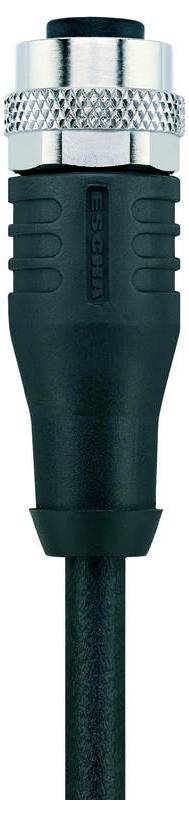

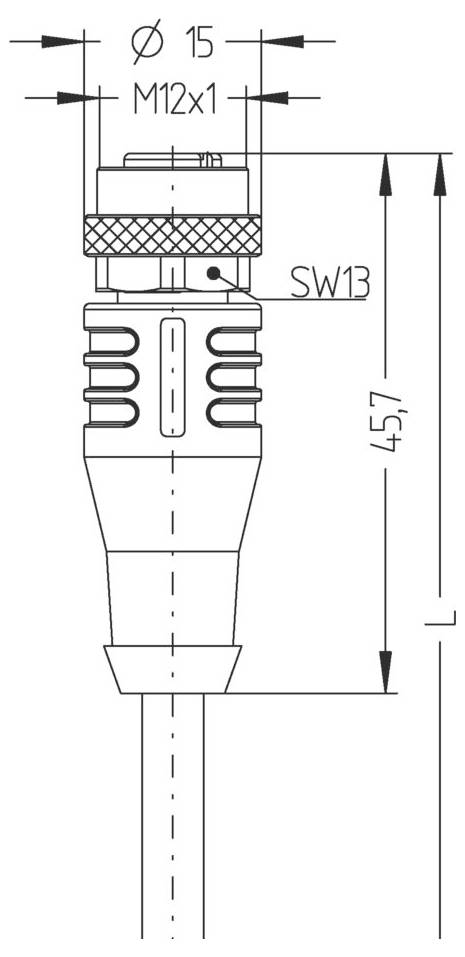

Escha 8047002 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 12 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
12
Cable length
5.0 m
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Rated voltage: 30V
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, TPU, BK
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Pin assignment:1 BN 2 BU 3 WH, 4 GN 5 PK, 6 YE, 7 BK, 8 GY, 9 RD, 10 VT, 11 GYPK, 12 RDBU
- Number of poles: 12
- Protection type (mounted): IP65, IP67, IP68
- Plug connector: Socket, straight, M12
- Current load capacity per pin (at 40°C): 1.5 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- WIRE COLORS: BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU
- Wire cross-section 12 x 0.14 mm²
- Outer diameter of sheath 6.00 mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 12 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 18 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: ≥2 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
- Coding: A
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Metal, CuZn, nickel-plated
- Shielding: Yes
- Type
AL-WAKS12-5/S370
- Product type
Sensor/actuator cable
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
12
- Cable length
5.0 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Outside Ø
6.00 mm
- Cross-section (sensor/actuator wiring)
0.14 mm²
- Connection
Open cable ends
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Manufacturer part #
8047002
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553431 Escha 8047002 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553431 Escha 8047002 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 12 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus). Very good EMC properties in shielded version.
