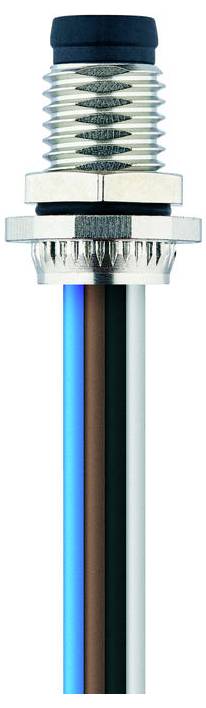

Escha 8071422 Sleeve plug M8 Sleeve plug 0.2 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sleeve plug
Connector type
Sleeve plug
Connection side A
M8 plug, straight
Connection side B
Cable, open end
No. of pins
4
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Rated voltage: 50VAC ; 60VDC
- Material contacts: Metal, CuSn, gold plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-104 standard
- Pin assignment:1 BN 2 WH, 3 BU, 4 BK
- Number of pins: 4
- Protection type (mounted): IP65, IP67, IP68
- Plug connector: Plug, straight, M8
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- WIRE COLORS: BN, WH, BU, BK
- Wire cross-section 4 x 0.25 mm²
- Material wire insulation: PVC
- Coding: A
- Connection type: Wire connection

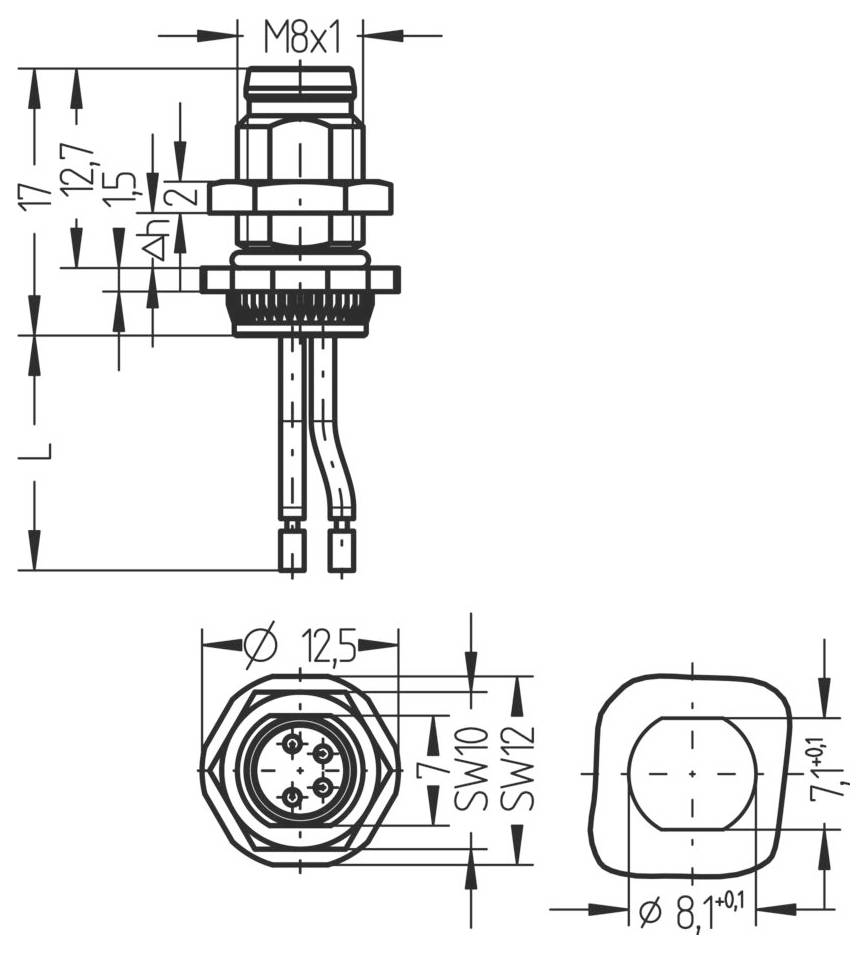

- Fastening thread: M8x1
- Wire length 0.2 m.
- Material flange housing: Metal, CuZn, nickel-plated
- Mounting direction: Rear panel fitting (incl. fixing nut)
- Wall thickness range (Δh): 2.0...4.5 mm
- Type
AL-FHM8SUA4-0,2/M8
- Product type
Sleeve plug
- Connector type
Sleeve plug
- Connection side A
M8 plug, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
0.2 m
- Jacket material
PVC
- Nominal voltage
50 V AC
60 V DC
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Braid
- Thread type connection side
M8
- Thread type (wiring and installation)
M8 x 1
- Coding
A
- Contact material
CuSn, gold plated
- Sensor/actuator connectivity fittings
Rear panel fitting
- Min. temperature
-30 °C
- Max. temperature
90 °C
- Manufacturer part #
8071422
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553477 Escha 8071422 Sleeve plug M8 Sleeve plug 0.2 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553477 Escha 8071422 Sleeve plug M8 Sleeve plug 0.2 m No. of pins (RJ): 4 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
