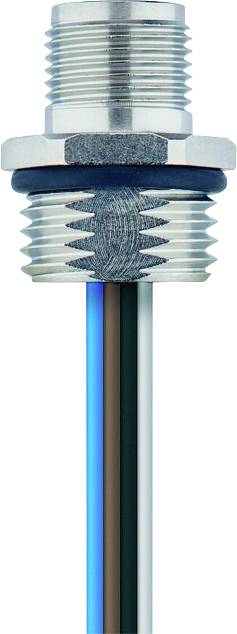

Escha 8071802 Sleeve plug M16 Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sleeve plug
Connector type
Sleeve plug
Connection side A
M12 plug, straight
Connection side B
Cable, open end
No. of pins
4
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Rated voltage: 250V
- Insulation resistance ≥108 Ω
- Material contacts: Metal, CuSn, gold plated
- Material contact carrier: Plastic, PA GF, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Pin assignment:1 BN 2 WH, 3 BU, 4 BK
- Number of pins: 4
- Protection type (mounted): IP65, IP67, IP68
- Plug connector: Plug, straight, M12
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- WIRE COLORS: BN, WH, BU, BK
- Wire cross-section 4 x 0.34 mm²
- Material wire insulation: PVC
- Coding: A
- Connection type: Wire connection

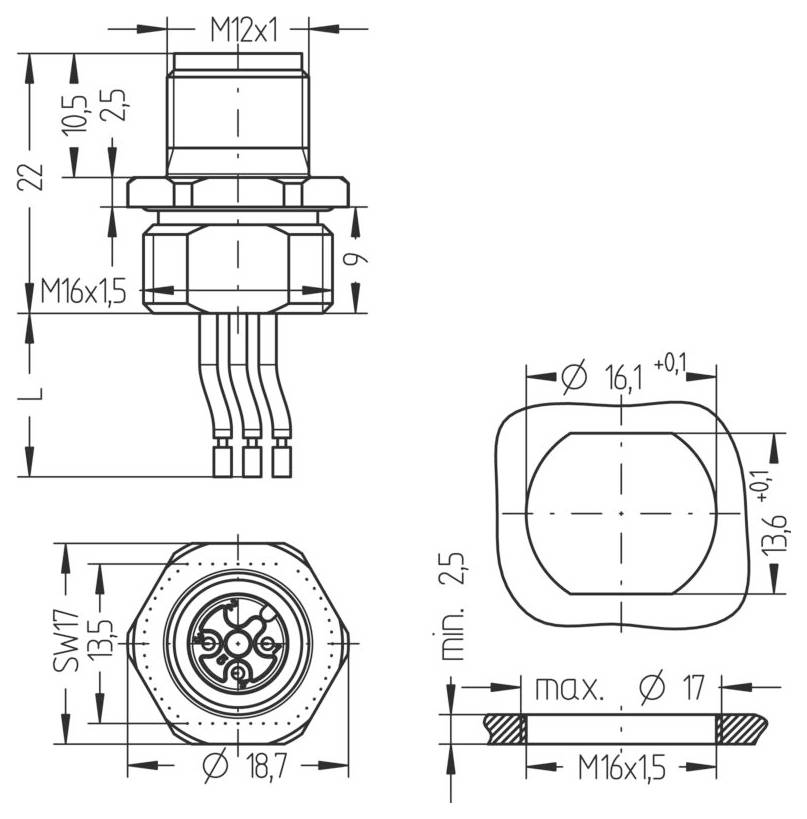

- Fixing thread: M16x1.5
- Replaces: 8027383
- Wire length 0.5 m.
- Material flange housing: Metal, CuZn, nickel-plated
- Material outer seal: NBR
- Mounting direction: Front panel fitting (without fixing nut)
- Type
AL-FVM12SUA4-0,5/M16
- Product type
Sleeve plug
- Connector type
Sleeve plug
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
0.5 m
- Nominal voltage
250 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Braid
- Thread type connection side
M16
- Thread type (wiring and installation)
M16
- Coding
A
- Contact material
CuSn, gold plated
- Sensor/actuator connectivity fittings
Front panel fitting
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Manufacturer part #
8071802
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553482 Escha 8071802 Sleeve plug M16 Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553482 Escha 8071802 Sleeve plug M16 Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
