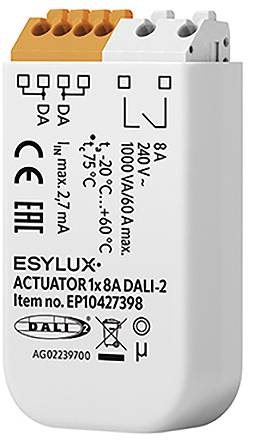

ESYLUX ACTUATOR 1x8A DALI-2 Switch actuator
EAN:
Part number:
Item no:
Product type
Switch actuator
Type
ACTUATOR 1x8A DALI-2
Output current (typ.)
0.003 A
UKCA
yes
Technical specifications
- Rated current 0.003 A
- Protection class (IP) IP20
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Suitable for C-Load: Yes
- Type
ACTUATOR 1x8A DALI-2
- Product type
Switch actuator
- Output current (typ.)
0.003 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549236 ESYLUX ACTUATOR 1x8A DALI-2 Switch actuator
Description
DALI-2 ACTUATOR with integrated relay contact for DALI-2 commands in accordance with IEC 62386-208 (DALI device type 7, DT7). With the DALI-2 ACTUATOR, loads without DALI input are integrated into the DALI line. The functionality is specified using the DALI-2 control unit. Switching on takes place in the relay-zero crossing (zero-crossing switching). Power is supplied via the DALI bus, no additional power supply is required.
