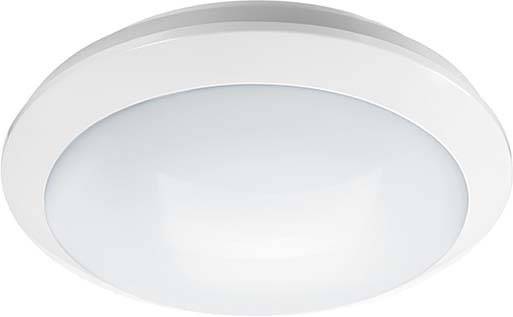

ESYLUX ALMAWCL #EO10850301 EO10850301 LED bulkhead light LED 16 W LED (monochrome) White
EAN:
Part number:
Item no:
Highlights & Details
ESYLUX LED wall and ceiling lamp 3000K IP65 MD ALMAWCL #EO10850301
- Power= 16 W
- Total luminous flux= 1450 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Connection type: Plug-in terminal
- Type of wiring: Suitable for through-wiring
- Operating device: LED operating device current-controlled
- Color rendering index CRI: 80-89
- Suitable for installation: Yes
- Conductor cross-section 2 mm²
- Light output 90 lm/W
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With light sensor: Yes
- Number of pins: 4
- Product type
LED bulkhead light
- Operating voltage
240 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
- Rating per bulb
16 W
16 W
- Light features
Ceiling mount option
Suitable for wall mounting
Incl. motion detector
- Radiation angle
80°
- Protection class
II
IP65
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 300 mm x 87 mm
n.rel.
- Type
Circular
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
1450 lm
1450 lm
- Height
87 mm
- Depth
87 mm
- (Ø)
300 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296526 ESYLUX ALMAWCL #EO10850301 EO10850301 LED bulkhead light LED 16 W LED (monochrome) White
Description
LED round lamp. 16 W, light color 3000 K warm white. With increased protection class (IP65). With integrated high-frequency detector and additional switching output. Zero-crossing switching for relay protective switching. High light yield 100 lm/W. Simple wiring via plug-in terminal. Quick installation thanks to through-wiring.
