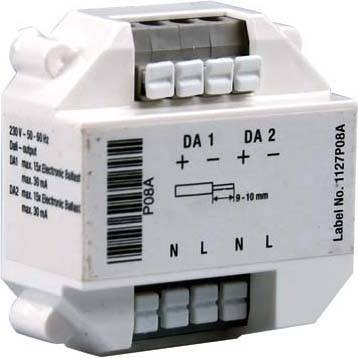

ESYLUX DALI EC10430008 Voltage supply CU PS DALI
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no.
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: Other
- Mounting type: Flush-mounted
- Width in division units: 0
- With LED display: no.
- Buffer voltage buffered: no.
- Number of integrated reactors: 1
- Number of lines to supply: 1
- Max. output current 200 mA
- Product type
Voltage supply
- Series
DALI
- Used at
Internal
IP20
- Operating voltage
16 V
4 W
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Factory colour
White
- Width
45 mm
- Height
25 mm
- Depth
48 mm
- Dim
(W x H x D) 45 x 25 x 48 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
37 g
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959667 ESYLUX DALI EC10430008 Voltage supply CU PS DALI
Description
Power supply with 200mA for supplying DALI operating devices or DALI control modules without a separate power supply. Suitable for installation in European flush-mounted sockets. Color white.. With temperature monitoring..
