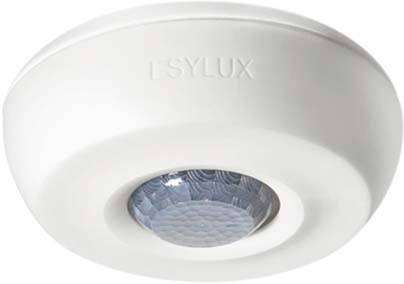

ESYLUX EB10430442 Surface-mount Ceiling-mount occupancy sensor 360 ° White IP40
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Surface-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: no.
- Low-creep/back-field monitoring: no.
- Mode selector: no.
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 3 m.
- Detection area Diameter on floor: 8 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 1
- Number of binary inputs: 0
- Switching capacity 0 W
- Min Power-on time 30 s.
- Max. duty cycle 720 min
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Surface-mount
- Voltage (max.)
31 V
- Twilight settings
5 - 2000 lx
- Factory colour
White
- Similar RAL
9010
IP40
- Type
Presence detector
- Weight
0
- Voltage (min.)
29 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965104 ESYLUX EB10430442 Surface-mount Ceiling-mount occupancy sensor 360 ° White IP40
Description
KNX ceiling-mounted detector with 360° detection range. Range of up to 8 m in diameter with a recommended mounting height of 3 m for comfort applications. Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Communication objects. - Light value output (2 bytes). - Status message. - Can be used as "Master" or "Slave". - KNX button control for light channels. - Full or semi-automatic. - Test mode. . Standard design as flush-mounted device Surface mounting possible Targeted suppression of areas using enclosed lens mask.
