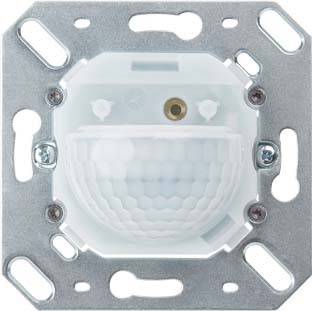

ESYLUX EB10430459 Flush mount Motion detector 180 ° Relay Multicolour IP40 Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: no
- Forced cut-off: no
- Animal - i.e up: yes
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 180°
- Optimum mounting height: 1.1 m
- Staircase monitoring: yes
- Bypass switch: no
- Max. The Front Range: 3 m
- Detection field diameter on floor: 16 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: no
- Adjustable threshold: yes
- With Signal Unit: no
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: no
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Color: Other
- RAL-number (similar): 9010
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/50 Hz.
- Min. Switch-on duration: 15 s
- Max. duty cycle 30 min
- Switch-off delay: 0 s
- Delay: 3600 s
- Detection angle horizontal 180°. .180
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- The light-intensity threshold: 5..2000 lx
- Max. switching capacity 2300 W
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 800 A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Depth: 70 mm
- Installation width: 42 mm
- Mounting depth: 23 mm
- Installation length: 42 mm
- Installation diameter: 42 mm
- Min. The depth of the device box: 23 mm
- Product type
Motion detector
- Detection angle
180°
8 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
15 s - 30 min
- Factory colour
Multicolour
- Similar RAL
9010
IP40
- Operating temperature
0 to 50 °C
- Type
Motion detector
- Length
42 mm
- Width
70 mm
- Height
30 mm
- (Ø)
42 mm
- Dim
(Ø x H) 42 mm x 30 mm
- features
Non-stop lighting mode
- Depth
70 mm
- Recess length
42 mm
- Recess width
42 mm
- Recess depth
23 mm
- Recess diameter
42 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
70
Movement sensor
TRUE
53 mm
70 mm
23 mm
50-50 MHz
TRUE
60 mm
800 A
9010
230-230 V
FALSE
FALSE
23
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959690 ESYLUX EB10430459 Flush mount Motion detector 180 ° Relay Multicolour IP40 Non-stop lighting mode
Description
Wall Motion detector with 180° detection range. 16 A high power relay (tungsten-feed contact). Especially suitable for switching capacitive loads, such as Ebs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Can be programd via remote control, for example Continuous light ON/OFF and automatic einlesefunktion of the current light value. Cover frame in 5 different colors and brand switch compatible, thus replaces every conventional switch. Design in IP 40 suitable for damp rooms, garages, cellars exits. Vandalism-inhibiting cover with stainless steel screws (accessories). Prevention of unwanted switch, for example by small animals, by hiding the vertical detection range with the help of enclosed cap. Universal surface-mounting frame IP20/IP44 with 3 compartments membrane cable entry. Integrated pulse function for controlling staircase lighting timer or signal devices and application for Building Technology/SPS.
