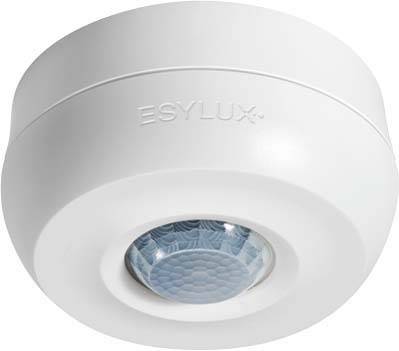

ESYLUX EB10430473 Surface-mount Ceiling-mount occupancy sensor 360 ° Relay White IP40
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: no
- Max. Presence Range: 12,58 m²
- Max. The Front Range: 3 m
- Detection field diameter on floor: 8 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: no
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 30 s
- Delay: 300 s
- Detection angle horizontal 180°. .360
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Inrush Current: 78A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
5 s - 30 h min
- Factory colour
White
- Similar RAL
9010
IP40
- Operating temperature
0 to 50 °C
- Type
Presence detector
- Height
50 mm
- (Ø)
99 mm
- Dim
(Ø x H) 99 mm x 50 mm
- Weight
0.18
- Max. temperature
50 °C
- Min. temperature
0 °C
Presence detector
TRUE
50 mm
50-50 MHz
101 mm
FALSE
78 A
9010
230-230 V
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956996 ESYLUX EB10430473 Surface-mount Ceiling-mount occupancy sensor 360 ° Relay White IP40
Description
Presence detector with 360° detection zone for the ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m. 10 A high power relay. Zero-voltage switching: Extension of the life span of relay and bulb. in case of electronic ballast devices (e.g. fluorescent lamps, LED) by gentle switch in the zero crossing.. Factory settings for an immediate readiness for operation. Automatic lighting control, depending on the presence and natural light. Additional input. Remotely controllable Standard version as surface-mounted device with special surface for extended wiring area, ceiling installation mounting with accessories. The expansion of the detection area by parallel circuit. Selective suppression of areas by means of enclosed lens mask.
