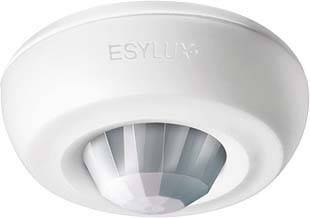

ESYLUX EB10430848 Surface-mount Ceiling-mount motion detector 360 ° Relay White IP40
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: no
- Max. The Front Range: 4 m
- Detection field diameter on floor: 24 m
- Suitable for wireless transmission: no
- Remote control: no
- With remote control: no
- The sensitivity can be set: no
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .360
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Inrush Current: 78A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Product type
Ceiling-mount motion detector
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V AC
- Twilight settings
5 - 1000 Lux
- Time settings
5 s - 30 h min
- Factory colour
White
- Similar RAL
9010
IP40
- Operating temperature
0 to 50 °C
- Type
Motion detector
- Height
53 mm
- (Ø)
101 mm
- Dim
(Ø x H) 101 mm x 53 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958336 ESYLUX EB10430848 Surface-mount Ceiling-mount motion detector 360 ° Relay White IP40
Description
Motion detector with 360° detection range for the ceiling mounting. Range of up to 24 m in diameter at a recommended mounting height of 3 m for use in small rooms and continuity areas with very little or no daylight share. 10 A high power relay. Zero-voltage switching: Extension of the life span of relay and bulb. in case of electronic ballast devices (e.g. fluorescent lamps, LED) by gentle switch in the zero crossing.. Factory settings for an immediate readiness for operation. Automatic lighting control Additional input. Standard version as surface-mounted device, ceiling installation mounting with accessories. The expansion of the detection area due to the parallel connection. Selective suppression of areas by means of enclosed lens mask.
