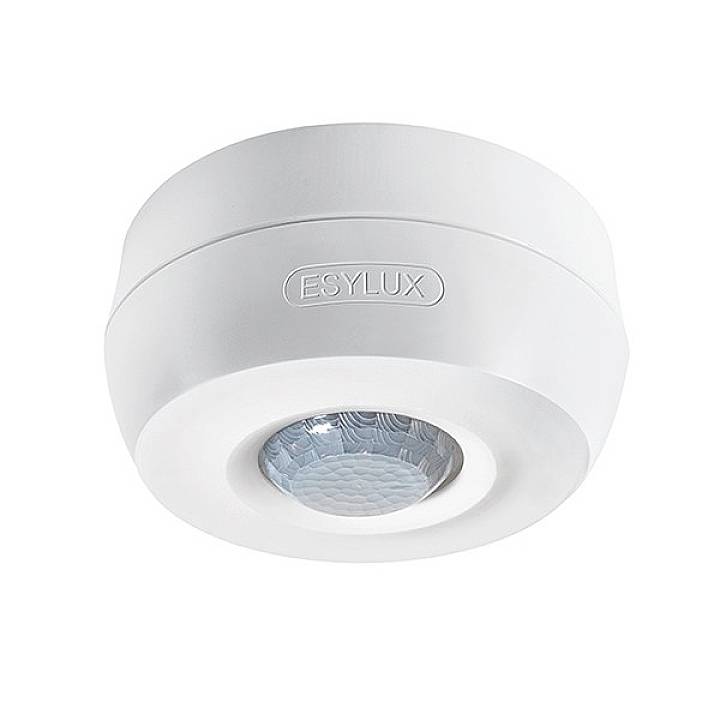

ESYLUX EB10431302 Ceiling, Surface-mount Ceiling-mount occupancy sensor 360 ° White IP54
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredForced switching: YesForced shutdown: YesLow-creep/back-field monitoring: YesOptimum mounting height: 3 m.Max. Range frontal: 3 m.Detection area Diameter on floor: 8 m.Adjustable response sensitivity: YesAdjustable response brightness: YesWith signal unit: YesConnection type: Screw terminalMaterial: PlasticSwitch-off delay: 300 s.Switch-on delay: 30 s.Suitable for C load: YesMax. Inrush current 78 A.Max. Attendance: 12.58 m²
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Outdoors
Indoors
- Mounting type
Ceiling
Surface-mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Time settings
15 s - 30 min
- Factory colour
White
IP54
- Type
Mat
- Length
50 mm
- (Ø)
101 mm
- Dim

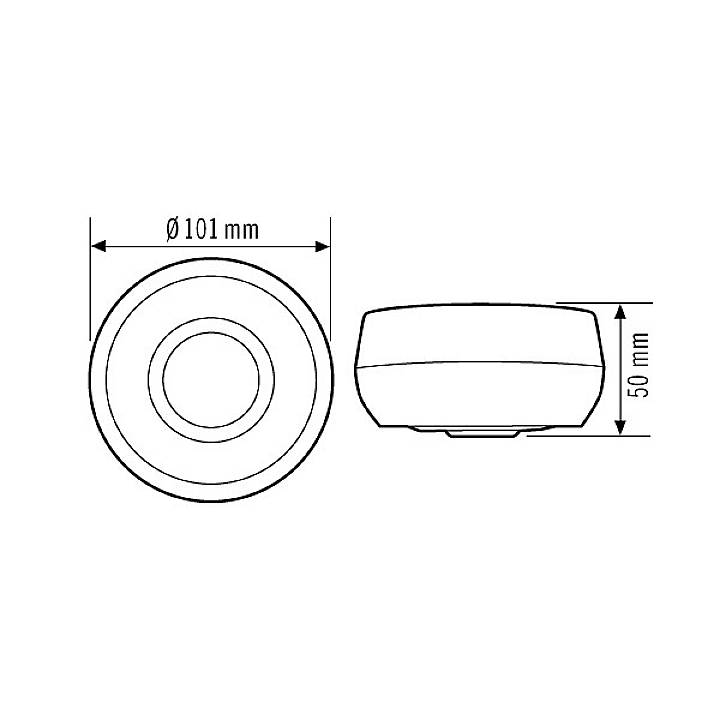

(Ø x L) 101 mm x 50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2599394 ESYLUX EB10431302 Ceiling, Surface-mount Ceiling-mount occupancy sensor 360 ° White IP54
