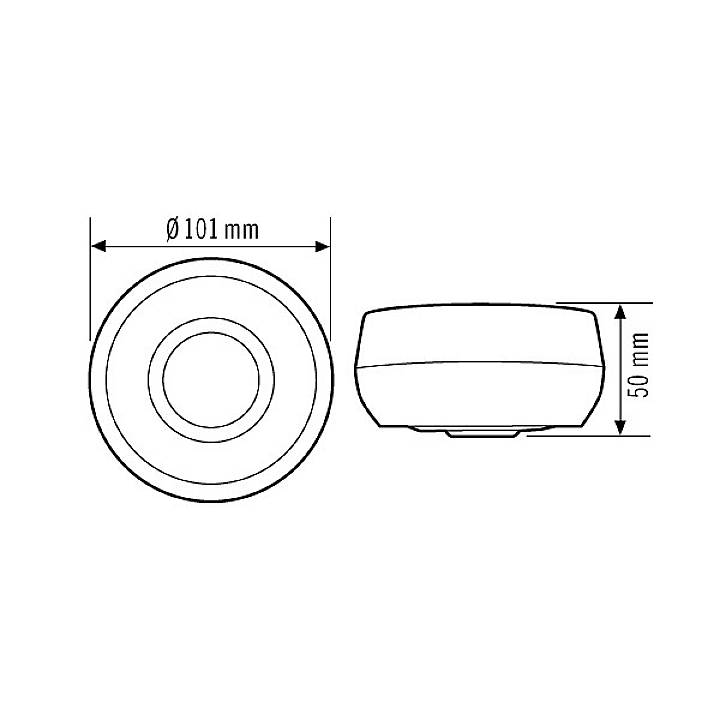

Drawing of a circular object with a diameter of 101 mm and a height of 50 mm, top view and side view.

1/2

ESYLUX

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Sensor type: Passive infraredForced switching: YesForced shutdown: YesLow-creep/back-field monitoring: YesOptimum mounting height: 3 m.Max. Range frontal: 3 m.Detection area Diameter on floor: 8 m.Adjustable response sensitivity: YesAdjustable response brightness: YesWith signal unit: YesConnection type: Screw terminalMaterial: PlasticSwitch-off delay: 300 s.Switch-on delay: 30 s.Suitable for C load: YesMax. Inrush current 78 A.

Factory colour: White

(Ø): 101 mm

Length: 50 mm

: IP54

Type: Mat

Mounting type: Ceiling
Surface-mount

Detection angle: 360°

: 4 m

Operating voltage: 230 V AC

Used at: Indoors

Time settings: 15 s - 30 min

Twilight settings: 5 - 1000 lx

Switching capacity: 2300 W

Weight: 0

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 2607440 ESYLUX EB10431340 Ceiling, Surface-mount Ceiling-mount motion detector 360 ° White IP54
