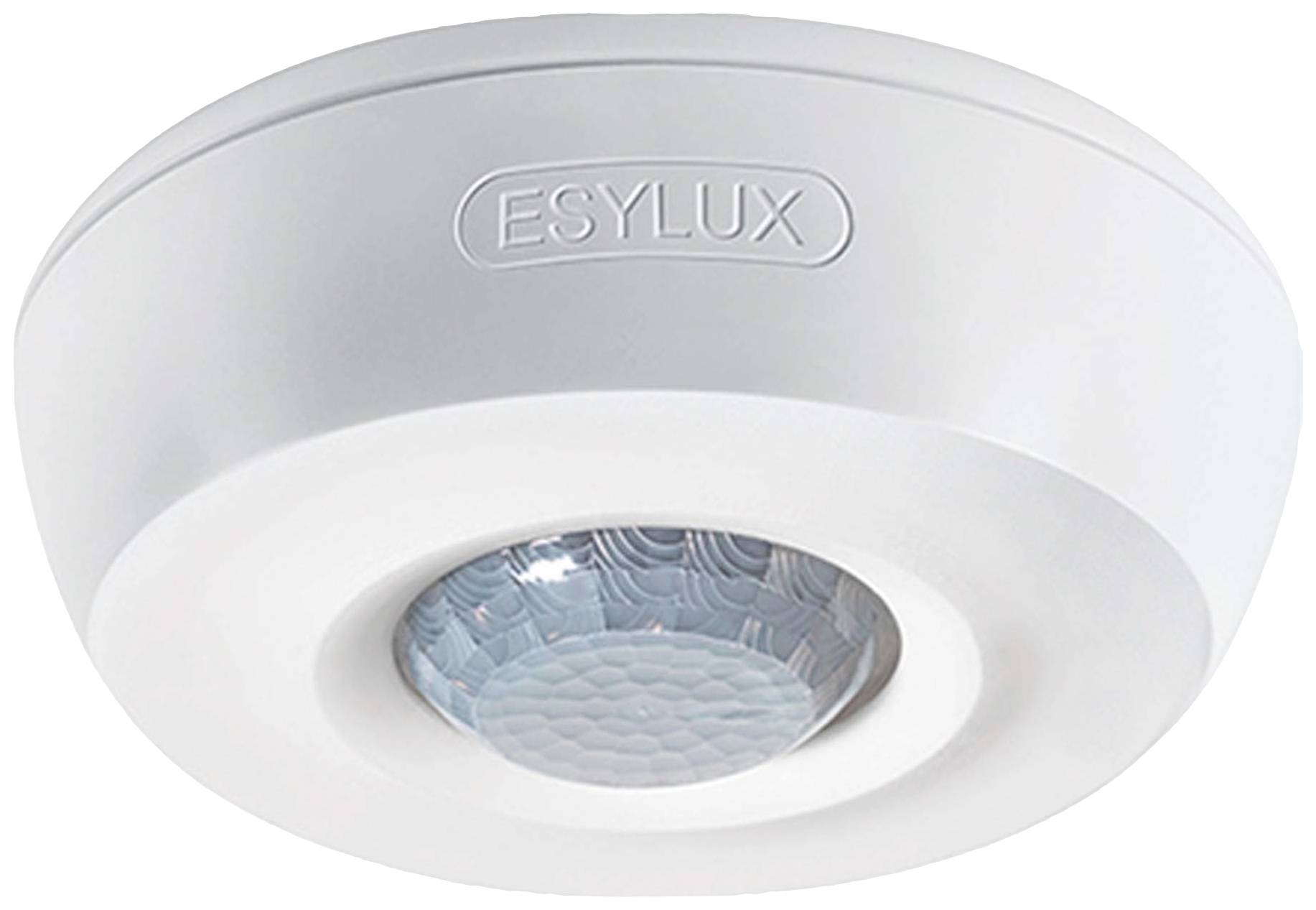

ESYLUX EB10431357 Ceiling, Surface-mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredConstant light control: YesLow-creep/back-field monitoring: YesOptimum mounting height: 3 m.Max. Range frontal: 3 m.Detection area Diameter on floor: 8 m.Adjustable response brightness: YesDimming function with dimming insert: YesConnection type: Plug-in terminalMaterial: PlasticSwitch-off delay: 300 s.Switch-on delay: 30 s.Max. Attendance: 12.58 m²
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Ceiling
Surface-mount
- Operating voltage
22 V DC
- Twilight settings
5 - 2000 lx
- Time settings
30 s - 30 min
- Factory colour
White
IP20
- Operating temperature
0°C - 50 °C
- Type
Mat
- Length
33 mm
- Height
33 mm
- (Ø)
101 mm
- Dim

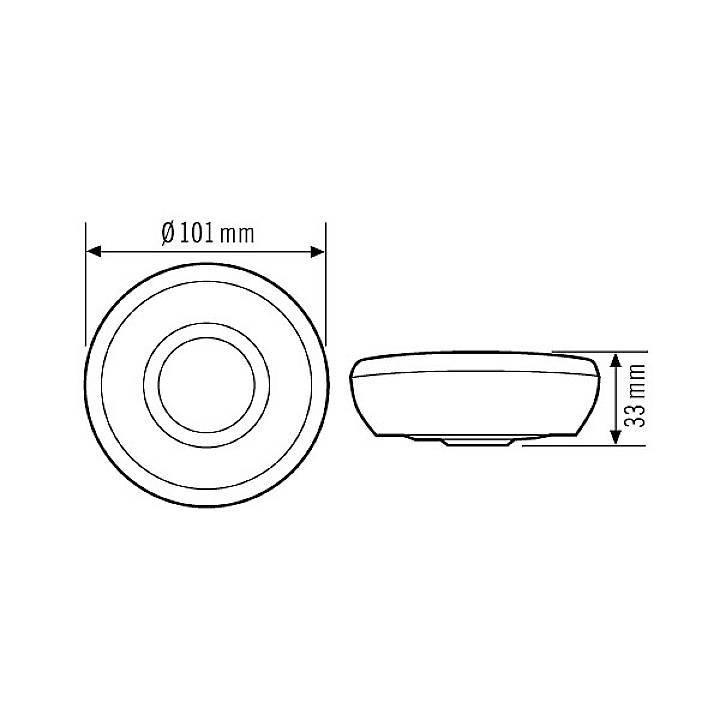

(Ø x H) 101 mm x 33 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2607437 ESYLUX EB10431357 Ceiling, Surface-mount Ceiling-mount occupancy sensor 360 ° White IP20
