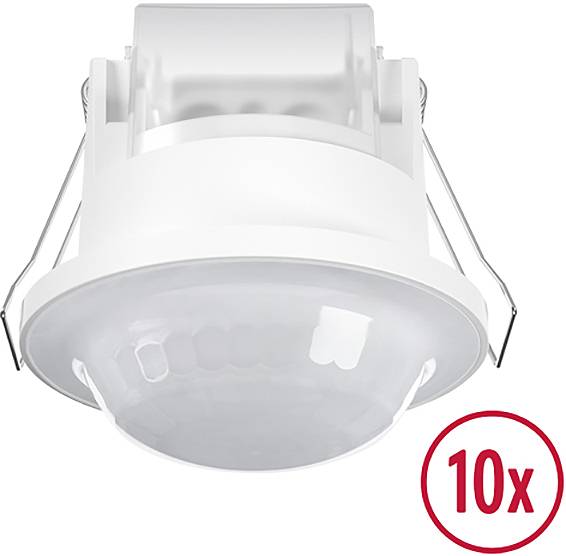

ESYLUX EB10431791 Flush mount Motion detector 360 ° Relay
EAN:
Part number:
Item no:
Technical specifications
- Height: 79 mm
- Mounting depth: 57 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP23
- Surface protection: Untreated
- Transparent: Yes
- Design of surface: Matt
- Nominal voltage: 230 V
- Connection type: Plug-in terminal
- Diameter 79 mm
- Voltage type AC
- Frequency: 50 Hz
- Max. Switching capacity LED 400 W
- Max. switching capacity 2300 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 57 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 62 mm
- With connection cable: No.
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 4 m.
- Max. Range: Front 2.5 m
- Capturing field Diameter on floor: 8 m.
- Horizontal coverage angle: 180..360°
- Staircase monitoring: No.
- Min Switch-on time 15 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: No.
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: No.
- Dimming function with dimming element: No.
- Animal slope: No.
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Rear field monitoring: No.
- Scan angle 360°
- Bridge switch: No.
- Remote control: Yes
- With signal unit: Yes
- Switch-off delay 0 s.
- Response brightness 10 - .2000 Lux
- Temperature: -25..50°C
- Max. Power surge 78 A
- Alarm function: No.
- With acoustic sensor: No.
- Switch-on delay 30 s.
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Number of switching zones: 1
- Product type
Motion detector
- Detection angle
360°
8 m
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
400 W
- Similar RAL
9010
- Height
79 mm
- (Ø)
79 mm
- Dim
(Ø x H) 79 mm x 79 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548955 ESYLUX EB10431791 Flush mount Motion detector 360 ° Relay
Description
Motion detector in a set with 360° detection angle for ceiling installation. Range of up to 8 m in diameter with a recommended mounting height of 2.5 m for use in small rooms and passage areas with very less or no daylight. 10 A high power relay. Zero-voltage switching: Extension of the life-span of relays and bulbs in case of electronic ballasts (e.g. fluorescent lamps, LED) by switching gently in the zero-crossing. Factory setting for immediate use. Simple configuration via remote control or with ESY-Pen and ESY-APP. Automatic light control Additional button input. Extension of the detection range through parallel connection.
